Installing Fence / Miter Gauge
(Optional Accessory)
Your Moto-Saw can use a combination fence
and miter gauge.
For use as a miter gauge:
1. To use the miter gauge slide the metal T
section into the track in the surface of the
saw station, Fig. 12.
2. Twist the knob on the miter gauge to
adjust the angle of the miter gauge and
tighten at the desired angle, Fig. 13.
For use as a fence:
1. Install the miter gauge as described
above.
2. Adjust the miter angle to 90° then slide the
miter gauge to the desired fence position,
Fig. 14.
3. Rotate the blue lever on the side of the
saw station forward to lock.
To remove, reverse procedure.

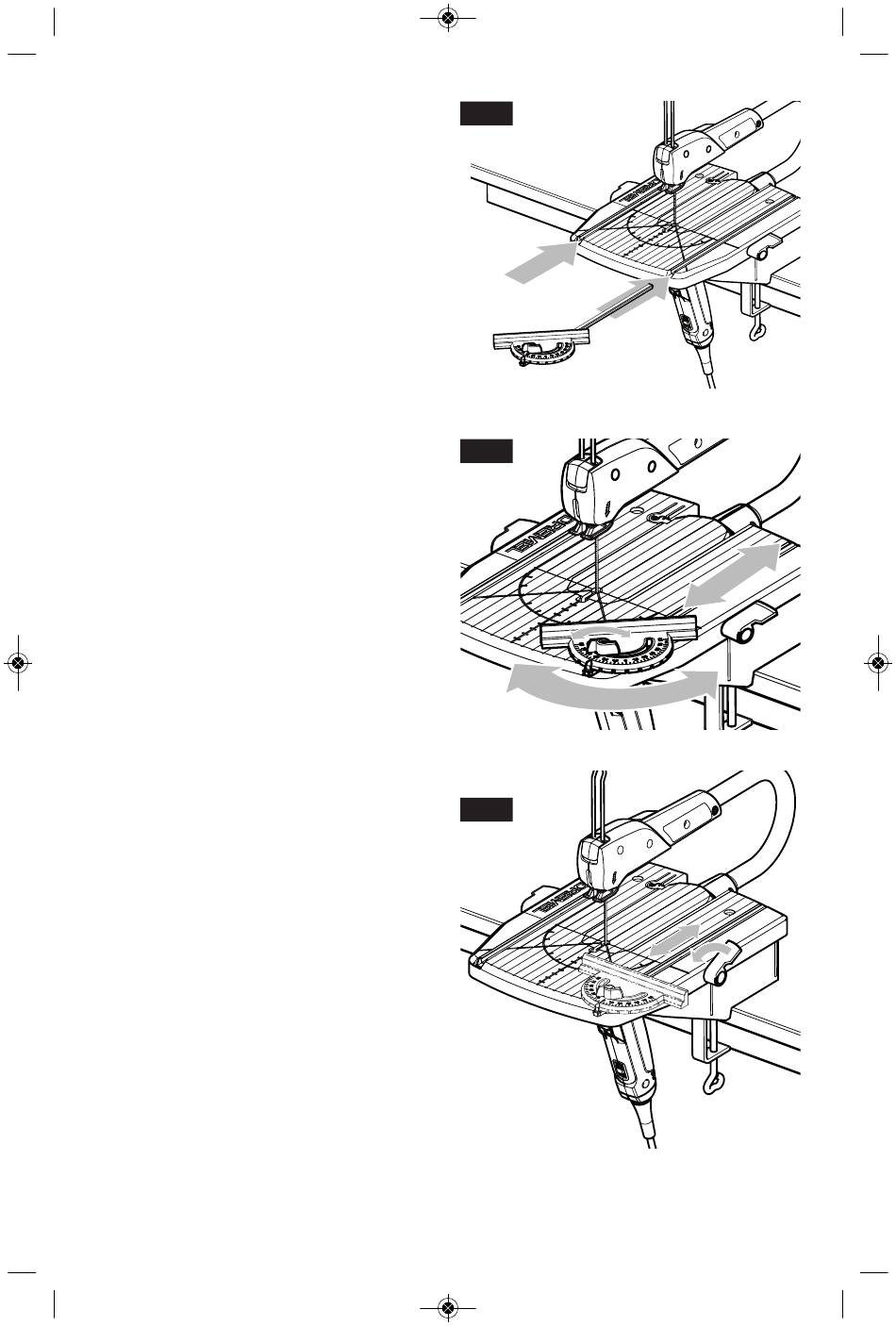

FIG. 12
