Chevrolet Performance LT4 E-ROD Directives D'emploi page 7

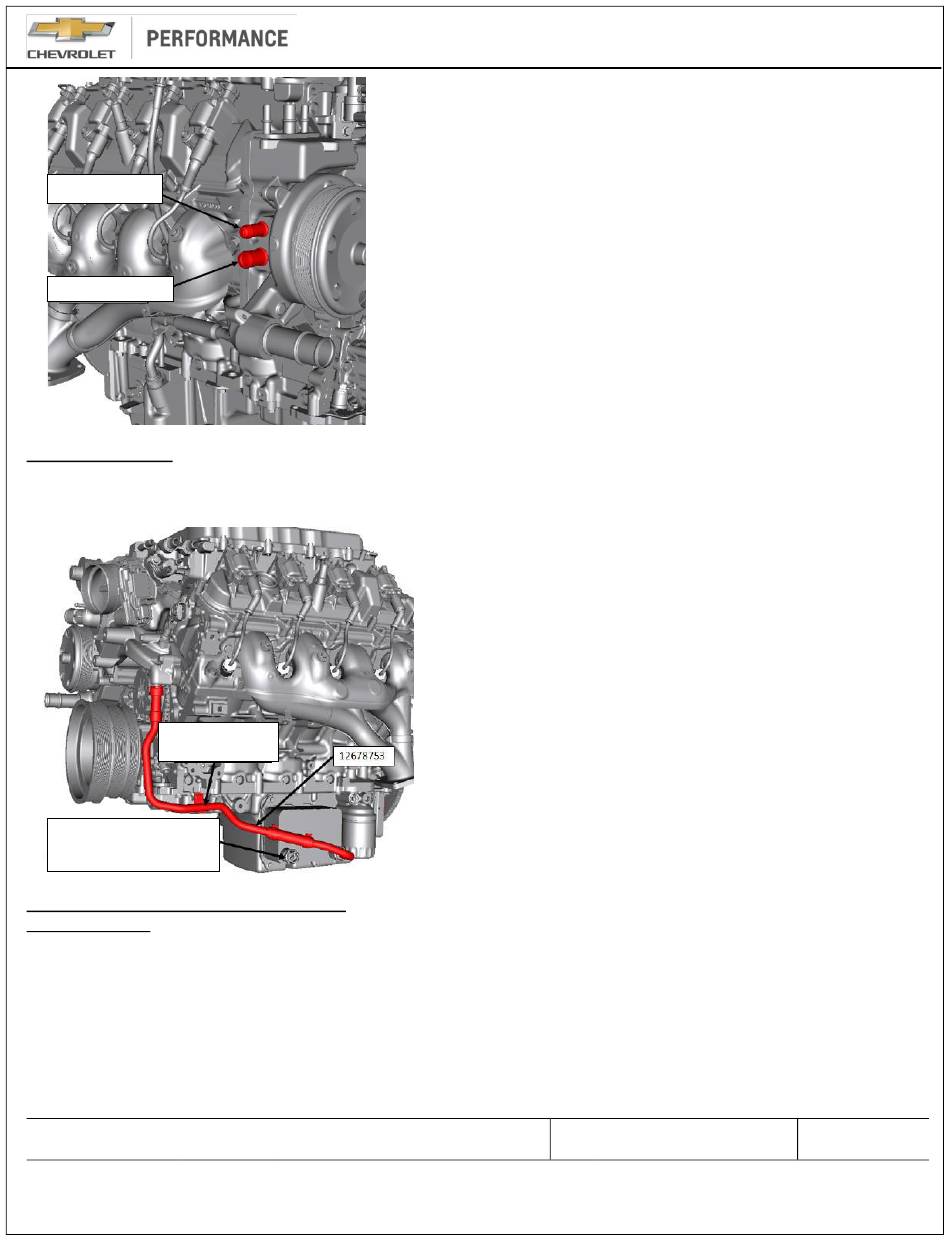

HEATER INLET PIPE
HEATER OUTLET PIPE
Engine Oil Cooling
The engine as delivered comes with a liquid to liquid engine oil cooler. Engine oil is pumped thru the cooler and engine coolant is pumped thru the
cooler, to transfer the engine oil heat into the engine coolant. The engine coolant should route to the lower portion of the radiator, or inlet hose of the
coolant pump. Heat is then removed by the engine radiator. Reference the 2017 Camaro or 2017 Cadillac CTS-V for additional parts.
COOLER HOSE AND
ATTACHMENT BOLT
ATTACH TO LOWER RADIATOR
HOSE FOR PROPER COOLANT
FLOW
Exhaust/Catalytic converter installation
Exhaust Manifolds
It is recommended that you use the provided exhaust manifolds or similar OEM LT Engine style Exhaust Manifolds to maintain the emission compliance
of the LT4 E-ROD.
Catalytic Converters
NOTE: It is critical that the Catalytic Converters are mounted per the instructions below.
Oxygen Sensors
NOTE: It is critical that the Oxygen Sensors are mounted per the instructions below. The exhaust system MUST be properly sealed – any leak near the
sensors (upstream or downstream) can cause incorrect operation of the fuel control system. Vehicle performance and/or drivability may be affected if
sensors are not mounted as recommended or if an exhaust leak exists. Leak check the exhaust system to ensure adequate sealing (even small leaks can
affect fuel control).
LT4 E-ROD Instruction Sheet
PART No.
REV 04DE19
19370613
SHEET
7 of 83
