Kit Contents
(Cont.)
DESCRIPTION
TUBE ASM-PVC (TO FRESH AIR DUCT)
TUBE ASM-EVAP EMIS CNSTR PURGE
HOSE ASM-ENGINE OIL COOLER
BOLT-ENGINE OIL COOLER HOSE
ENGINE CONTROLLER KIT (includes below)
INSTRUCTION SHEET
LT1 E-ROD ENGINE HARNESS
MASS AIR FLOW SENSOR
MASS AIR FLOW SENSOR BRACKET
MAF BOLT/SCREW
MAF WASHER
ACCELERATOR PEDAL
OXYGEN SENSOR (FRONT)
OXYGEN SENSOR (REAR)
OXYGEN SENSOR MOUNTING BOSS
FUEL LINE PRESSURE SENSOR
FUEL PUMP POWER MODULE
BOLT/SCREW M8x1.25x252
BOLT/SCREW M8x1.25x302
EMBLEM
LABEL – EMISSION CERTIFICATION
ENGINE CONTROL MODULE
INSTALLATION INSTRUCTIONS:
Engine installation
This crate engine is assembled using brand new, premium quality components. It is based off of the Chevrolet Generation V LT4 Series architecture
from a 2017 Chevrolet Camaro but may have updated parts from later model years and utilizes such modern technologies as individual ignition coil per
cylinder and direct fuel injection. Due to the wide range of small block applications,
if you are retrofitting a previous small block application, you may encounter installation differences between your crate engine assembly and the
previous version. These differences may require modifications or additional components not
Engine
The engine has a label unique to the E-ROD package. It is located on the front Left (driver's) side of the cylinder head. This label is necessary to identify
the engine as part of the E-ROD package.

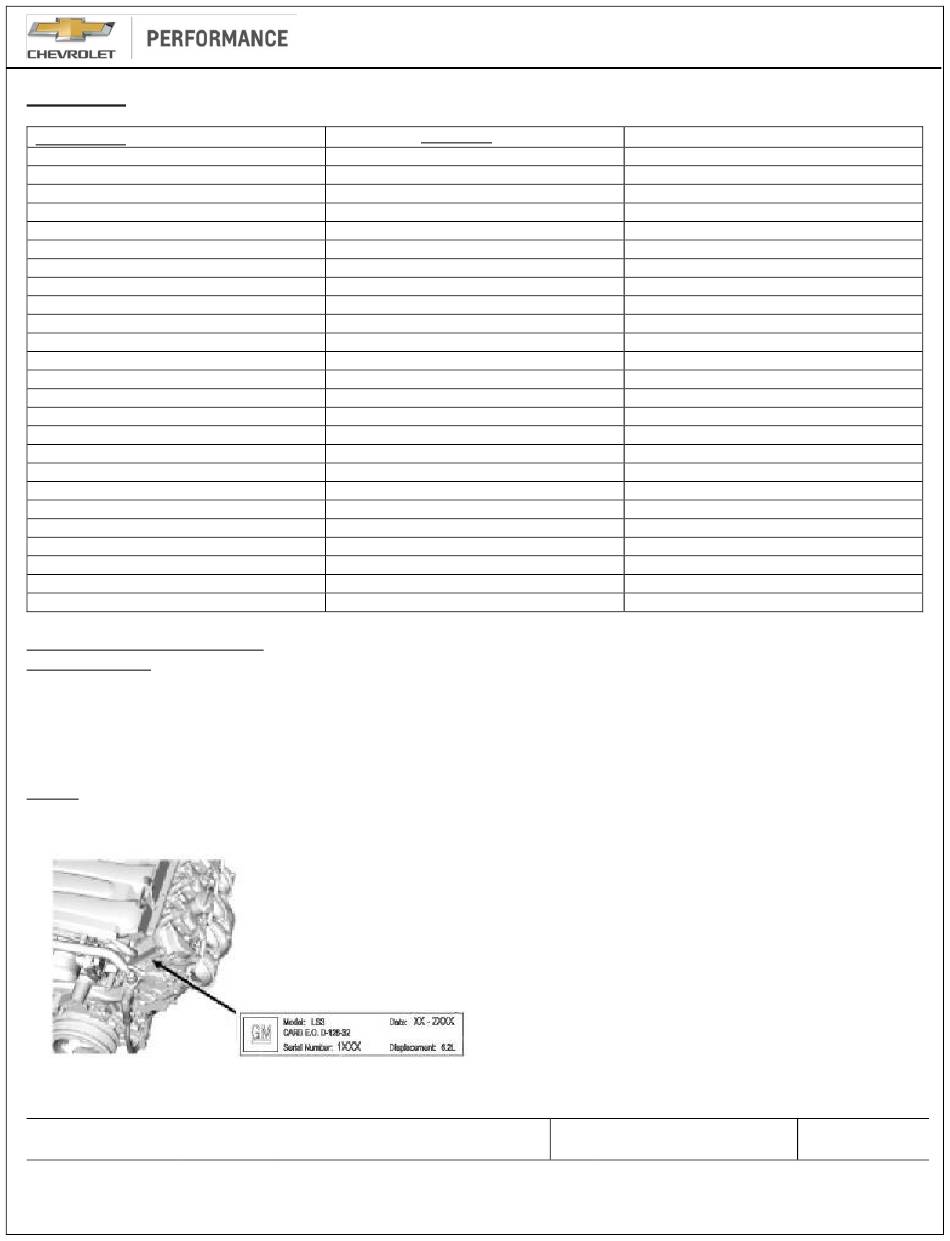

LT4 E-ROD Instruction Sheet
QUANTITY
Note:
LT4 4L/T56 label shown. For 8 speed
applications, the CARB E.O. is
D-126-51
REV 04DE19
1
12687313
1
12688706
1
12678753
1
11588712
1
19356279 (for 4L or T56)
19370617 (for 8 speed auto trans)
1
19370613
1
19367448
1
23262344
1
19166574
2
19300176
2
19300177
1
10379038
2
12655677
2
12643708
4
15156588
1
13516496
1
23382215
1
1588564
1
1562004
1
22942442
1
19370767 (for 4L or T56)
19417892 (for 8 speed auto trans)
1
19370614 (for 4L or T56)
19370618 (for 8 speed auto trans)
PART No.
19370613
SHEET
3 of 83
