Elpro15
PLUS
GB
The electronic control panel Elpro 15 Plus, new generation, is designed to operate the sliding gate operator Girri 130. Power
supply is 230V 50Hz single-phase. Built in full compliance with BT 93/68/CE Low Voltage and EMC 93/68/CE Electro-Magnetic
Compatibility Regulations. Fitting operations are recommended by a qualified technician in conformity to the existing safety
standards.
The manufacturing company declines any responsability for incorrect handling and application; also, it reserves the right to
change or update the control panel any time.
PLEASE NOTE:
- The control panel is fitted inside Girri 130.
- Fit the mains to the control panel with a 0.03A high performance circuit breaker.
- Use 1.5mm² section wires for voltage supply, electric motor and flashing lamp.
Maximum recommended distance 50m.
Use 1mm² section wires for limit switches, photocells, push-buttons/key-switch and accessories.
- Bridge terminals 1 and 2 if no photocells are required.
- Bridge terminals 3 and 6 if no key- or push-button switches are required.
N.W: To fit extra accessories such as lights, CCTV etc. use only solid state relays to prevent damages to the microprocessor.
Dip-Switch:
1= ON. Photocells. Stop while opening
2= ON. Radio. No reversing while opening
3= ON. Automatic closing
4= ON. Preflashing activated
5= ON. Radio. Step by step. Stop in between
6= ON. Dead Man Control (Dip 4=OFF and Dip 3=OFF)
7= ON. No lamp on during dwell time
8= OFF. No function
In case of failure of the panel:
- Check voltage supply. It must be 230V 50Hz single-phase
- Check fuses
- Check photocells if contacts are normally closed
- Check that no voltage drop has occurred from the control panel to the electric motor

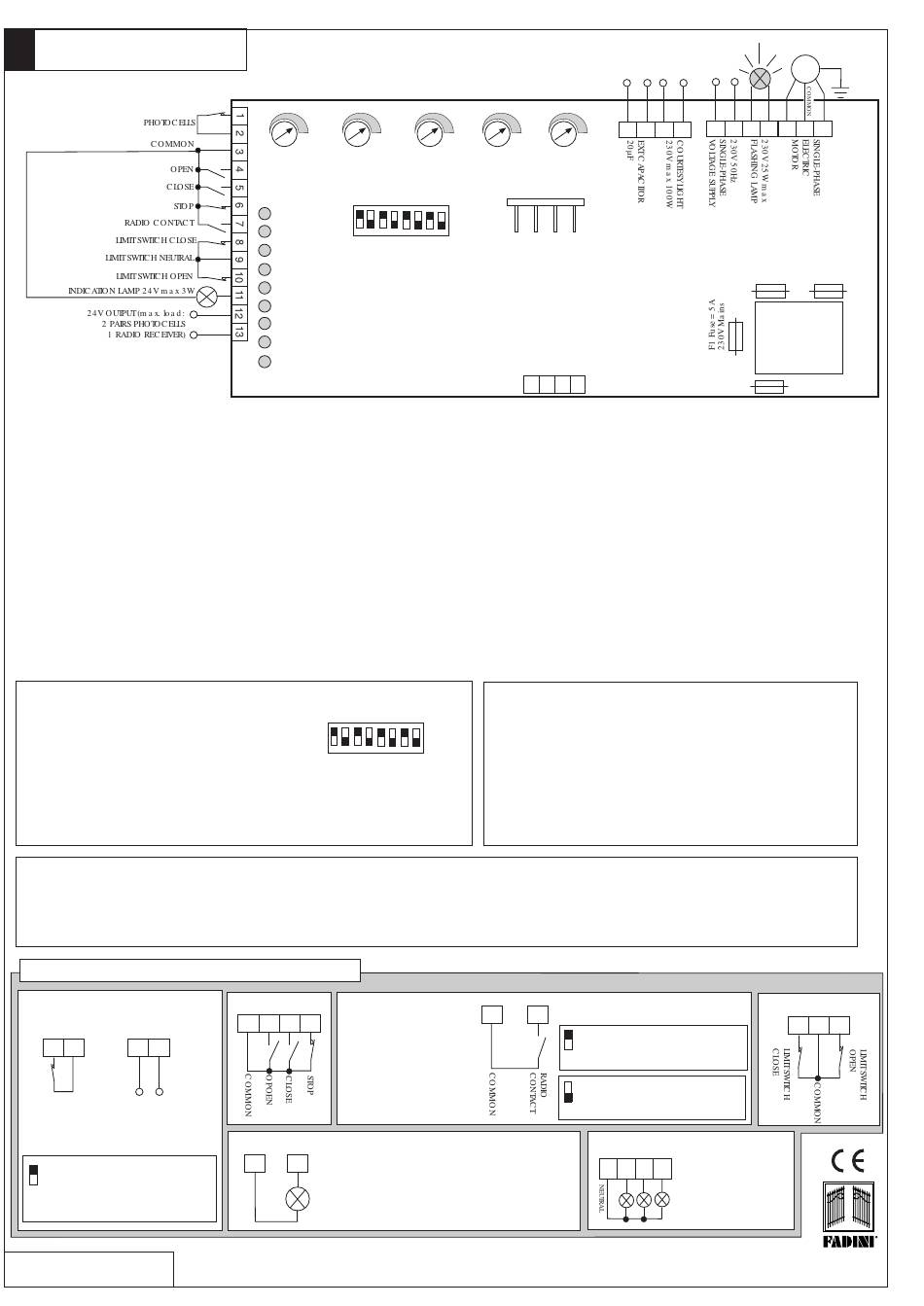

LOW VOLTAGE ELECTRICAL CONNECTIONS
Photocells and Safety
Edge:
1 2
12 13
PHOTOCELLS
24V OUTPUT (MAX. LOAD:
AND SAFETY
2 PAIRS PHOTOCELLS
EDGE
1 RADIO RECEIVER)
DIP-SWITCH 1:
ON: Photocells stop gate while opening,
reverse it once obstacle is removed
OFF: Photocells do not stop gate while
1
opening, reverse it in case of an
obstacle
Drwg. No. 4136
- -
+ +
T1
MOTOR RUN T2 T3
DWELL TIME
TIME
from 2 up
OPEN/CLOSE
to 255s
from 2 up to
255s
DIP-SWITCH
L1
L2
1 2 3 4 5 6 7 8
L3
L4
L5
L6
L7
L8
L9
ELPRO 15 PLUS
DIP-SWITCH
4 5 6 7 8
1 2 3
Button switch:
Radio Contact:
3 4 5 6
- Open/Close (Standard)
- Travel reversing on
pulsing
- Step by step
24V 3W Indication Light:
3
11 Light ON = Open gate
Light OFF = Close gate
Flashing (fast) 0.5s= Closing gate
Flashing (normally) 1s= Opening gate
Flashing (slowly) 2s= gate is stopped
- - -
+ + +
COURTESY T4 PEDESTRIAN T5 MOTOR
LIGHT from 2
OPENING TORQUE from
up to 255s 40% to 100%
from 3 up
to 30s
ON
OFF
RADIO PLUG-IN
CARD
CONNECTOR
PULIN 3
26 27 28 3
Led Status Indication:
L1= 230V 50Hz power supply. Alight
ON
L2= Photocells, if obstructed light goes off
L3= Open. Alight whenever an Open pulse is given
OFF
L4= Close. Alight whenever a Close pulse is given
L5= Stop. It goes off on pulsing Stop
L6= Radio. It goes on by pressing a transmitter button
L7= Gate Status; it flashes on gate opening
L8= Limit switch Close; off when gate is closed
L9= Limit switch Open; off when gate is open
DIP-SWITCH 2 and 5 (NEVER set BOTH of them
3 7
ON at the same time):
ON: Gate is not reversed while opening
OFF: Any pulse reverses the gate
2
ON: Step by step. Stop in between
OFF: Standard operating mode
24 23 19
22 21 20 18 17
F3 Fuse=315mA
Transformer
Protection
Push Button Switch Pulin 3:
26 27 28 3
Led to indicate
status of Open
- Stop - Close
switches
M
16 15 14
F2 Fuse=5A
230V Mains
TRANSFORMER
F4 Fuse=630mA
24V Protection
Limit switch:
8
9 10
the gate opener
Made in Italy
