Wiring Diagrams

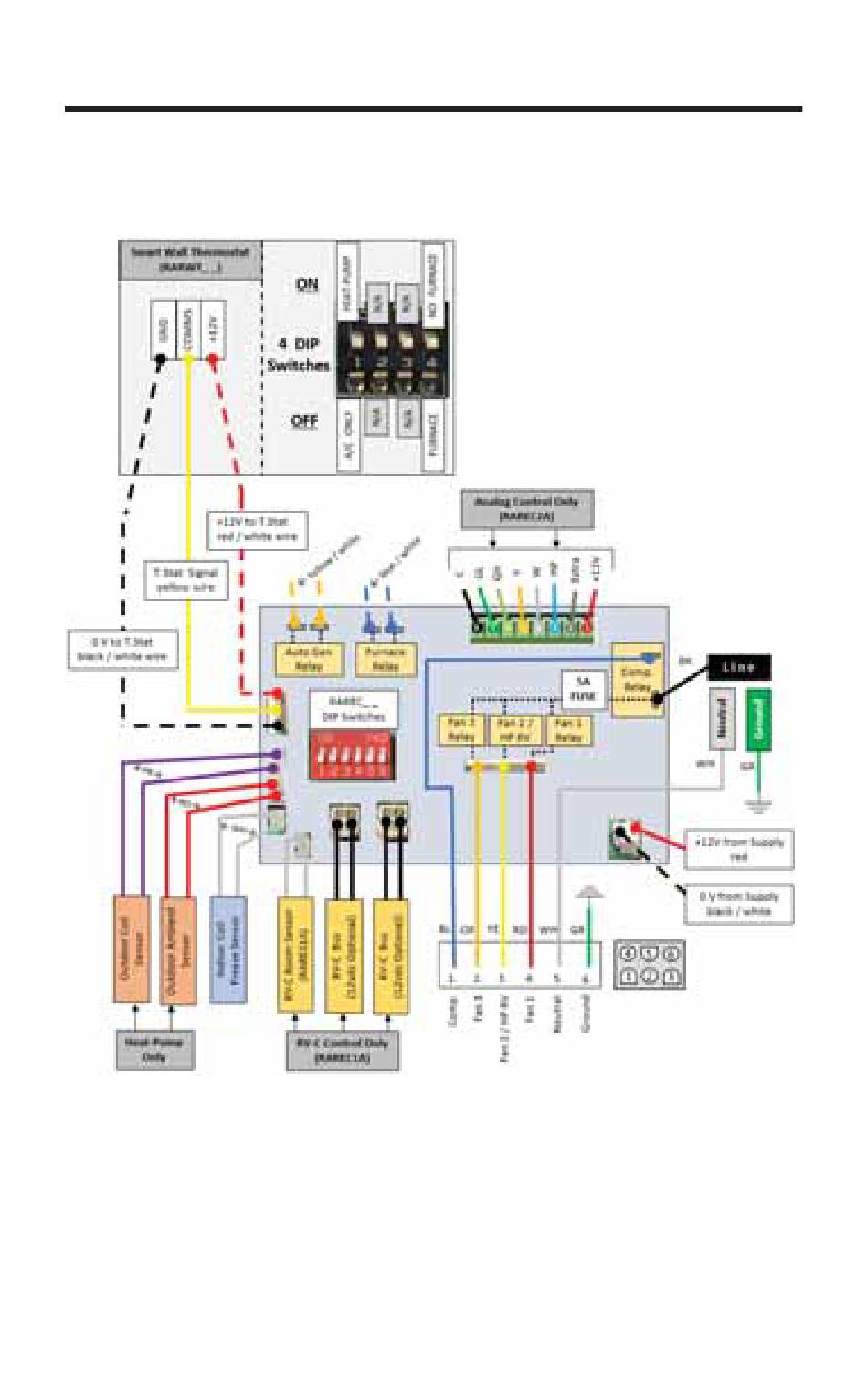

Table 1: terminals for three wires 1-stage heat / 1-stage
cool system.
49-5000400 Rev. 4
RARWT_ _DIP Switches
#1 selects between Cool only and
Heat-Pump
#2 is not used
#3 is not used
#4 is used to disable Furnace Mode
selection.
This is for installs where a furnace is not
connected to the RVAC control.
