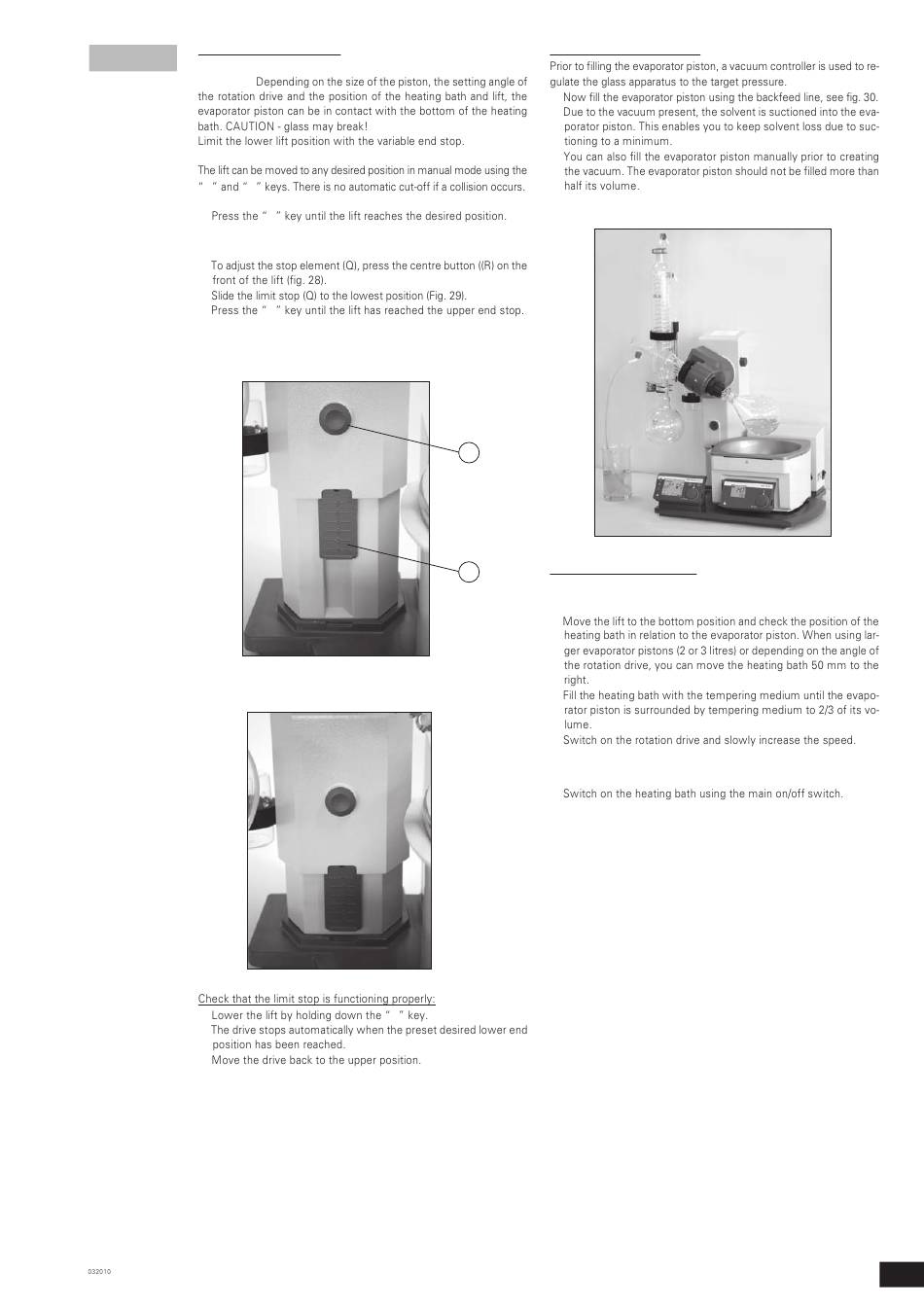

IKA RV 10 control Mode D'emploi page 52

Setting the lower end stop
CAUTION!
 


Note: The evaporator piston should be 2/3 immersed in the heating
bath.




Note: The path is limited from 0 – 6 cm.



Filling the evaporator piston



Note: CAUTION! The maximum allowed load (evaporator piston
and contents) is 3 kg.
R
Setting up the heating bath
Q
Refer also to the operating instructions for the HB 10 heating
bath!

Fig.28


Note: Avoid creating waves.

Note: Avoid stress on the glass due to different evaporator piston
and heating bath temperatures when lowering the evaporator pi-
ston into the heating bath!
Note: If non-original accessories are used that are not supplied by
IKA, then it is possible that the 50 mm travel range provided by the
heating bath will not be sufficient. This applies in particular when
using 3 L evaporator flasks with foam brake.
Use the IKA RV 10.3000 mounting plate to extend the heating bath
travel range by 150 mm.
Fig.29

Fig. 30
53
