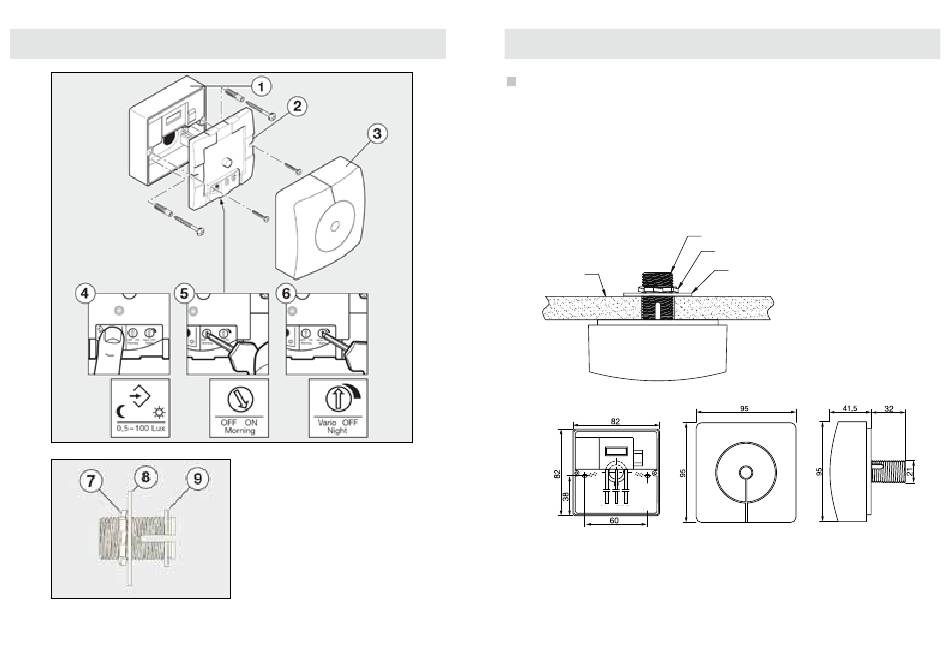

Product Overview
www.steinel.net
(800) 852-4343
1 - Back housing
2 - Front housing
3 - Decorative cover
4 - Light level programming button
5 - Morning ON/OFF setting
6 - Night economy mode setting
7 - Lock nut
8 - Washer
9 - Snap in Threaded nipple
Mounting

Placement guidelines

• Place sensor near the source
of natural light where light
level is between .05 and 100
footcandles at the time of day
the light should be switched.
Ceiling tile
Ceiling tile
wires 200mm
Threaded nipple Threaded nipple
Locknut
Locknut
Washer
Washer
