Door Panel Fixing - golmar V2PLUS Manuel D'installation

88
H
old the door panel on the embedding box

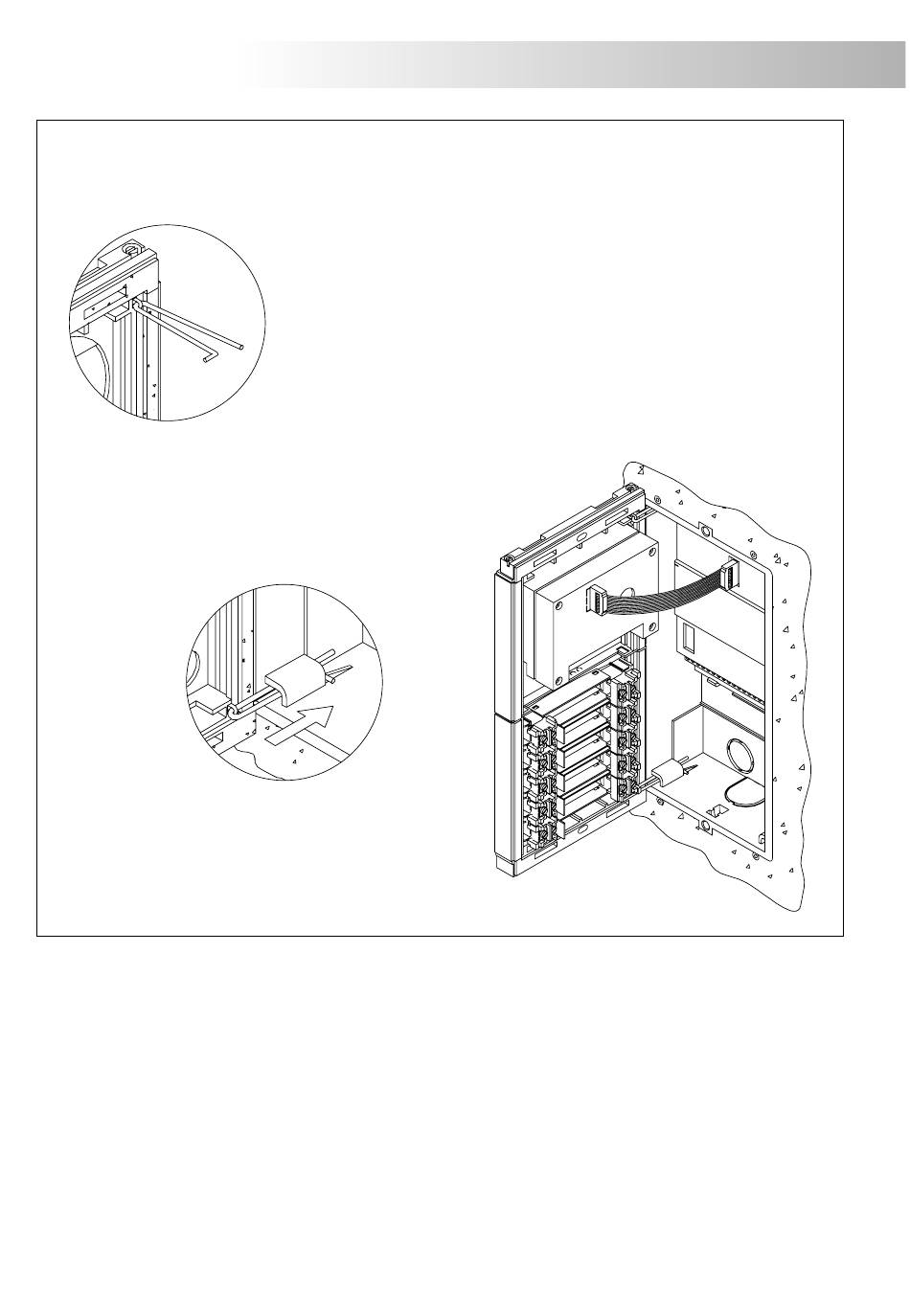

To hold the door panel on the embedding box,
insert the hinges in the embedding box lockers
as shown .
Link the sound module with the EL500/V2PLUS
microprocessor circuit by using the supplied
flat cable .
DOOR PANEL INSTALLATION
.
Select a direction to open the door panel; this selection should eas the
door panel wiring .
The opening direction will be settled through the hinges position,
that must be passed through the header clips as shown For
example, if the hinges are placed on both clips of the lower header,
the door panel will open downwards; if they are placed on the right
clips of both headers, the door panel will open to left
