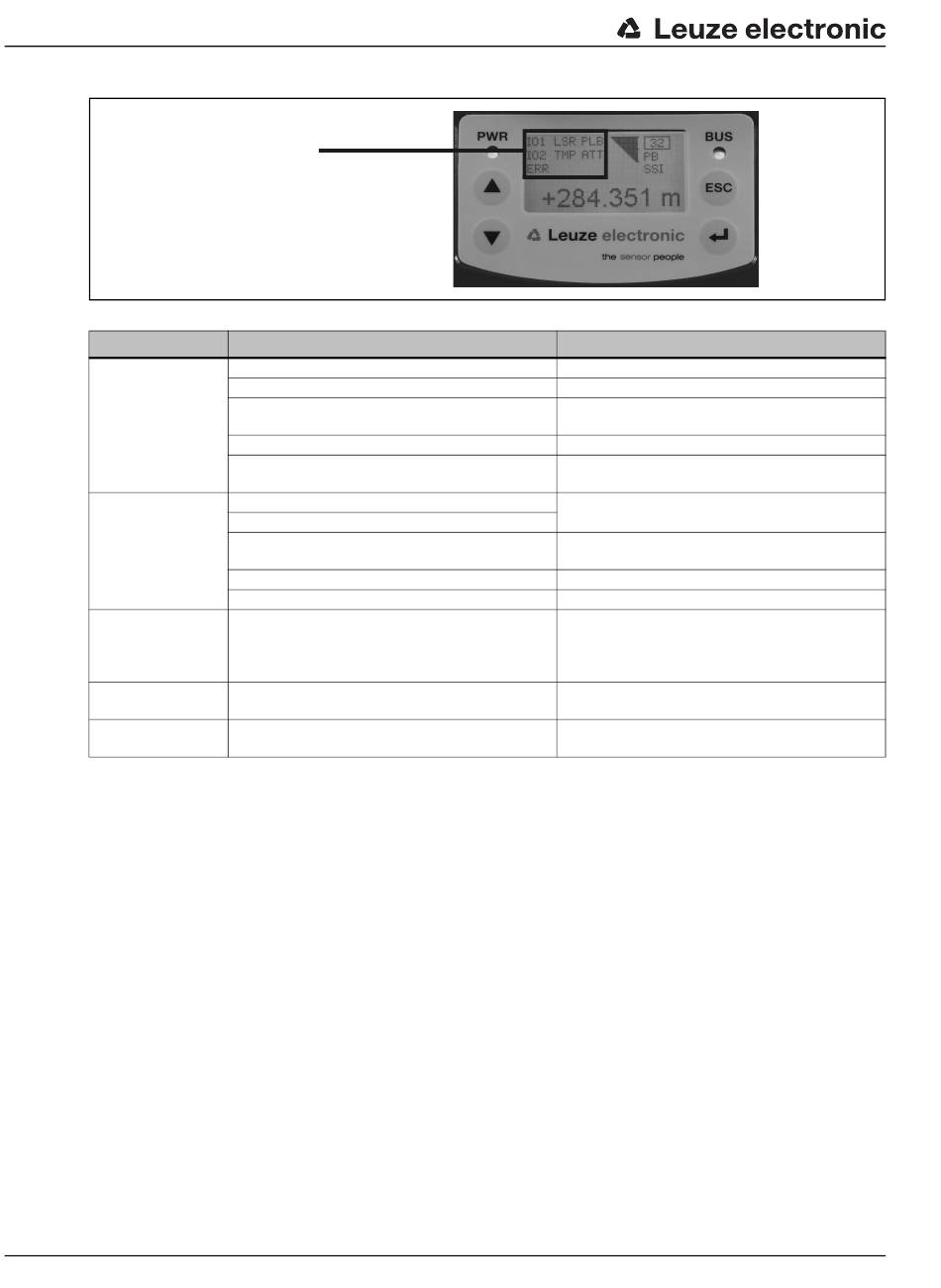

Display
PLB
(implausible
measurement
values)
ATT
(insufficient received
signal level)
TMP
(operating
temperature outside
of specification)
LSR
laser diode warning
ERR
Hardware error.
14
Status display
Possible error cause
Laser beam interruption
Laser spot outside of reflector
Measurement range for maximum distance exceeded Restrict traversing path or select AMS with larger
Velocity greater than 10m/s
Ambient temperature far outside of the permissible
range (TMP display; PLB)
Reflector soiled
Glass lens of the AMS soiled
Performance reduction due to snow, rain, fog,
condensing vapor, or heavily polluted air (oil mist, dust)
Laser spot only partially on the reflector
Protective foil on the reflector
Ambient temperatures outside of the specified range In case of low temperatures, remedy may be an AMS
Laser diode prefailure message
Indicates an uncorrectable error in the hardware
Laser spot must always be incident on the reflector.
Traverse rate < 10m/s?
measurement range.
Reduce velocity.
Select AMS with heating or ensure cooling.
Clean reflector or glass lens.
Optimize usage conditions.
Check alignment.
Remove protective foil from reflector.
with heating.
If temperatures are too high, provide cooling or change
mounting location.
Send in device at next possible opportunity to have
laser diode replaced. Have replacement device ready.
Send in device for repair.
