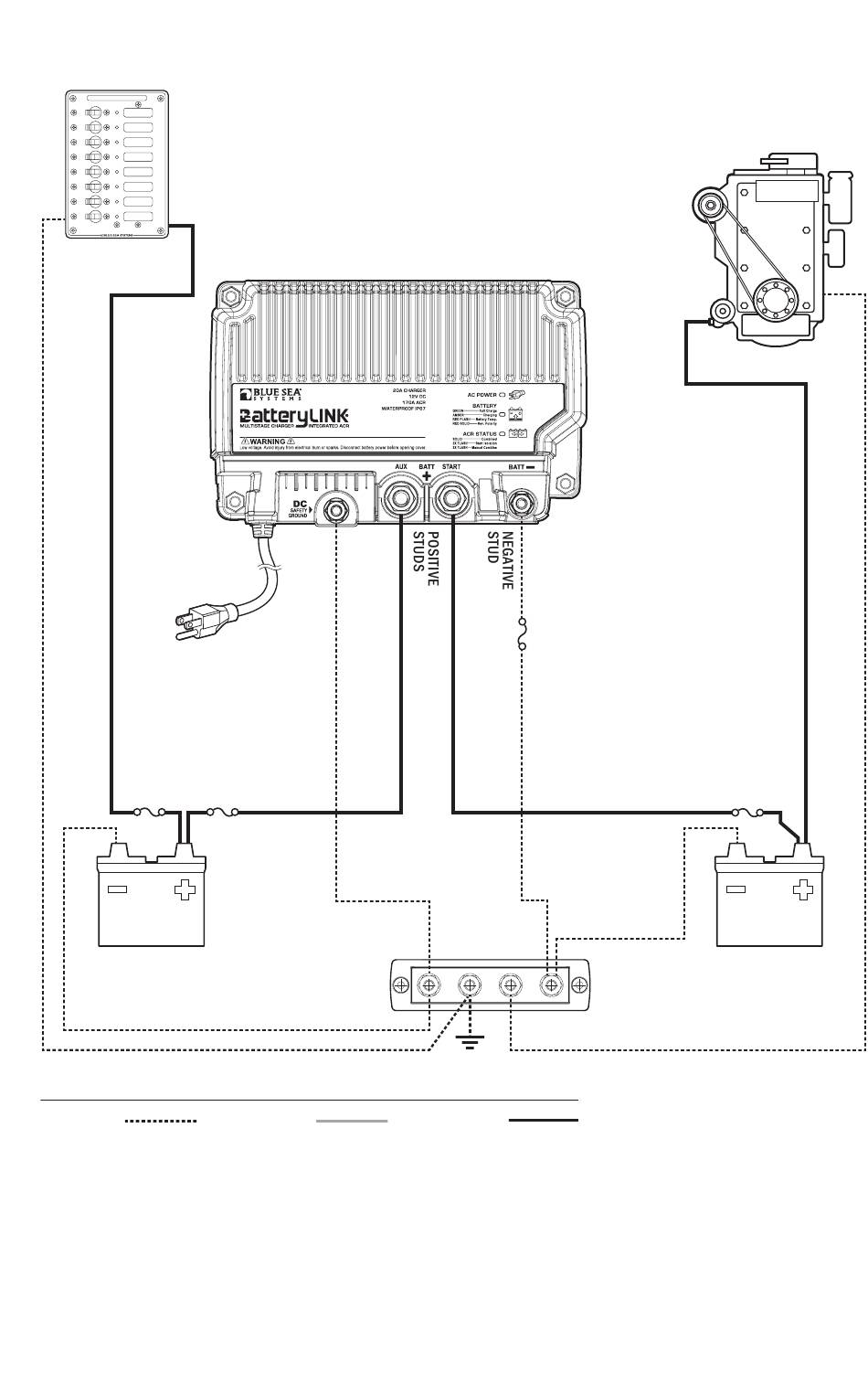

QUICK INSTALLATION DIAGRAM
ACCESSORIES
FUSE**
AUXILIARY
BATTERY
Legend
DC Negative
* See Wire Size and Fuse Rating Table, page 6.
** Wire size and fuse rating based on house loads. For more information, use the Circuit Wizard at circuitwizard.bluesea.com.
*** DC safety ground wire must be no more than one nominal wire size smaller than the positive battery wires. If the rating of the circuit
protection used in the positive battery wires is greater than 135% of the ampacity of the smaller proposed DC safety ground wire,
then the DC safety ground wire must be the same size as the positive battery wires.
8
BatteryLink™ Charger 20A
7608
AC
INPUT
FUSE*
Optional
Specifications are subject to change. See bluesea.com/products/7608 for current information.
DC
SAFETY
GROUND***
GROUND
DC Positive
FUSE*
NEGATIVE
BUS BAR
ENGINE
FUSE*
START
BATTERY
