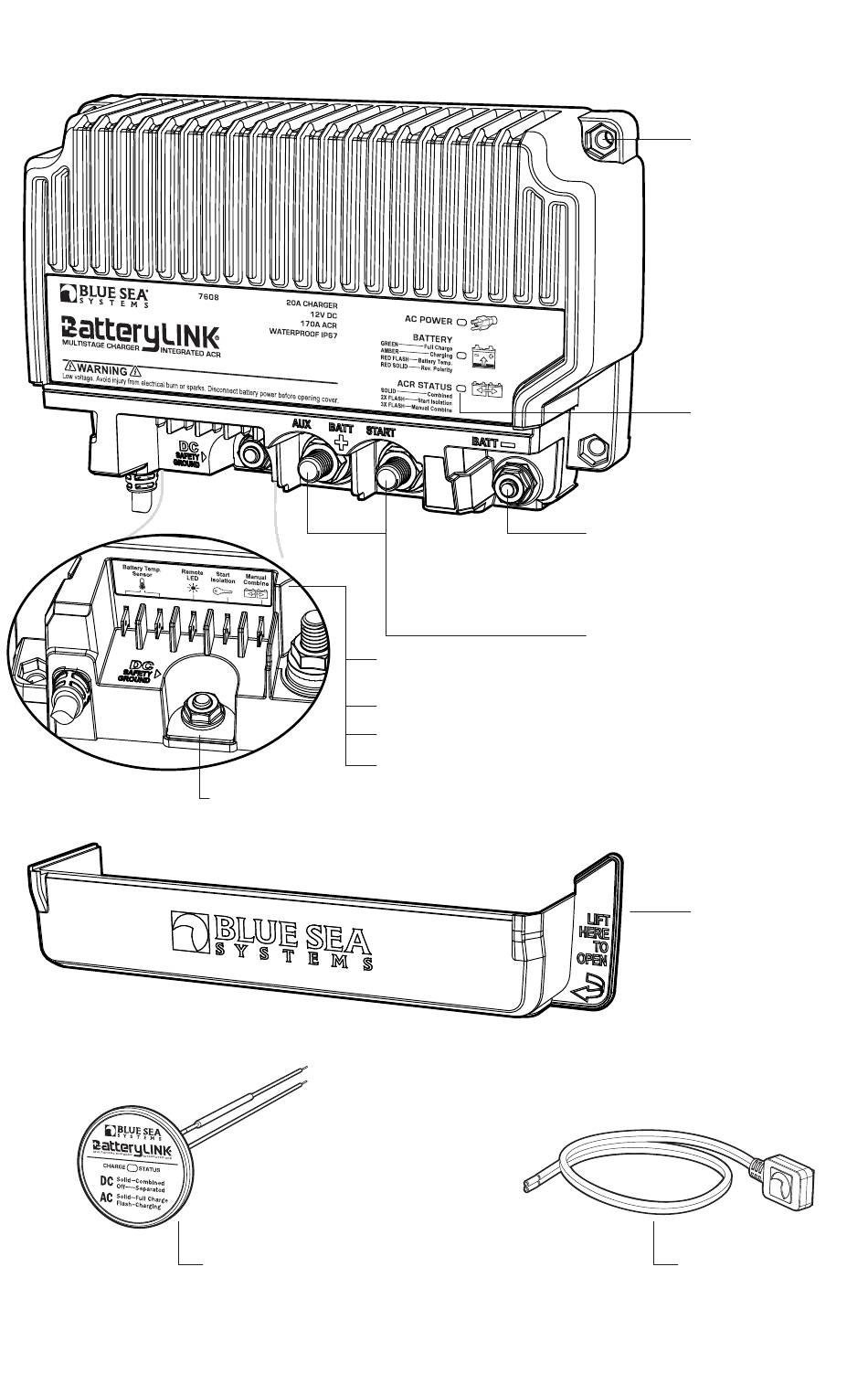

BATTERYLINK® CHARGER OVERVIEW
3
DC Safety Ground
1/4"-20 stud accepts
1/4" or M6 ring terminals.
Use 7/16" socket wrench.
Remote LED included
Specifications are subject to change. See bluesea.com/products/7608 for current information.
Battery Temperature
Sensor connection
Remote LED connection
Start Isolation connection
Manual Combine connection
NOTE: All accessory terminations
1/4" x 0.032" male quick connect
Mounting holes (4)
Clearance for #10 or
M5 mounting hardware.
Hex recesses accept
#10 (3/8" socket size)
nuts.
NOTE: Mounting holes
are not symmetrical,
please see dimensioned
drawing.
Charging and ACR
status LEDs
DC Output
Battery negative connection
1/4"-20 studs accept 1/4" or M6 ring
terminals. Use 7/16" socket wrench.
Tighten to 60 in-lb (6.78 Nm).
Do not overtighten.
Battery positive connections
3/8"-16 studs accept 3/8" or M10 ring
terminals. Use 9/16" socket wrench.
Tighten to 140 in-lb (15.8 Nm).
Do not overtighten.
Terminations cover
snaps in place to
insulate terminations
Battery temperature
sensor included PN 1820
