Battery Temperature Compensation
Battery temperature compensation is output voltage regulation based on battery temperature variances. Since batteries
can see extreme temperature differences, it is important to regulate output voltage with temperature to maximize battery
life. A battery in a cold environment should not be charged at the same voltage as a battery in a hot environment. The
BatteryLink® Charger is set at a baseline of 25°C. If the included battery temperature sensor is installed, then any
variance from this baseline will result in a change in output voltage. Voltage will decrease at higher temperatures
and increase at lower temperatures. The temperature sensor also allows the charger to react to extreme hot or cold
temperatures (below -20°C or above 45°C) by reducing output or shutting down to preserve the battery. Reference the
Installation Instructions on page 7 and the Full Installation Diagram on page 9 for details on how to install the battery
temperature sensor.
Automatic Charging Relay (ACR)
The BatteryLink® Charger includes an integrated 170A Automatic Charging Relay (ACR). The purpose of an ACR is to
combine batteries for charging but leave them isolated for discharge. This works well with dual battery systems, where
non-starting loads are isolated from the engine starting battery to reduce the risk of being stranded on the water without
enough power to start your engine. The ACR in the BatteryLink® Charger will combine the auxiliary and start batteries at
or away from the dock. This means both batteries will be charged during AC powered charging, or when AC power is not
available and a secondary charging source is active, such as your engine's alternator. The ACR includes an optional Start
Isolation feature, which can be used to prevent engine starting current being drawn from the auxiliary battery. Start
Isolation protects sensitive electronics wired to the auxiliary battery from being affected by voltage sags or spikes caused
by engine starting. The ACR also includes an optional Manual Combine feature, which allows manually closing the ACR
to parallel the batteries using a remote switch. This can be used to jump start from the auxiliary battery in the event of
a dead start battery. Reference the Installation Instructions on page 7 and the Full Installation Diagram on page 9 for
details on how to wire the Start Isolation and Manual Combine features.

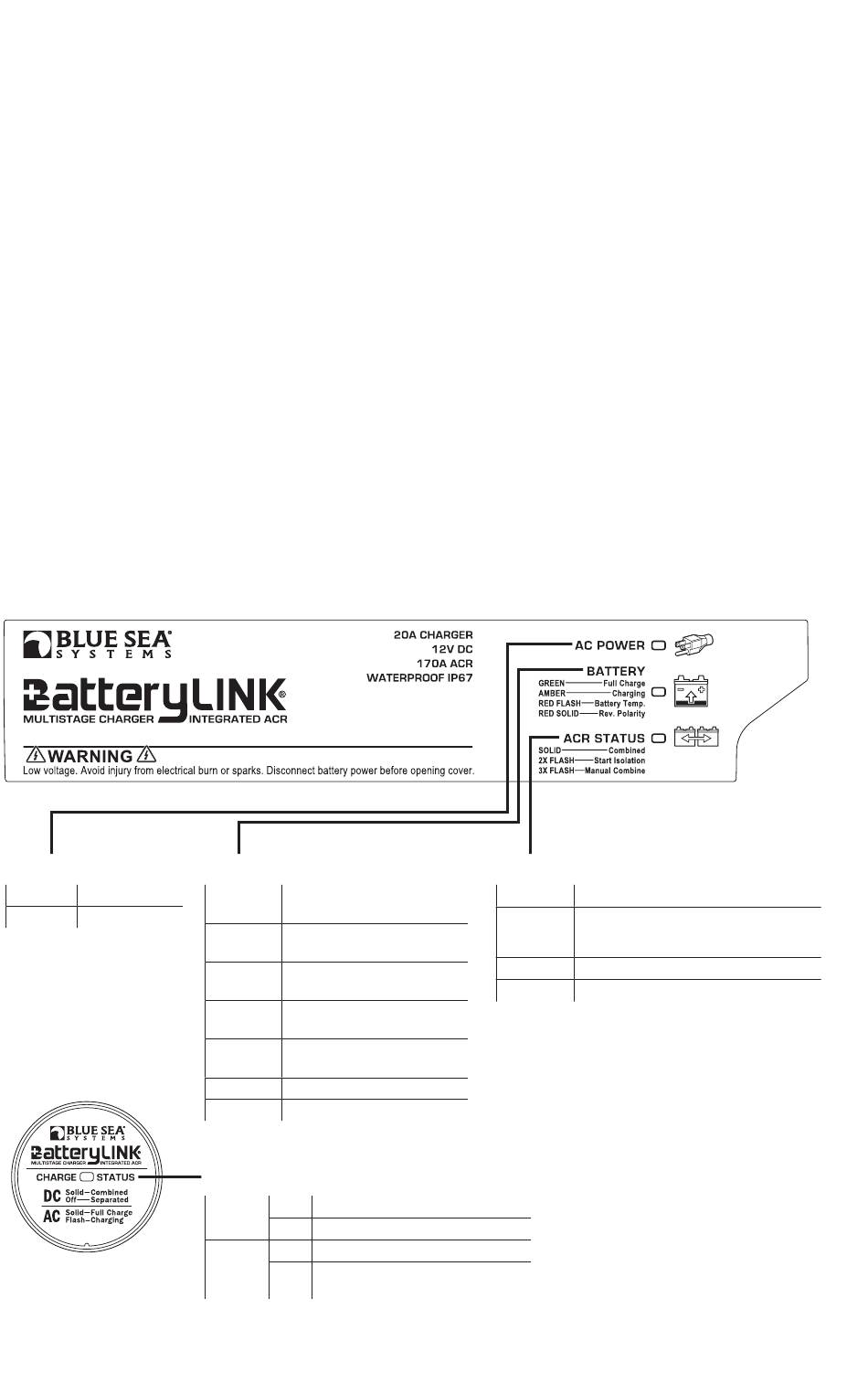

LED Status Indicators
AC POWER
Green solid AC power
Off
No AC power
5
7608
BATTERY
Charge complete -
Green solid
Float/rest stage
Charge in progress -
Amber solid
Bulk or absorption stage
Red
Battery hot - Charger shutdown
single blink
(>= 49°C, recovers at 47°C)
Red
Battery hot - Output reduction
double blink
(>= 45°C, recovers at 43°C)
Red
Battery cold - Charger shutdown
triple blink
(<= -20°C, recovers at -18°C)
Red solid
Battery polarity reversed
Off
No AC power

CHARGE STATUS

Solid Combined - ACR closed
DC Power
Off
Separated - ACR open
Solid Charging complete - Float/rest stage
AC Power
Charge in progress - Bulk or absorption
Flash
Or error state - See charger LEDs
Specifications are subject to change. See bluesea.com/products/7608 for current information.
ACR STATUS
Green solid
Combined - ACR closed
SI present, battery temp outside range of
2x-flash
-20°C to 49°C, or reverse battery polarity
detected - ACR open
3x-flash
Manual Combine input present - ACR closed
Off
Battery voltages below threshold - ACR open
