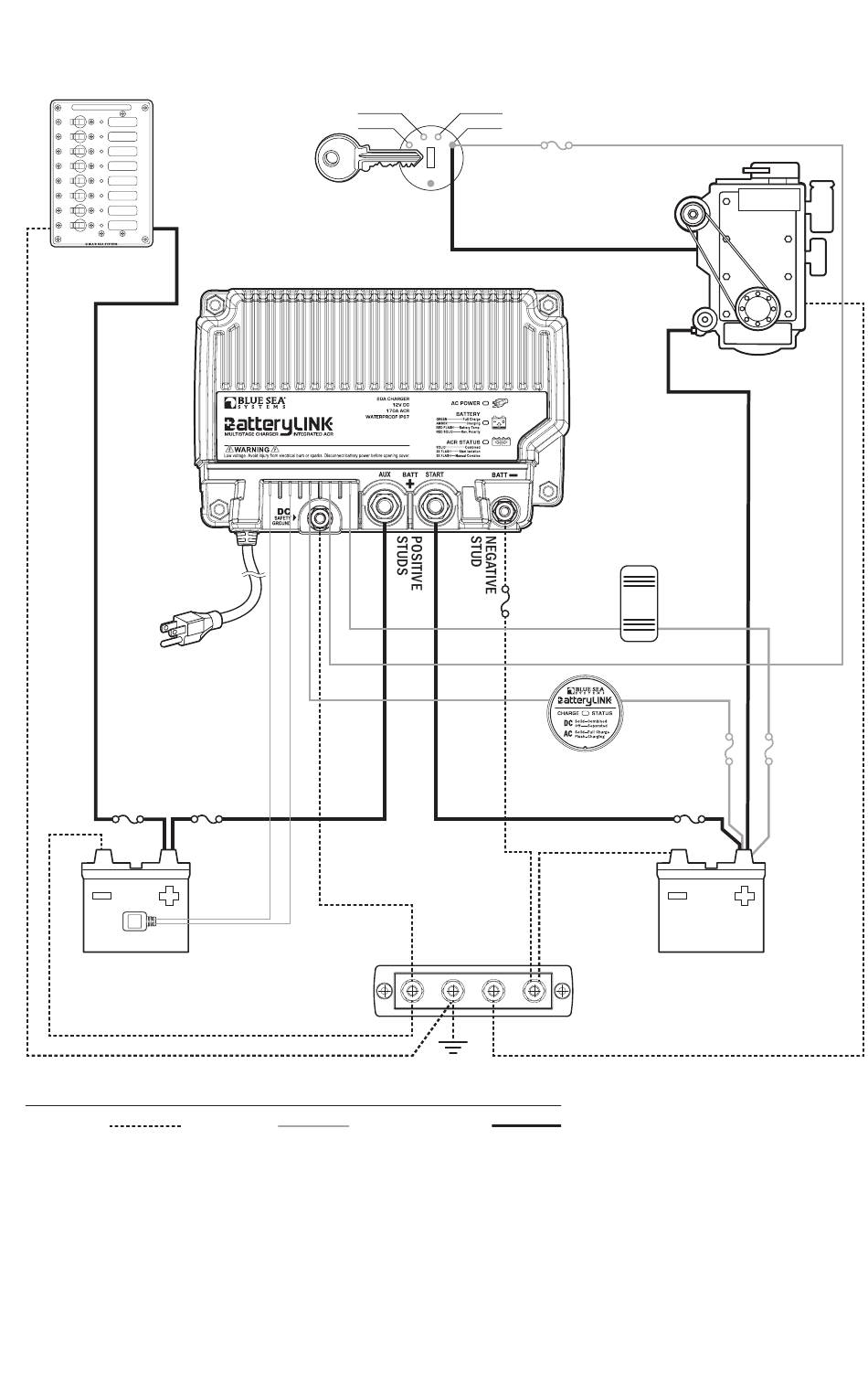

FULL INSTALLATION DIAGRAM
ACCESSORIES
AC
INPUT
FUSE**
AUXILIARY
BATTERY
Legend
DC Negative
* See Wire Size and Fuse Rating Table, page 6.
** Wire size and fuse rating based on house loads. For more information, use the Circuit Wizard at
circuitwizard.bluesea.com.
*** DC safety ground wire must be no more than one nominal wire size smaller than the positive battery wires. If the rating of the circuit
protection used in the positive battery wires is greater than 135% of the ampacity of the smaller proposed DC safety ground wire,
then the DC safety ground wire must be the same size as the positive battery wires.
9
START KEY SWITCH
BatteryLink™ Charger 20A
7608
FUSE*
DC
SAFETY
GROUND ***
OPTIONAL
BATTERY
TEMPERATURE
SENSOR
Optional
Specifications are subject to change. See bluesea.com/products/7608 for current information.
accessory
run
start
off
FUSE*
YELLOW WIRE
GROUND
DC Positive
2A FUSE
16 AWG
(1.5mm²)
OPTIONAL START ISOLATION (SI) WIRE
OPTIONAL
COMBINE
SWITCH
(sold separately)
RED WIRE
MULTISTAGE CHARGER INTEGRATED ACR
2A FUSE
16 AWG
OPTIONAL (1.5mm²)
REMOTE
INDICATOR
FUSE*
START
BATTERY
NEGATIVE
BUS BAR
ENGINE
2A FUSE
16 AWG
(1.5mm²)
