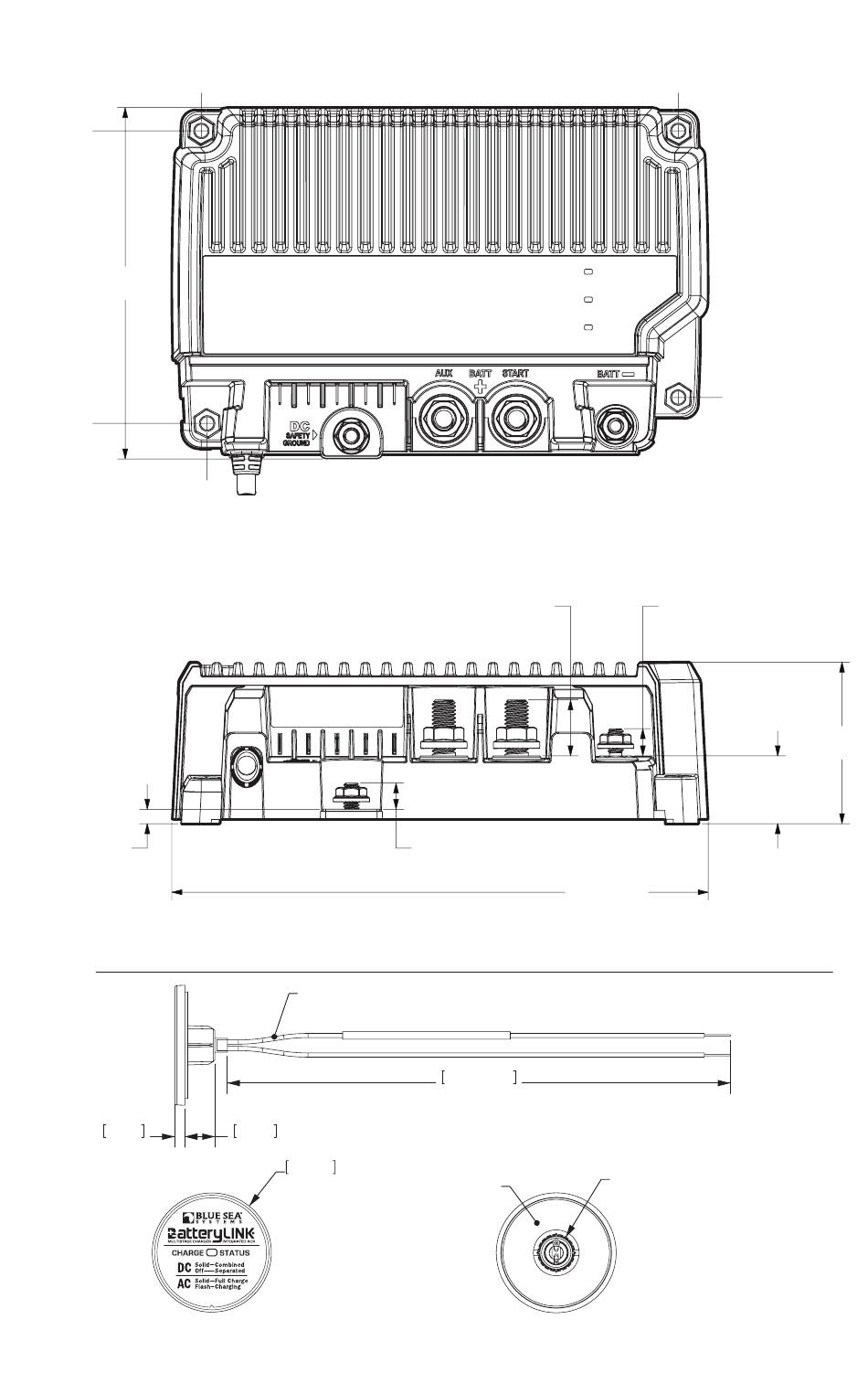

DIMENSIONED DRAWINGS

7.67"
0" 194.8mm
TYP. 2X
0.0mm
0"
0.0mm
TYP. 2X
5.65"
143.5mm
4.29"
108.9mm
4.70"
119.5mm
THIS VIEW SHOWN WITH COVER REMOVED
.09"
FOR OPTIMAL PERFORMANCE, MOUNT
2.4mm
VERTICALLY AS SHOWN, IN A WELL VENTILATED AREA.
RECOMMENDED MOUNTING CLEARANCE 175mm
MINIMUM ON ALL SIDES.
.90" .44"
22.90mm 11.1mm
STUD HEIGHT STUD HEIGHT
TYP. 2X
2.60"
66.0mm
1.09"
27.6mm
TERMINAL HEIGHT
TYP. 3X
.42"
.23"
10.7mm
5.9mm
STUD HEIGHT
TERMINAL HEIGHT
8.63"
219.1mm
THIS VIEW SHOWN WITH COVER REMOVED
26 AWG WIRE LEADS
152.4±0.635
6.00±.025
SIDE
3.1mm 9.1mm
.12in .36in
MOUNTS IN
36.3mm
ADHESIVE
Ø 7/16in OR 11mm
Ø 1.43in
PAD
HOLE
FRONT BACK
10
