GE GBF532SGMWW Instructions D'installation page 6

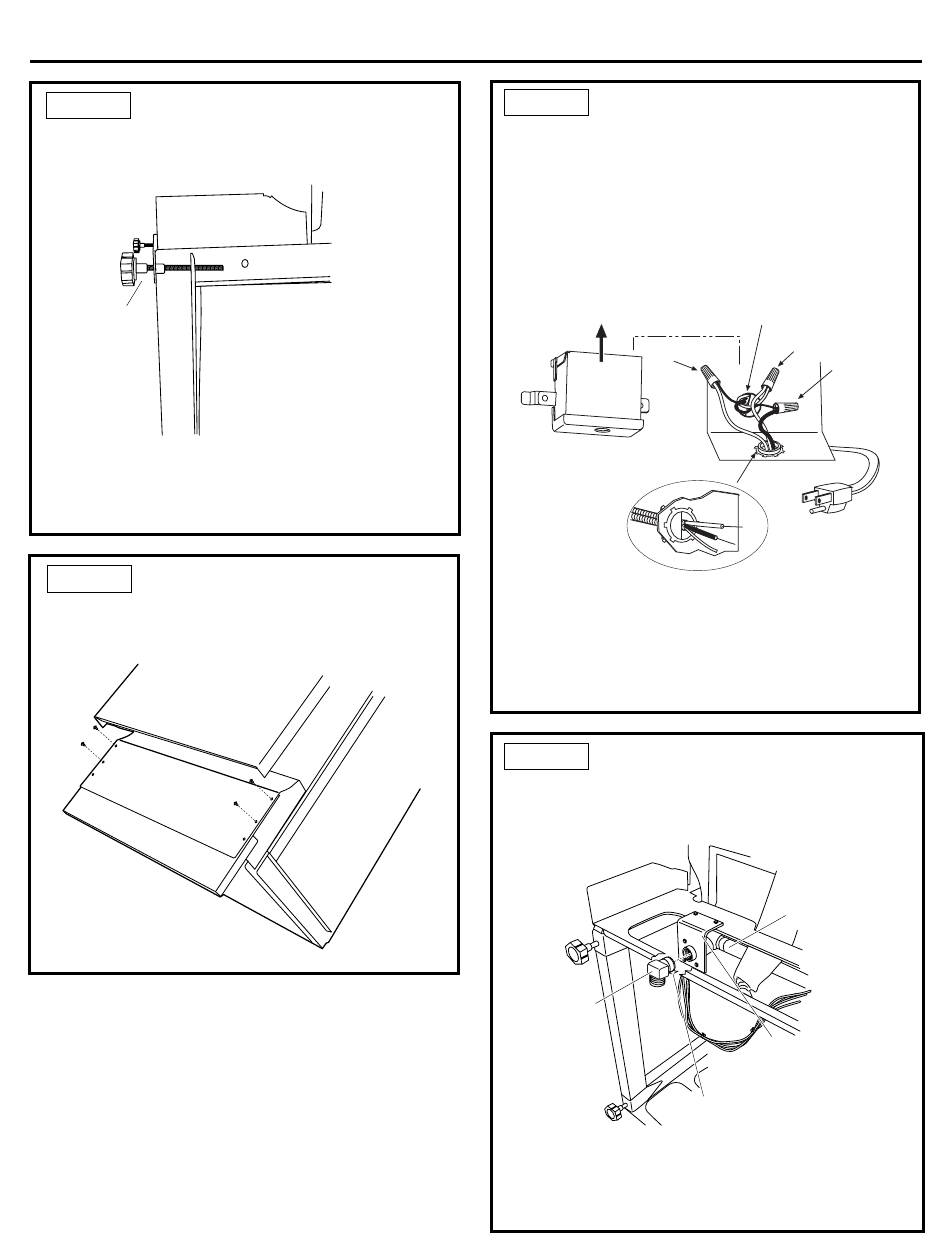

STEP 2 ADJUST LEVELING LEGS
• Move the dishwasher close to the installation loca-
tion and lay it on its back.
Adjust to
Installation
Height
Figure H
• Measure installation height and dishwasher height.
Extend leveling legs out from the dishwasher base,
1/4" less than installation height.
STEP 3 REMOVE TOEKICK
• Remove the 4 toekick screws. Lift off the 2 piece
toekick.
Remove
Toekick
Screws
Figure J
Installation Instructions
6
STEP 4 INSTALL POWER CORD
Skip this step if dishwasher will be direct wired. Use
power cord kit WX09X70910 available for purchase from
an authorized GE Appliances dealer. The power cord and
connections must comply with the National Electrical
Code, Section 422 and/or local codes and ordinances.
• Recommended power cord length is 54" min. and
64" max.
A B
Remove
Green Dishwasher Wires Are Threaded
Junction Box
Cover
Ground
D
Use UL Listed
Wire Nuts
Figure K
• Connect incoming
power cord white (or ribbed)
to dishwasher white, black
(or smooth) to black and ground to dishwasher green
wire. Use UL listed wire nuts of appropriate size.
• Replace junction box cover. Be sure wires are not
pinched under the cover.
STEP 5 INSTALL 90° ELBOW
• Wrap 90° elbow with thread seal tape. Do not use
plumber's putty.
• Install a 90° elbow onto the water valve.
90
Elbow
Seal Tape
Figure L
• Do not over tighten 90° elbow, water valve bracket
could bend or water valve fitting could break.
• Position the end of the elbow to face the rear of the
dishwasher.
Check That White, Black and
Thru Hole in Back
White
Black
C
Insert Power
Cord Wires Thru
Strain Relief
and Tighten
Fill
Hose
Water
Valve
Bracket
Thread
