5.2 The settings in the menu cannot be changed
CAUTION!
Check in the menu whether Service mode has been activated.
6.0 Assembly, electrical connection
6.1 Assembly
The MultiControl Duo control system is located in a switch box with the dimensions 300 x 320 x 120 mm (H x
W x D). There are 3 holes on the switch box for mounting. One of these holes is located on the back as a
"keyhole" for inserting the screw head. The other two holes are located underneath the cover of the terminal
box.
6.2

Hose connection

An 8/6 mm threaded hose connection is supplied for the hose connection as standard. The switchgear can be
supplied with other threaded hose connections as an option.
A retrospective replacement of the threaded hose connection is also possible. The threaded hose connection
must have a G1/8" internal thread with the device. When replacing the connection, it is important to hold the
relevant nut in place with a 14 mm spanner. The screw connection must be used with a suitable sealant in all
cases.
6.3 Electrical connection of power supply and pumps
The electrical connection must be configured by an electrician according to the applicable VDE regulations.
A maximum of 3 25 A time-lag fuses must be fitted on the mains side.
27 28
U V
P1
Pumpe1
Pump 1

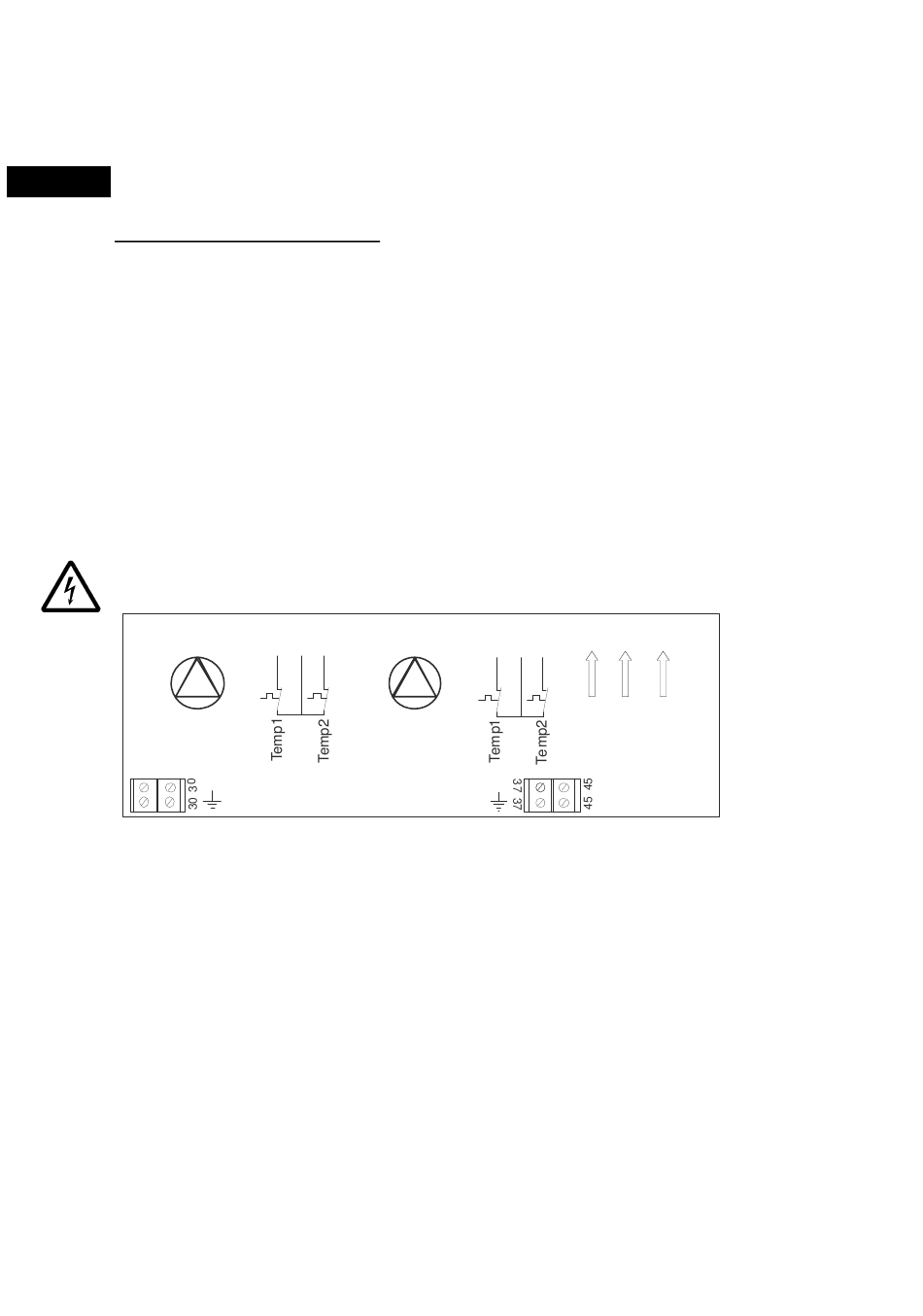

Mains connection (3 ~) L1, L2, L3, N, PE (terminals 41, 42, 43, 44, 45)
(Figure 1a in appendix)
The terminals are configured for a maximum cable cross-section of 4 mm². It must be ensured that a right-
handed rotating field is created. The terminals are labelled L1, L2, L3, N and PE (41 - 45).
Power supply to the pumps (3~)
Power is supplied to pump 1 at terminals 27, 28, 29 and 30; these are also labelled with U, V, W and PE.
Power is supplied to pump 2 at terminals 34, 35, 36 and 37; these are also labelled with U, V, W and PE.
MultiControl Duo
29 31 32 33 34 35
W U
T1 T0 T2
Pumpe2
PE
36 38 39 40
V W
T1 T0 T2
P2
Pump 2
PE
33
ver. 1.18
41 42 43 44
L1 L2 L3 N
Stromzuführung Power supply
