13 / 14 Series Installation

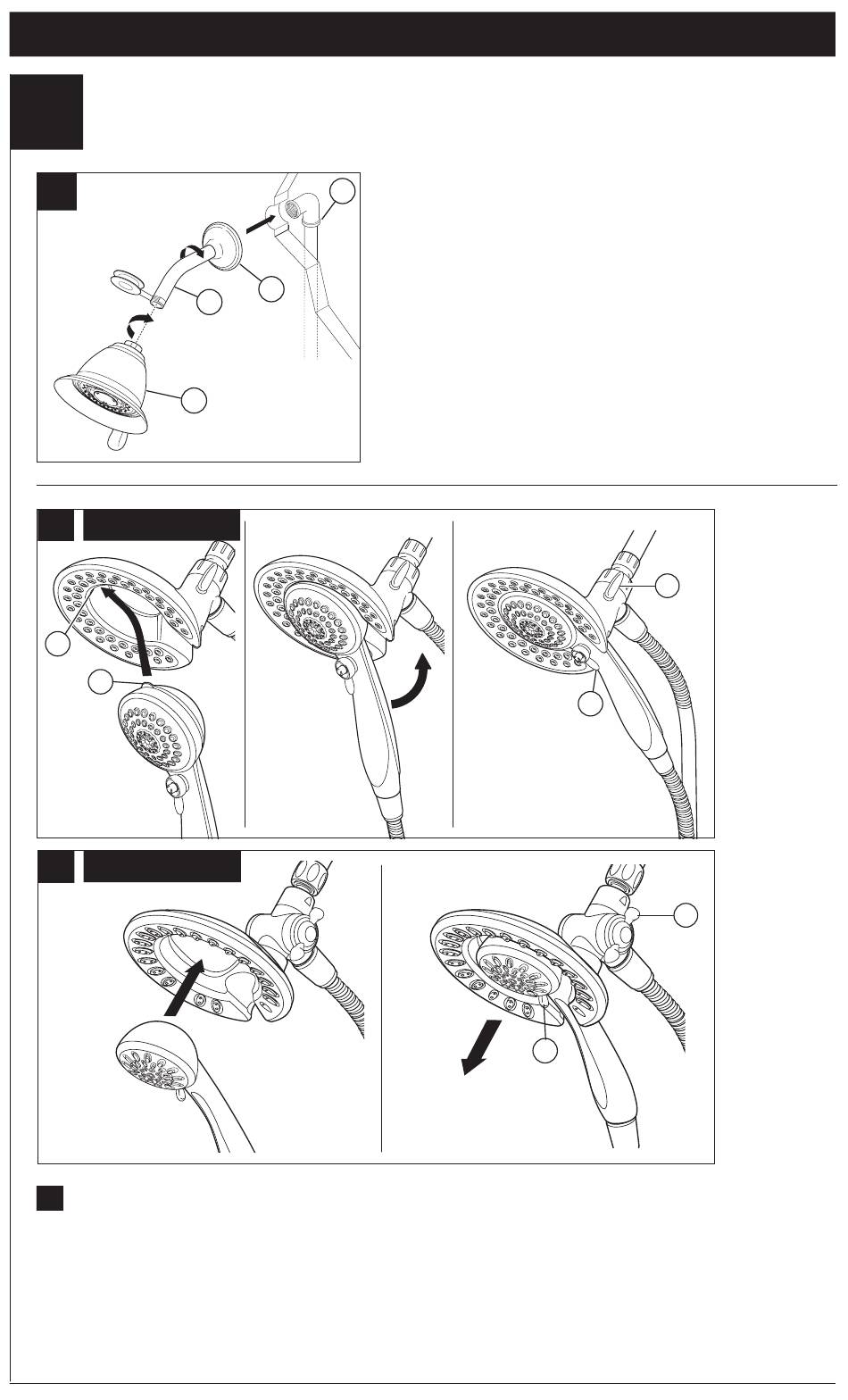

Showerhead and Tub Spout Installation
2
A.
4
B. 58045
2
1
58065
B.
58045: To combine the two showers, insert the top tab (1) on the handshower into the slot (2) of
B.
the showerhead. Push the handshower into the showerhead until the two parts snap together.
58065: To combine the two showers, push the handshower into the showerhead, then pull down
on the handshower until locked with the showerhead.
If the showerhead moves when removing the handshower, hand tighten the connection between
the showerhead and the shower arm.
To change spray modes, turn the lever (3) left or right to the desired setting. Turn knob (4) to
change between showerhead only, showerhead and handshower or handshower only.
1
3
2
FOR SHOWERHEAD INSTALLATION: Connect top
outlet (1) to shower arm (2) with proper fittings. To
prevent damage to finish on shower arm, insert wall end
of shower arm into shower flange (3) before screwing
arm into riser connection. Thread showerhead (4) onto
shower arm. Apply Teflon
ends. Do not overtighten showerhead.
3
4
tape to pipe threads on both
®
4
3
4
