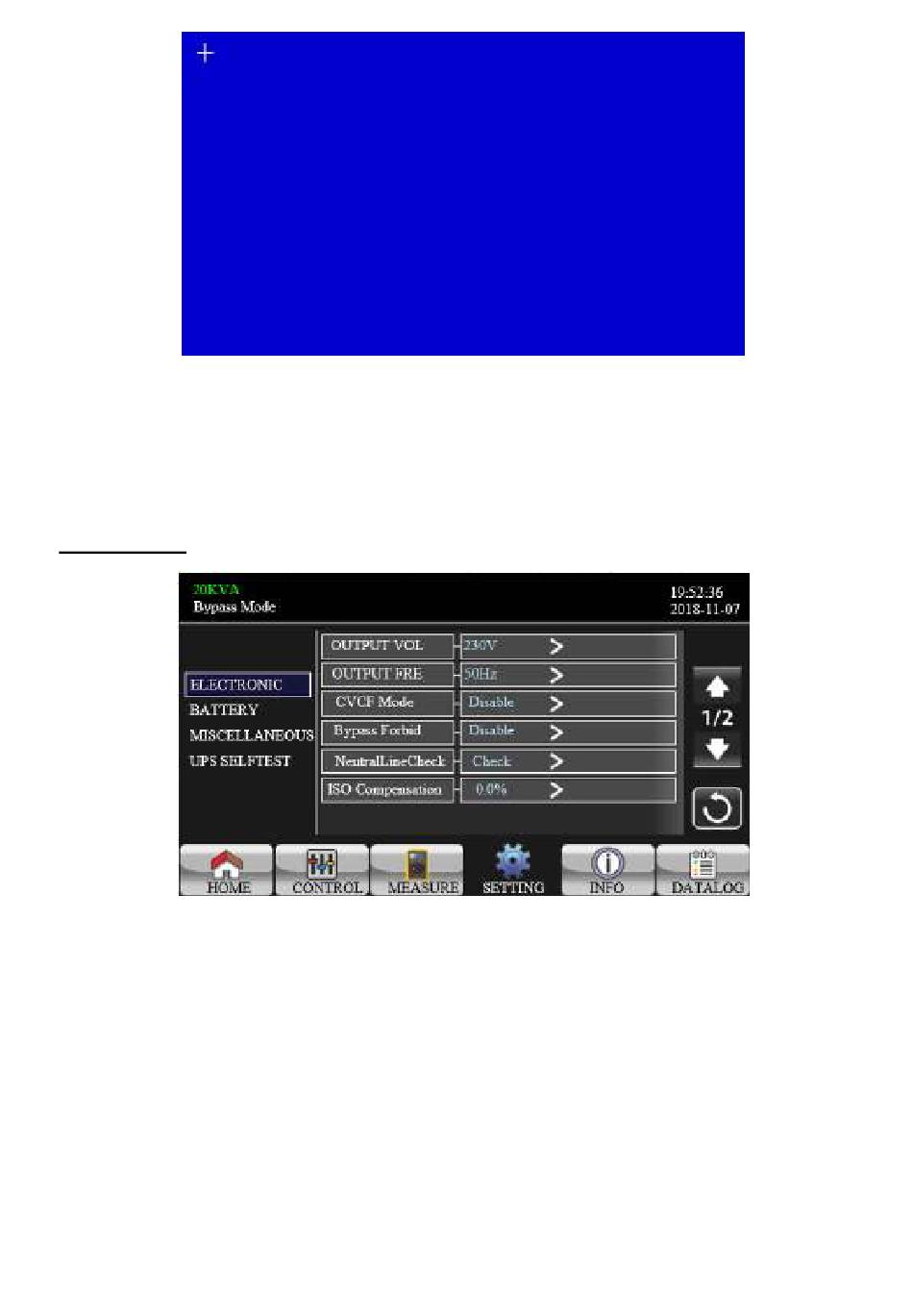

TOUCH CALI: After pressing the confirmation window, it will pop up as shown in above
screen. Touch screen to recalibrate. Then, the blue screen appears and please click on
the place of the cross with your mouse.
ELECTRONIC
➢
Output VOL: Select the output rated voltage.
◼ When UPS is HV system, there are four options, 208V , 220V ,230V and 240V.
◼ When UPS is LV system, there are two options, 120V and 127V.
➢
Output FRE: Select output rated frequency.
◼ 50Hz: The output frequency is setting for 50Hz.
◼ 60Hz: The output frequency is setting for 60Hz.
➢
CVCF Mode (constant voltage and constant frequency function)
◼ Enable: CVCF function is enabled. The output frequency will be fixed at 50Hz or
60Hz according to setting of "Output Freq.". The input frequency could be from 46Hz
to 64Hz.
◼ Disable: CVCF function is disabled. The output frequency will synchronize with the
