INFOSEC M5T Manuel Utilisateur page 117

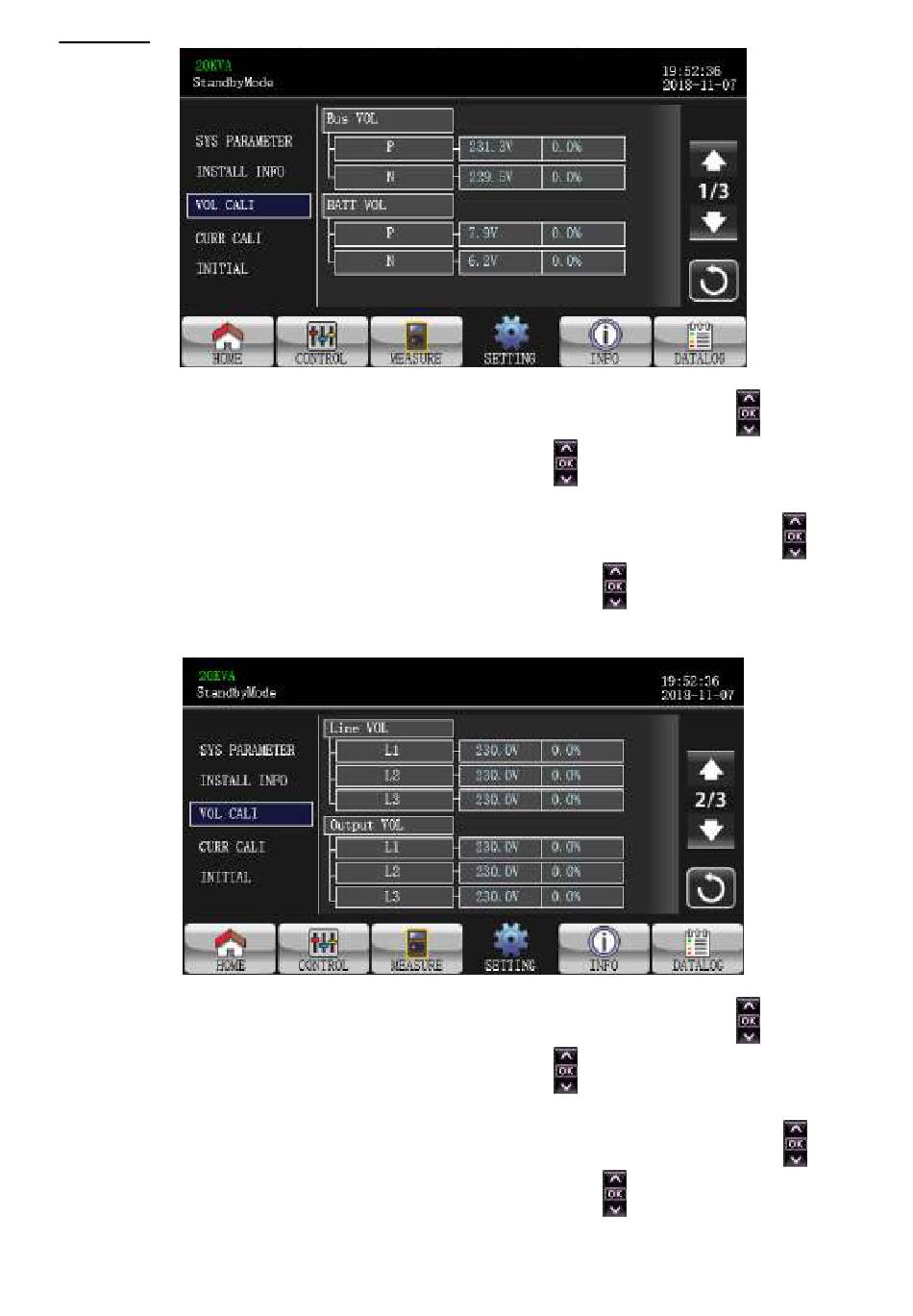

VOL CALI
➢
Bus VOL: BUS voltage calibration. Click value columns and it will pop up
click is 0.1% no matter it's pressing up or down key
and press "down" key to decrease 0.1%. Press "OK" key to confirm the modification.
➢
BATT VOL: Battery voltage calibration. Click value columns and it will pop up
each click is 0.1% no matter it's pressing up or down key
0.1% and press "down" key to decrease 0.1%.
modification.
➢
Line VOL: Line voltage calibration. Click value columns and it will pop up
click is 0.1% no matter it's pressing up or down key
and press "down" key to decrease 0.1%. Press "OK" key to confirm the modification.
➢
Output VOL: Output voltage calibration. Click value columns and it will pop up
each click is 0.1% no matter it's pressing up or down key
0.1% and press "down" key to decrease 0.1%.
modification.
INFOSEC UPS SYSTEM – 15, rue du Moulin – 44880 Sautron, France – www.infosec-ups.com
116
Hotline : +33 (0)2 40 76 15 82 – Fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 02 22 AA 59 203 08
VOL CALI Page1
VOL CALI Page 2
. Press "up" key to increase 0.1%
. Press "up" key to increase
Press "OK" key to confirm the
. Press "up" key to increase 0.1%
. Press "up" key to increase
Press "OK" key to confirm the
. Then, each
. Then,
. Then, each
. Then,
