3-2-3. Measure screen
Touch the icon
information. Touch the icon
previous menu.
➢
LINE VOL: The real time value of L1, L2 and L3 phase voltage, L1L2/L2L3/L3L1 voltage
and input frequency.
➢
INVERTER VOL: The real time value of L1, L2 and L3 inverter voltage, L1L2/L2L3/L3L1
voltage and frequency.
➢
BYPASS VOL: The real time value of L1, L2 and L3 bypass voltage, L1L2/L2L3/L3L1
voltage and frequency.
➢
OUTPUT VOL: The real time value of L1, L2 and L3 output voltage, L1L2/L2L3/L3L1
voltage and frequency.
➢
OUTPUT W: L1, L2 and L3 output power in watt.
➢
OUTPUT VA: L1, L2 and L3 output power in VA.
INFOSEC UPS SYSTEM – 15, rue du Moulin – 44880 Sautron, France – www.infosec-ups.com
105
Hotline : +33 (0)2 40 76 15 82 – Fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 02 22 AA 59 203 08
to enter measure page. Touch the icon
to return to main screen. Touch the icon

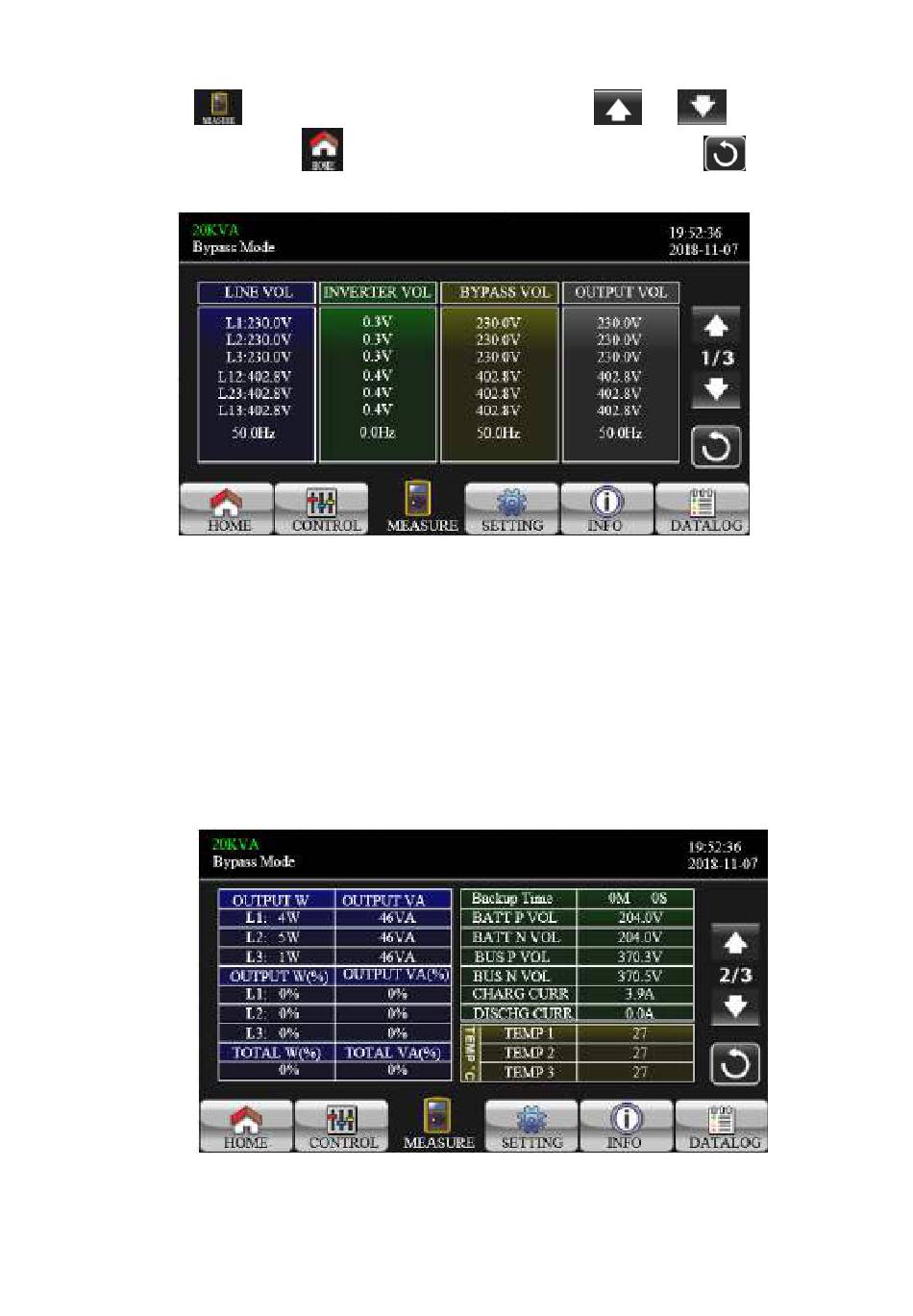

Measure screen page 1
