4.1.2 For drum diameter with a reduced opening of 545 mm

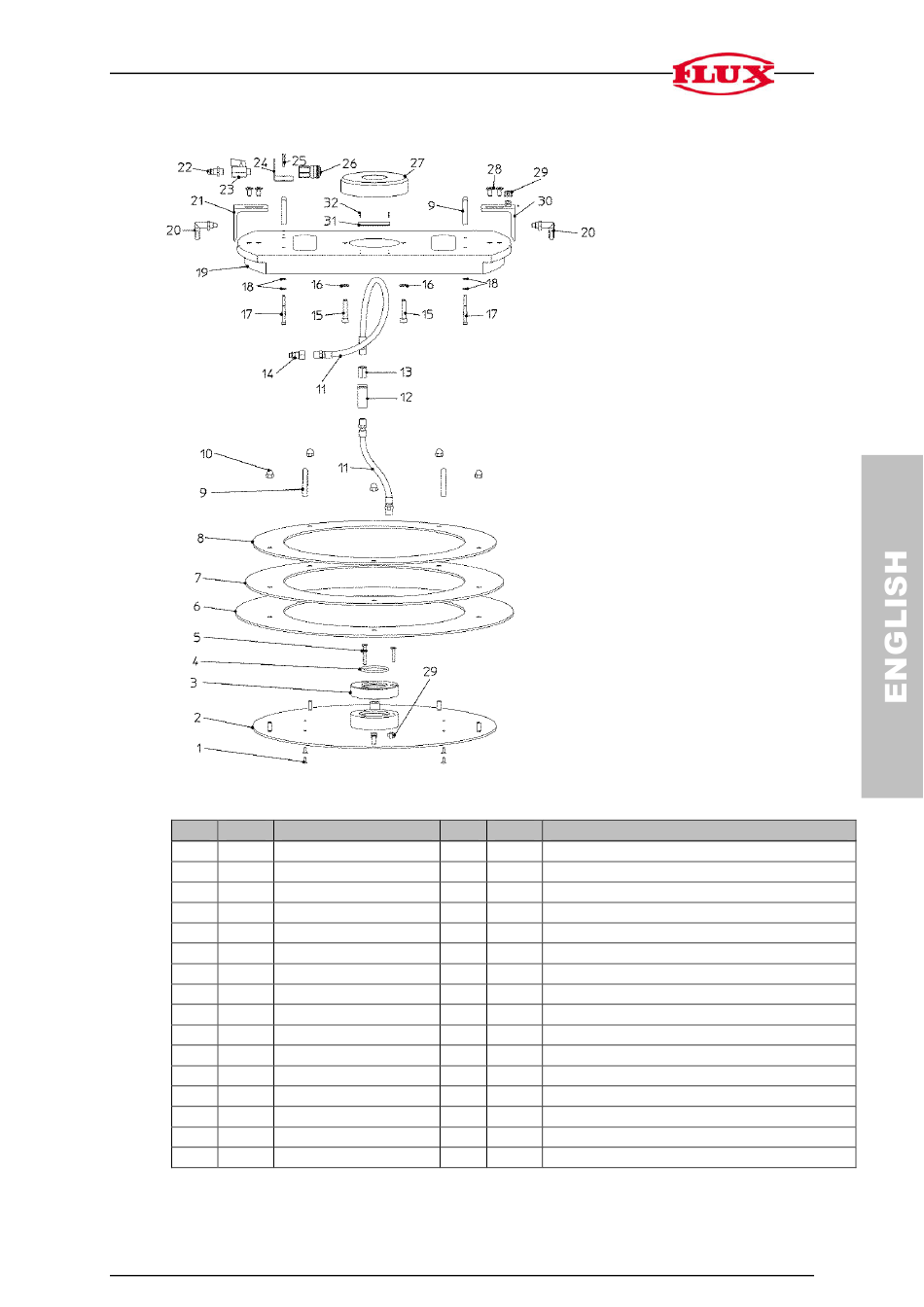

Fig. 3 Spare parts VISCOFLUX lite Ex
No. Qty. Description
1 4 Countersunk screw
2 1 Follower plate
3 1 Insert Ø 54 mm
4 1 O-Ring
5 3 Countersunk screw
6 1 Process seal
7 1 Process seal
8 1 Force collar
9 4 Handle
10 5 Cap nut
11 2 Corrugated hose
12 1 Arresting hook
13 1 Plug-in sleeve
14 1 Nipple
15 2 Cylindrical screw
16 2 Washer
No. Qty.
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Operating instructions VISCOFLUX lite Ex
Description
4 Cylindrical screw
4 Washer
1 Pump centring plate
2 Locking bolt
1 Angle
1 Nipple
1 Ball valve
1 Fastening angle
2 Screw
1 Compressed-air coupling
1 Guidance
4 Countersunk screw
2 Connecting parts equipotential bonding
1 Angle with equipotential bonding
1 Type plate
4 Groove pin
