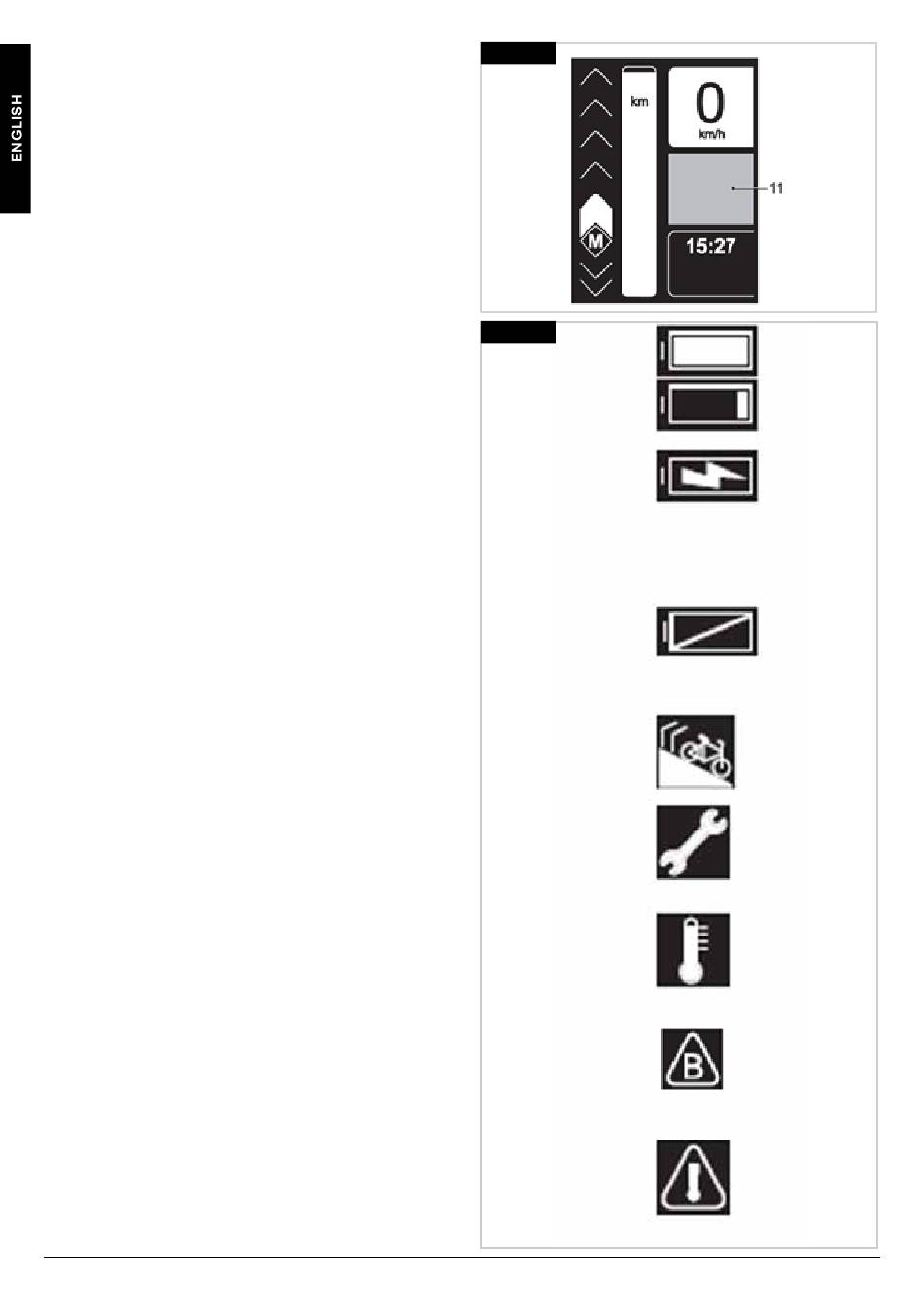

Information and warning symbols:

As standard, in field [11], the remaining battery capacity is
displayed. But depending on the travel situation, information
and warnings as shown in the following may also be displayed
in this field.

Battery capacity display (standard display):

The remaining battery capacity is shown in stages by a
decreasing white bar.
Charging process of the battery:
1. The battery charger is plugged in and the battery is being
charged (only for battery models which are charged via a
second charging socket which is why the power connection to
the sMMI from the battery does not need disconnecting).
2. The battery is being charged by energy fed by the motor
(recuperation, see also section 3.2.5).

Warning:

The battery is empty. No power can be taken from the battery,
motorised support for the add-on bike is no longer available.
Please charge the battery as soon as possible using the
supplied battery charger.

Braking assistant active:

During a downhill journey your Pedelec brakes automatically
within the pre-set limits (see section 3.2.6).

Service reminder:

The service interval of your Pedelec has lapsed. Please
arrange a service appointment with your specialist dealer. The
display can be reset by your dealer using diagnosis software.
Warning – temperature problem:
For extremely long and steep ascents (primarily in Boost
mode) the drive generates heat, which results in an automatic
reduction in performance from a temperature from +80 °C
inside the motor. As a result of the intelligent multipoint thermal
management monitoring system (see section 4), the motor will
never overheat. The performance is reduced to such an extent
that damage is excluded. In very rare cases (e.g. heat built-up
from external heat sources) the system may shut down
completely until temperatures return to within the permissible
operating range. When switching off the display will show the
thermometer symbol.
Warning – system fault:
Inside the warning symbol, instead of the exclamation mark,
various letters are shown (for instance the letter "B" in the
accompanying diagram), which mean the following:
B = battery fault
C = communication fault in the system
M = motor fault
R = controller fault
When a fault occurs, motorised support is not available. Please
contact your specialist dealer.
Warning – general fault:
A fault has occurred in the system, motorised support is no
longer available. Please contact your specialist dealer.
36
Fig.3.12
Fig.3.13
