C/L nozzles
Do not clean the C/L nozzles with the col-
let brush!
▷ Inspect the C/L nozzles weekly.
▷ Clean the outlet holes as required.
When the outlet holes are clogged:

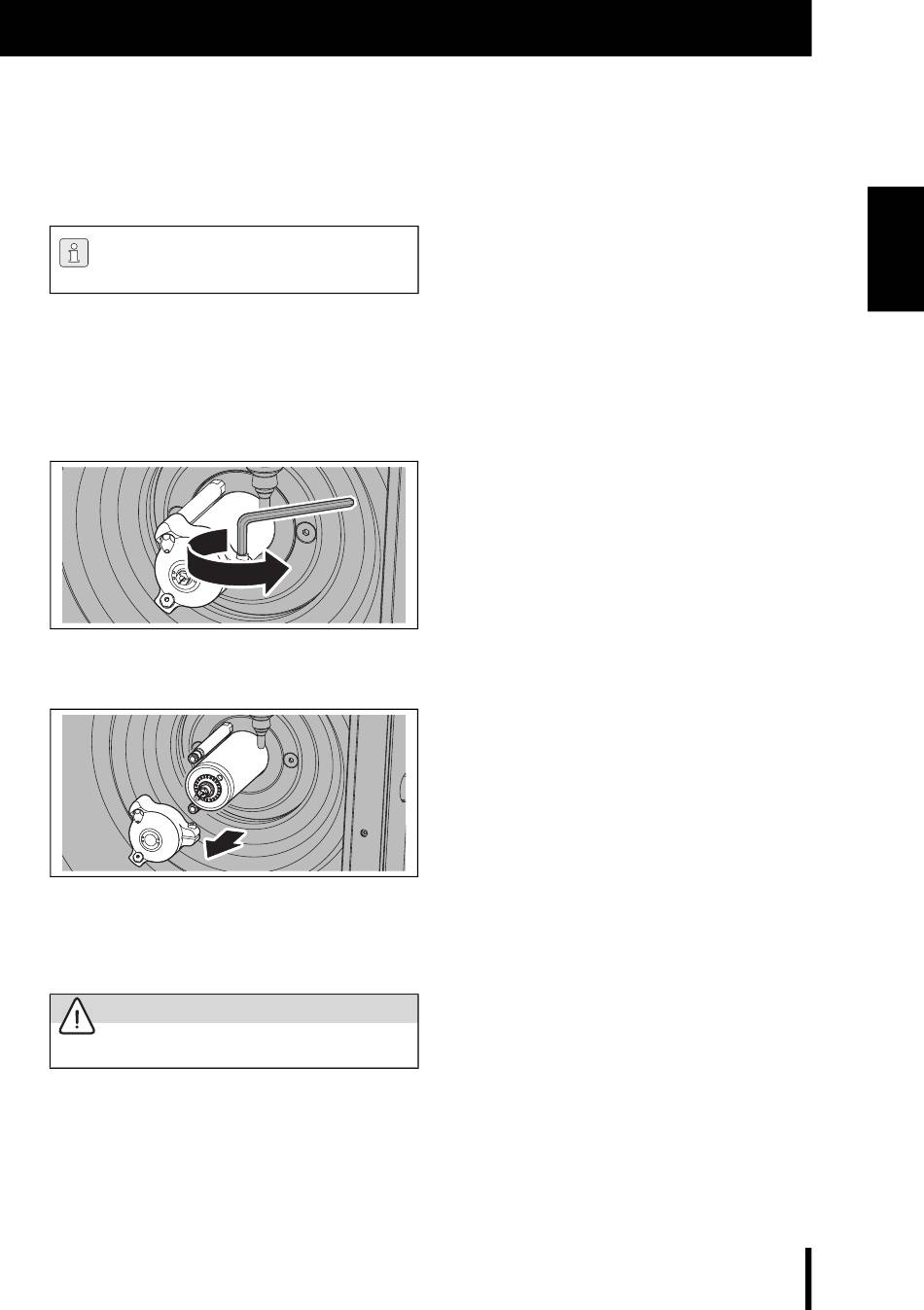

▷ Loosen the Allen screw on the side of the spin-
dle cap.
Fig. 26
▷ Pull off the cap.
Fig. 27
▷ Blow out the holes from the inside of the cap
using a steam cleaner.
CAUTION:
The cap heats up!
▷ Apply a coat of grease to the C/L pipes.
▷ Clean the seat of the cap on the spindle.
▷ Mount the spindle cap again with the screw at
the right-hand side. Pay attention to the correct
connection of the C/L pipes.
C L E A N I N G A N D M A I N T E N A N C E
Service unit
▷ Visually check the service unit for:
▪ Visible particles, debris or particulate matter
within the acrylic glass (signs for contami-
nated compressed air)
▪ Amber discolouration of the filter element
(sign of oil in the compressed air)
▪ Water in the filter (sign of water in the com-
pressed air)
Once any of the listed impairments is given:
▷ Correct the problem with the compressed air.
▷ Replace the complete service unit.
