4.2.3 Set-up cart
The set-up cart is used as a mobile carriage for the
milling machine. The feet of the milling machine
are positioned into the retainers of the set-up
cart. The supply unit can be placed into the bot-
1

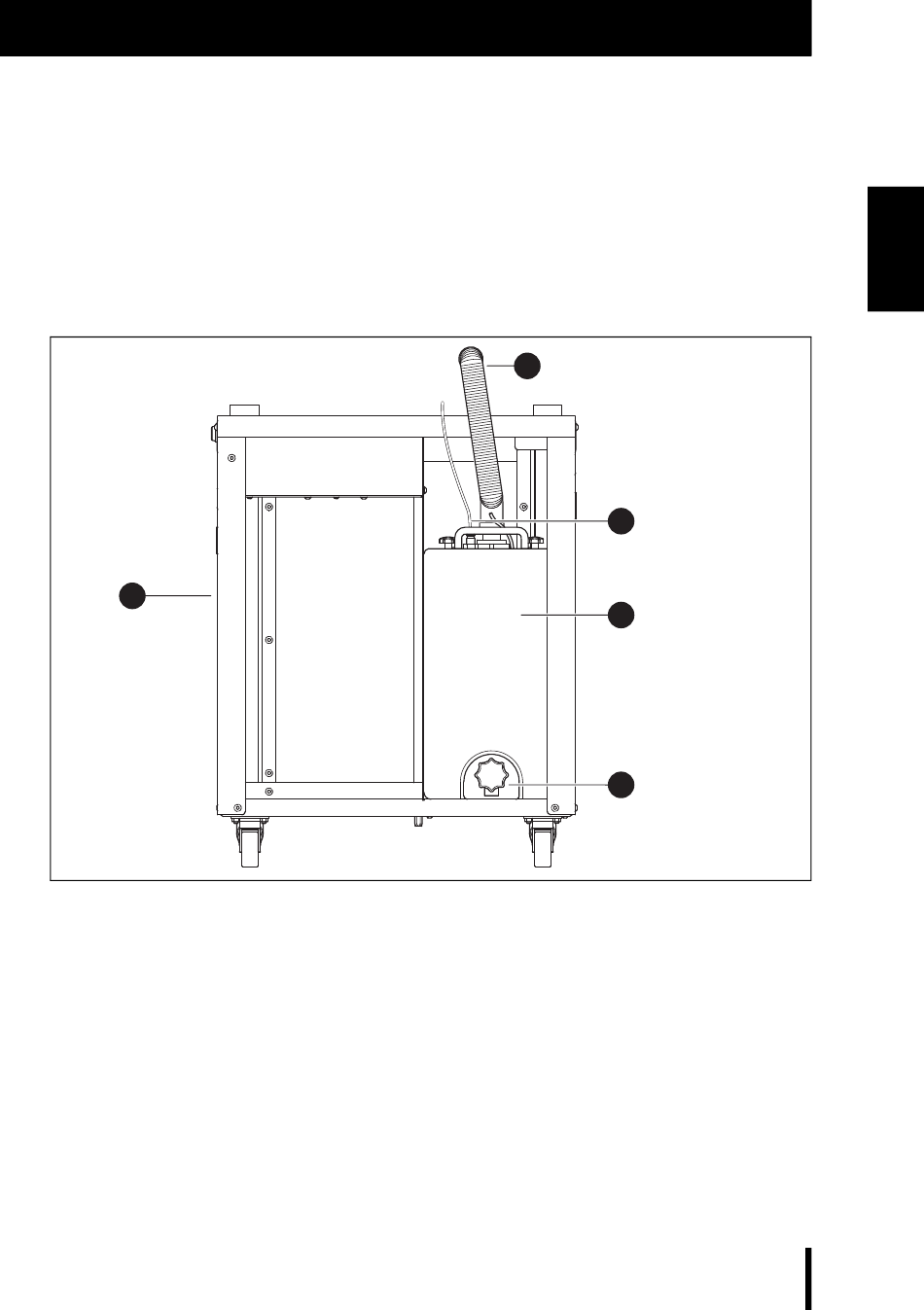

Fig. 4 Supply unit in set-up cart
1 Set-up cart
2 C/L drain
3 C/L supply line
4 Supply unit
5 C/L drain cock
M A C H I N E S P E C I F I C A T I O N S
tom compartment of the set-up cart. An extrac-
tion system can also be accommodated there, if
required.
2
4.2.4 Extraction
The extraction recommended by the manufac-
turer is required for dry processing with the mill-
ing machine. It is equipped with a special filter bag
and a HEPA micro filter, which filters up to
99.97 % of fine dust particles (i.e. zirconium oxide
dust particles) and is classified in the fine dust par-
ticle category M.
The separate socket for the control cable allows
for automatic operation.
3
4
5
