INSTALLATION, SETTINGS OF THE NOVO SPEED FLEX

Fully read the procedure below before starting setting!

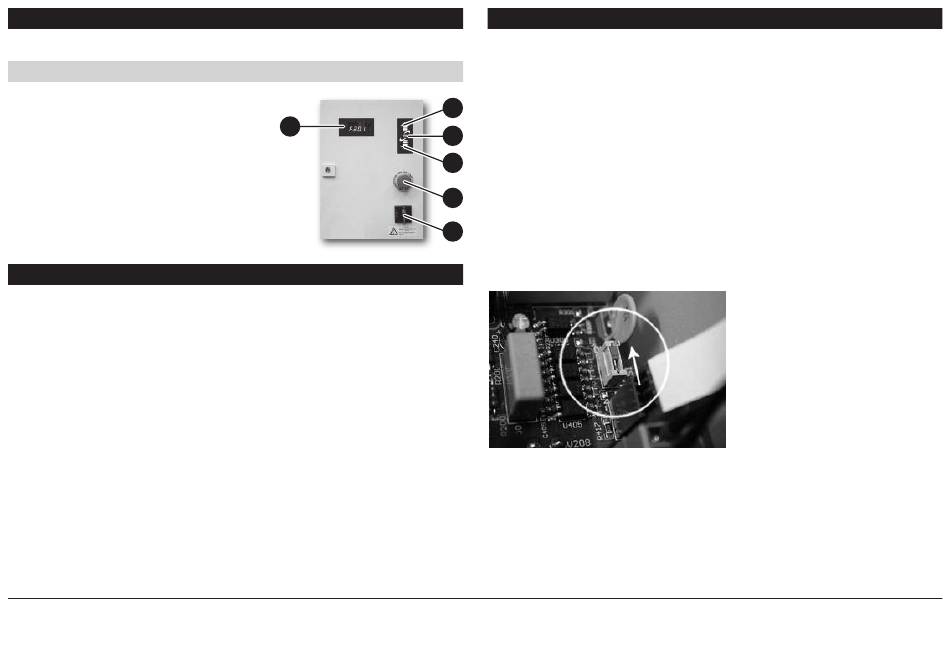

PROCEDURE FOR THE CONTROL
TST FUE 2 with program FUxE-NF V25-02.07
1 display
2 open
3 stop
4 close
5 emergency stop
6 main switch

GLOSSARY

DISPLAY
Group of 4 red characters (7-segment displays), visible with switched on voltage from the
control box. These give information concerning:
• status messages (opening, closing, crash, etc.)
• error messages
• parameters
PARAMETER
A PARAMETER is control function that can be set. To be able to set parameters the
dipswitch S1 (see fig.1) must be up *.
Parameters can concern :
• direction of rotation of motor
• stop positions of the door panel
• time settings
• operation of the door.
NOVOSPEED FLEX, TST FUE-2, Software : FUxE-NF V25-02-07
2
1
3
4
5
6

GENERAL INFORMATION CONCERNING PARAMETERS

• to enter parameter mode:
- switch off the supply voltage with the main switch (6), or pull the supply plug out of
the wall socket
- move the dip switch up, or down and up again if allready up (see figure 1)
Attention!
For safety reasons the ability to set parameters is automatically switched off after
approx. 30 minutes, even if S1 is up! (ON). This prevents third parties from inadver-
tently changing parameters if you have accidentally forgotten to put S1 down (OFF)
after setting parameters.
- switch on the supply voltage with the main switch (6) or put the supply plug in the
wall socket
Figure 1
DIP switch S1 (see printed circuit board top right)
Up = ON, down = OFF
3
