L&R Limit Threshold
Menu item for activating the limiter and setting the threshold value for the channels left and right (L&R). Activate the limiter and select the
desired threshold value with the EDIT rotary encoder (Off = limiter deactivated, threshold value -40 dBu to 10 dBu).
L&R Limit
Threshold= OFF
L&R Limit Hold
Menu item for setting the limiter hold time for the channels left and right (L&R). Use the EDIT rotary encoder to select the desired hold time
between 10 ms and 1000 ms.
L&R Limit
Hold = 100
PRESETS
To load a preset, press RECALL, select the desired preset (P1 to P6) with the rotary encoder and confirm the selection by pressing RECALL.
After a short loading time, the main display will reappear. The creation and naming of presets is possible with the PC software only.
RECALL PROGRAM
P1: PRESET 1

EDIT VIA PC SOFTWARE

Install the device driver and the editing software on a Windows computer with a USB 2.0 (or higher) port. Connect the device to the

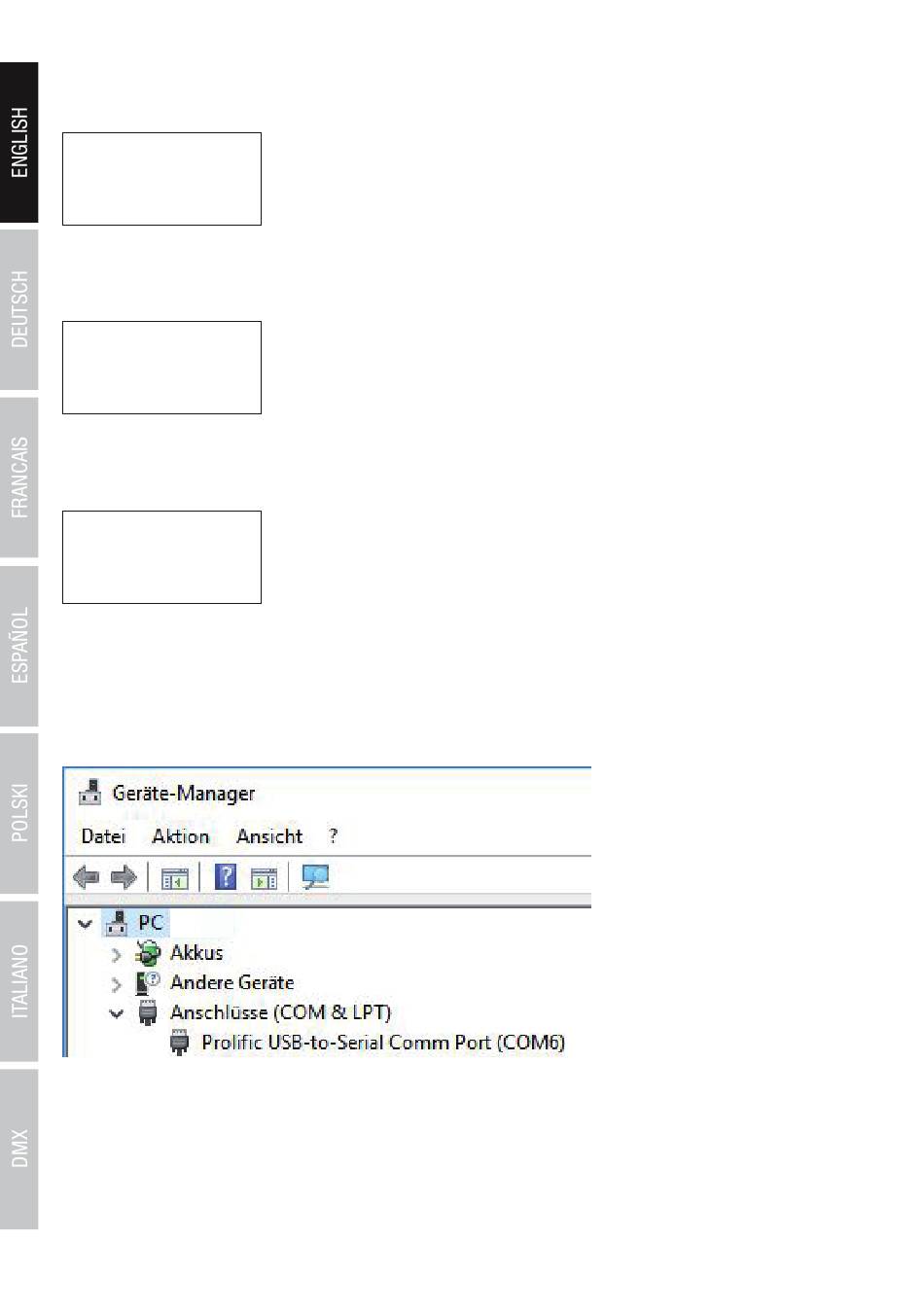

computer with a suitable USB cable and switch it on. Start the computer Device Manager and check the COM port number of the "Prolific
USB-to-Serial Comm Port" under "Ports (COM & LPT)". The COM port number must be a number between 1 and 10 (in the example, COM6)
in order to be able to create a connection between the computer and the device.
Start the editing software, set the COM Port number used by the device under "Config" and "RS232" (in the example COM6) and then click
OK. Tick the "Toolbar" box under "View" to display this, and then click on the red button to establish a connection (Connect). The "Disconnect"
button will turn blue to confirm that a connection has been successfully established ("Connect" button is greyed out). The device's display will
now show "ONLINE PC CONTROL" and control via the operating panel is locked. To disconnect the device, click the "Disconnect" button.
