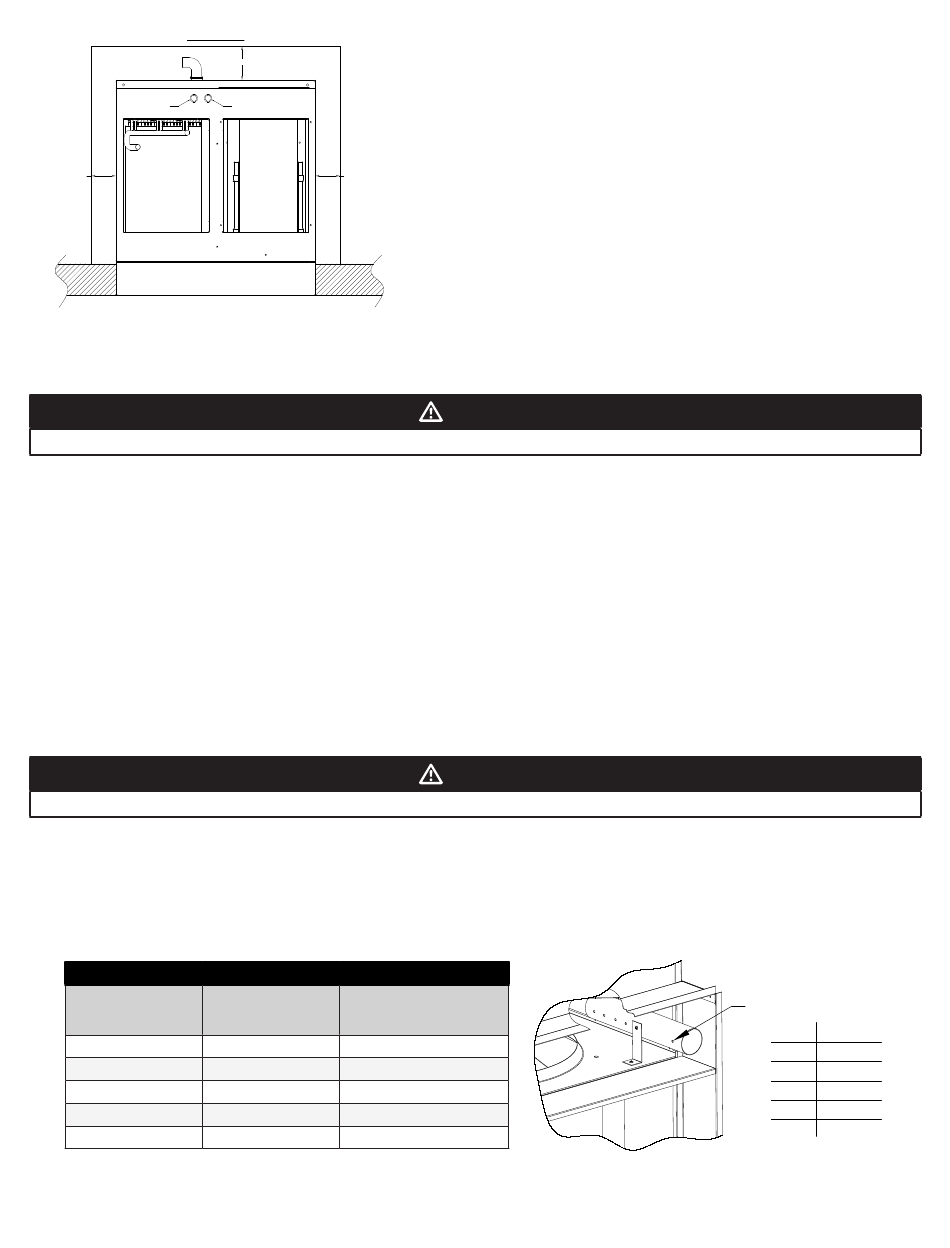

TOP VIEW
CONTROL WIRES
1" RECOMMENDED
Figure 2
B: WALL SLEEVE AND GRILLE INSTALLATION
Refer to installation instructions included with the wall sleeve kit for guidance in assembling and installing the wall sleeve and grille.
The sleeve will support the back of the unit.
C: VENTING
The Dynapack unit uses outside air for combustion and vents the exhaust products directly outside. The Dynapack unit cannot be vented
with other appliances. The venting system of the Dynapack unit cannot be modified or adjusted in any manner other than what is specified
in these instructions.
The installation must be planned before hand so that the unit exhaust vent location complies with local or national codes in regards to
distances between the unit vent and doors, operable windows, side walks, balconies, and patios. See the National Fuel Gas Code Z223.1
for the USA or Installation Code CANI-B149 for Canada. See figure 11 at the end of this chapter.
The Dynapack unit contains an adjustable vent. The vent must be adjusted based on the wall sleeve used for proper operation. See figure
3.
The Dynapack unit venting system is certified to operate at wind speeds up to 40 miles per hour.
D: VENT PIPE ADJUSTMENT
The vent pipe must be adjusted to match the depth of the wall sleeve.
Failure to properly adjust the vent can lead to exhaust recirculation and poor combustion.
1. The vent pipe adjustment is accessible from the condenser air discharge portion of the unit. The retaining screw for the vent pipe is
located to the right of the condenser fan.
2. Remove and retain the #10 sheet metal screw which attaches the vent pipe to its mounting bracket. See figure 3.
3. The vent extension tube contains six holes, each of which is intended for a particular wall sleeve depth. Use table 1 and figure 3 to
select the proper mounting hole for the vent extension tube.
4. Reinstall the #10 sheet metal screw to secure the vent extension tube and exhaust tube to its mounting bracket.
DETERMINING HOLE SETTING
Wall Sleeve Stock
Number
1736 or 1741
1737 or 1742
1738 or 1743
1739 or 1744
1740 or 1745
4" MIN. TO DOOR
ELECTRICAL POWER
1" RECOMMENDED
Approximate Length the
Hole # Vent Extends from the
A 4
B 6
C 8
D 10
E 12
Table 1
The Dynapack unit is approved for indoor installation only and must be
installed with one of the factory supplied wall sleeves. The unit is intended to
be installed in a closet or equipment room. The unit is certified for 0" clearance
to the cabinet sides, cabinet back and the first 3 feet of the supply duct.
However for accessibility reasons it is recommended to maintain at least 1"
clearance on the sides for proper installation and servicing. For closet
installations allow 4" clearance from the unit door panels to the closet door.
For equipment room installations allow 24"clearance from the unit door panels
to a wall for servicing.
The wall sleeve and grille is intended to be installed flush with the exterior wall.
The unit, wall sleeve, and grille are required to be installed certain distances
from adjacent doors, operable windows and shrubbery. See figure 11 at the
end of this chapter..
CAUTION: The unit must be installed level front to back and side to side.
Adjust front leveling legs as necessary.
CAUTION
CAUTION
Cabinet
/ inches
3
8
/ inches
3
8
/ inches
3
8
/ inches
3
8
/ inches
3
8
5
E
SHIPPING POSITION
D
C
B
A
Figure 3
Suburban DynaPack S & H Series Owner's Manual 06/2020 Rev.2
NOMINAL
POSITION WALL SLEEVE
DEPTH
A
5 7/8"
B
7 7/8"
C
9 7/8"
D
11 7/8"
E
13 7/8"
