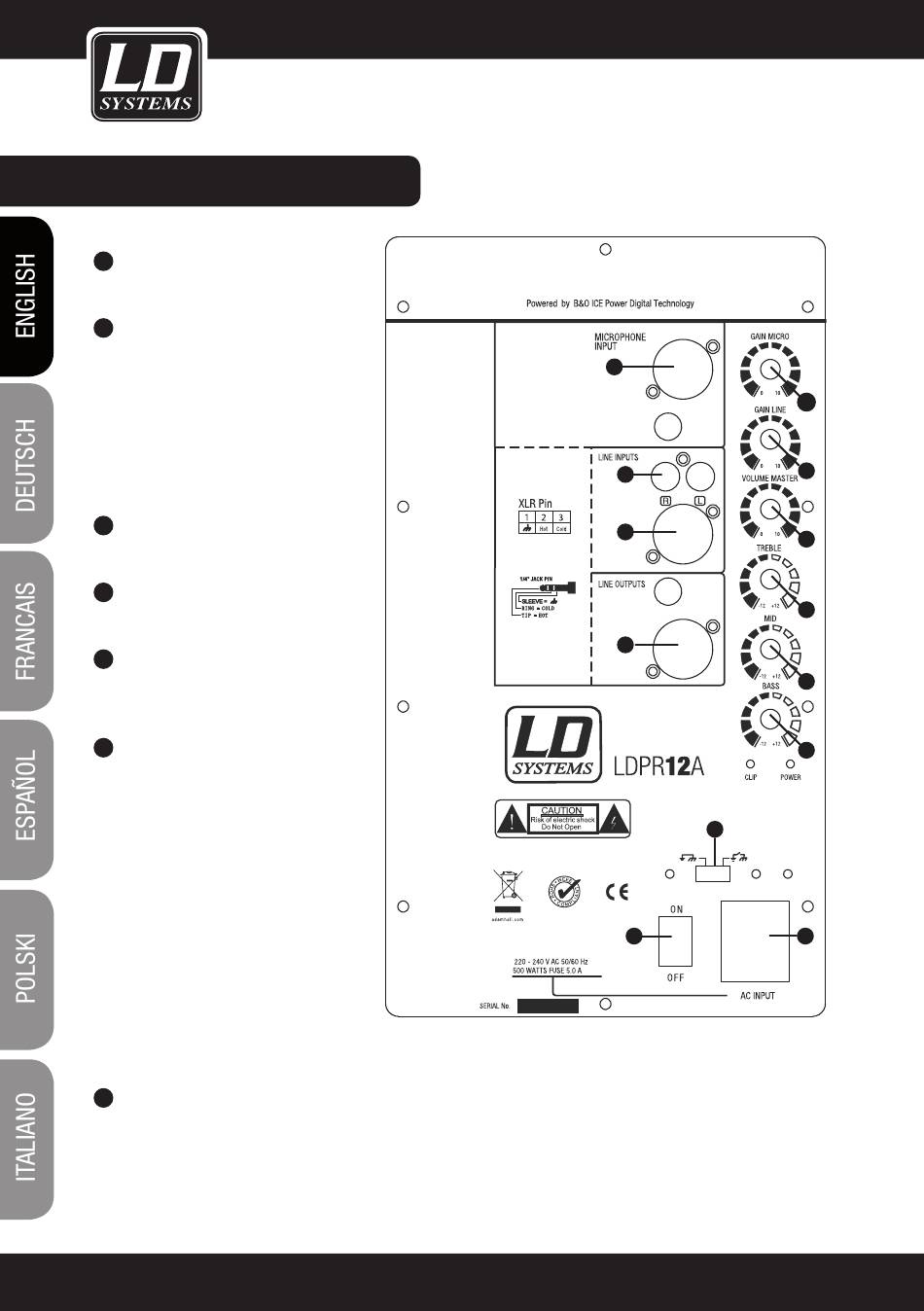

SYSTEM FUNCTIONS:

1
MICROPHONE INPUT
Balanced XLR/jack microphone input
2 GAIN MICRO
Adjust the input sensitivity of the mi-
crophone input with this gain control.
Please note that microphones that
require phantom power (condenser
microphones, for example) will not
work on these inputs because they do
not supply phantom power.
3
LINE INPUTS
Balanced XLR/jack mono line input.
4 LINE INPUTS
Unbalanced stereo RCA line inputs.
5 GAIN LINE
Adjust the input sensitivity of the line
input with this gain control.
6 LINE OUTPUTS
Balanced XLR and jack mono outputs.
The mixed input signals are split be-
fore the power amplifier unit and sent
to this output. You can use this output,
for example, to drive additional active
speakers or amplifiers with the mixed
input signals.
Important: This output signal is split
our before the master tone controls
and master volume (controls 7, 8
and 10 with the Revolver 8" and
10" speakers and controls 7,8,9 and
10 with the Revolver 12" and 15"
speakers, see picture), so it is not affected by these settings.
7 VOLUME MASTER
Use this control to adjust the overall volume of the power amplifier.
6
1
4
3
6
12
14
2
5
7
8
9
10
13
