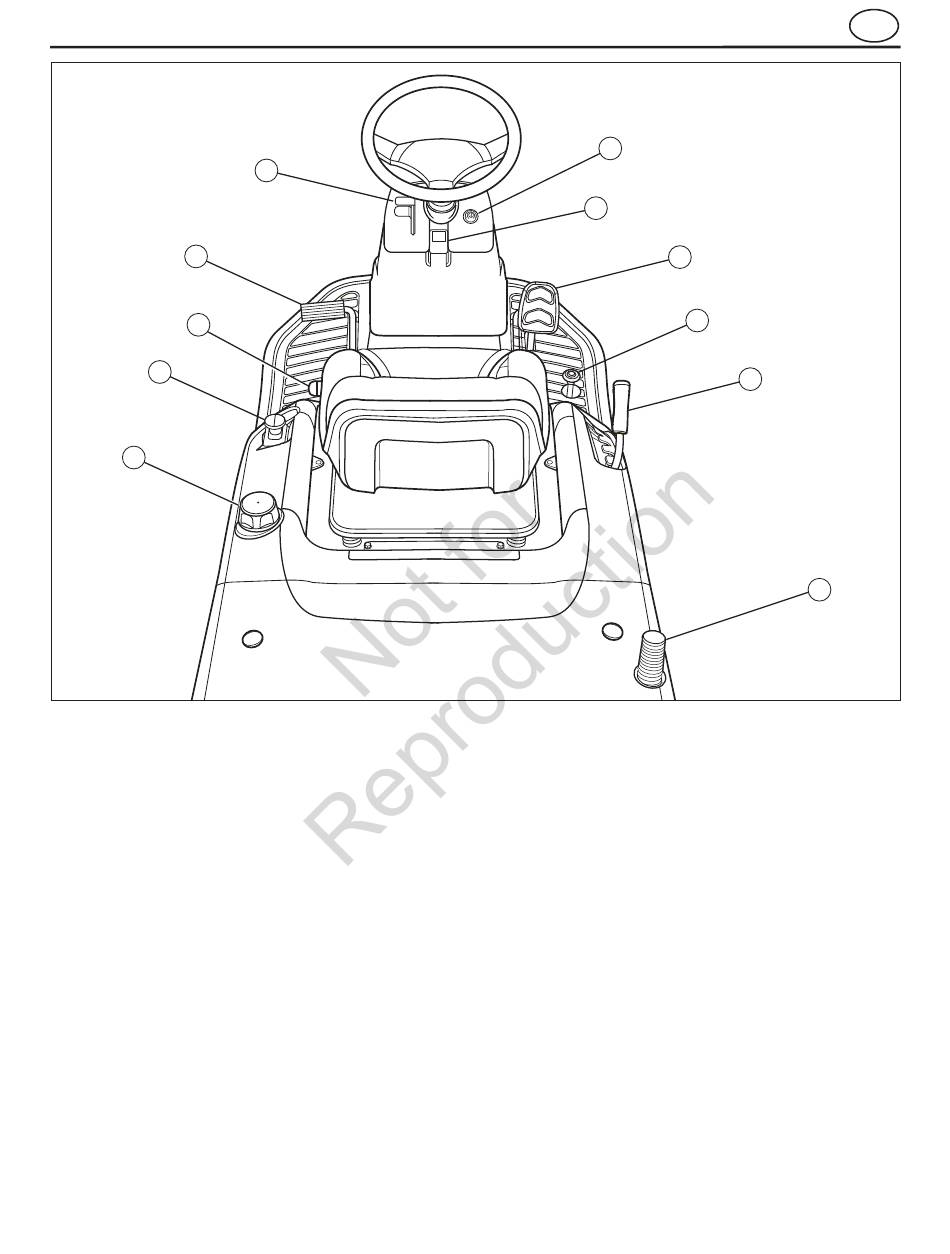

LOCATION OF CONTROLS

Throttle Control Lever (1): Use the throttle control
lever to increase or decrease engine speed. Move the
throttle up to increase engine speed and down to
decrease engine speed. Always operate at
FULL throttle.
Clutch/Brake Pedal (2): The pedal has two functions.
The first function is a clutch. The second function is
a brake.
Ignition Switch (3): Use the ignition switch to start
and stop the engine. Never leave the ignition switch in
the RUN position with the engine stopped. This drains
the battery.
Parking Brake Knob (4): The parking brake knob is
used to lock the parking brake when the tractor is
stopped. Fully depress the brake pedal and pull up on
the knob to engage the parking brake.
Forward Speed Control Pedal (5): The tractor's
forward ground speed is controlled by the forward
speed control pedal. Depress the pedal to increase
forward ground speed.
1
3
4
Reverse Speed Control Pedal (6): Use the reverse
ground speed pedal to control the reverse ground
speed of the tractor.
Lift Lever (7): The lift lever controls the mower cutting
height. There are six cutting height levels available (1 -
Lowest Cut, 6 - Highest Cut).
Blade Rotation Control (8): Use the blade rotation
control to start and stop the rotation of the blade. Pull
up on the switch to engage the blade rotation control
and push down to disengage.
Fuel Tank (9): To add fuel, remove the filler cap. Be
sure to leave room for heat expansion.
Grass Bagger Handle (10): The grass bagger handle
opens the bagger so that it can be emptied and closed
for mowing.
Seat Adjustment Lever (11): Pull up on the lever to
adjust the location of the seat. Release lever to lock
seat in place.
5
6
7
10
