05. ASSEMBLY

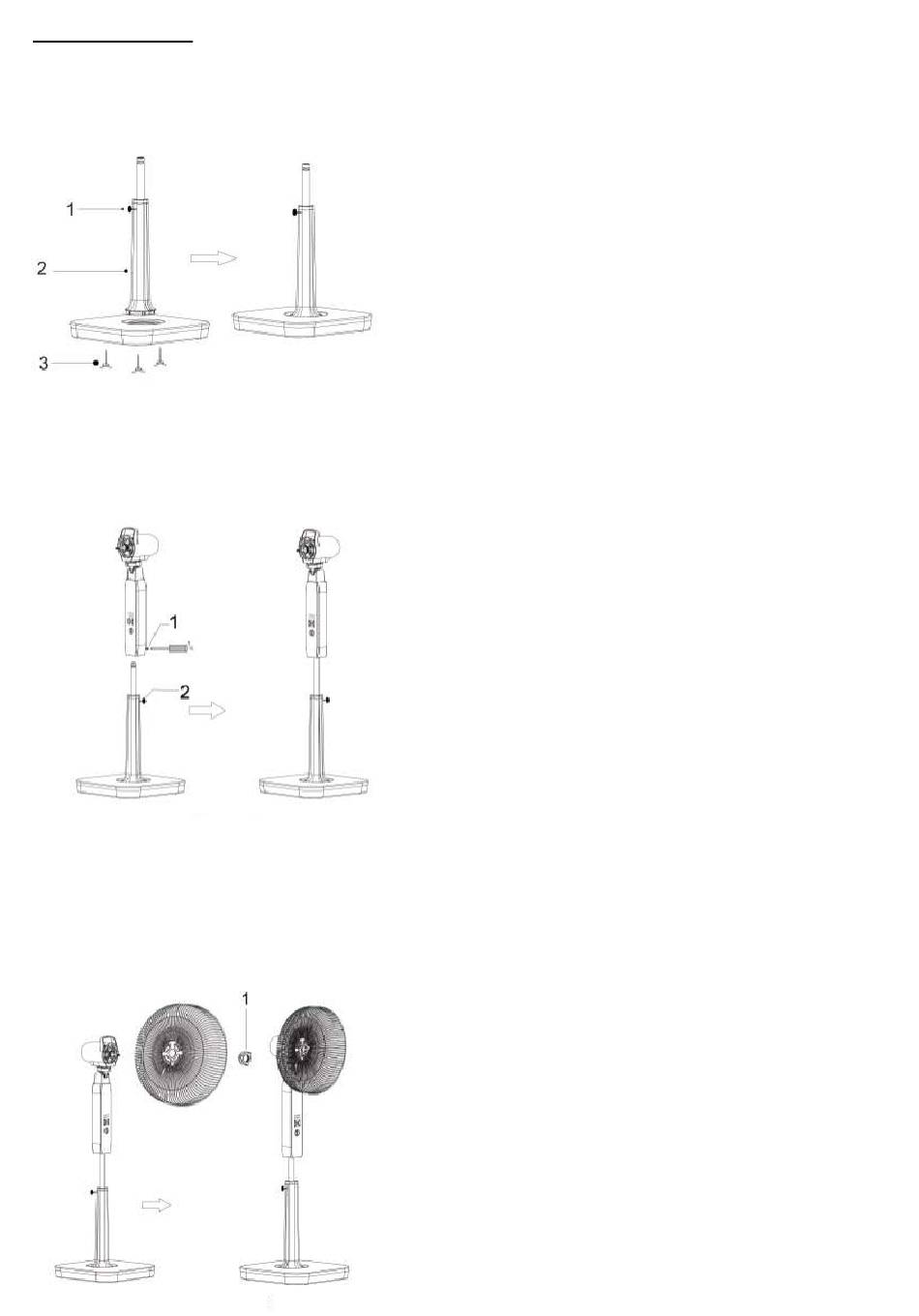

To assemble your stand fan please follow the steps below :
TUBE AND BASE ASSEMBLY
Align the holes of the tube with those of the base of the fan.
The tube must be perpendicular to the base. Then tighten
the screws No.3 (clockwise). Be sure to tighten the screws
properly.
The tube is telescopic, you can adjust the height using the
screw No.1.
FAN BODY INSTALLATION
Install the fan body onto the tube and tighten the screw No.1
(clockwise). Be sure to tighten the screw properly.
If necessary, adjust the height of the tube using the screw
No.2.
INSTALLING THE REAR GRILL
Place the rear grill correctly on the motor unit (only one
position possible, the 3 pins of the motor unit must fit into the
notches of the grill) and tighten the rear grill locking nut No.1
(clockwise). Be sure to tighten the nut properly.
