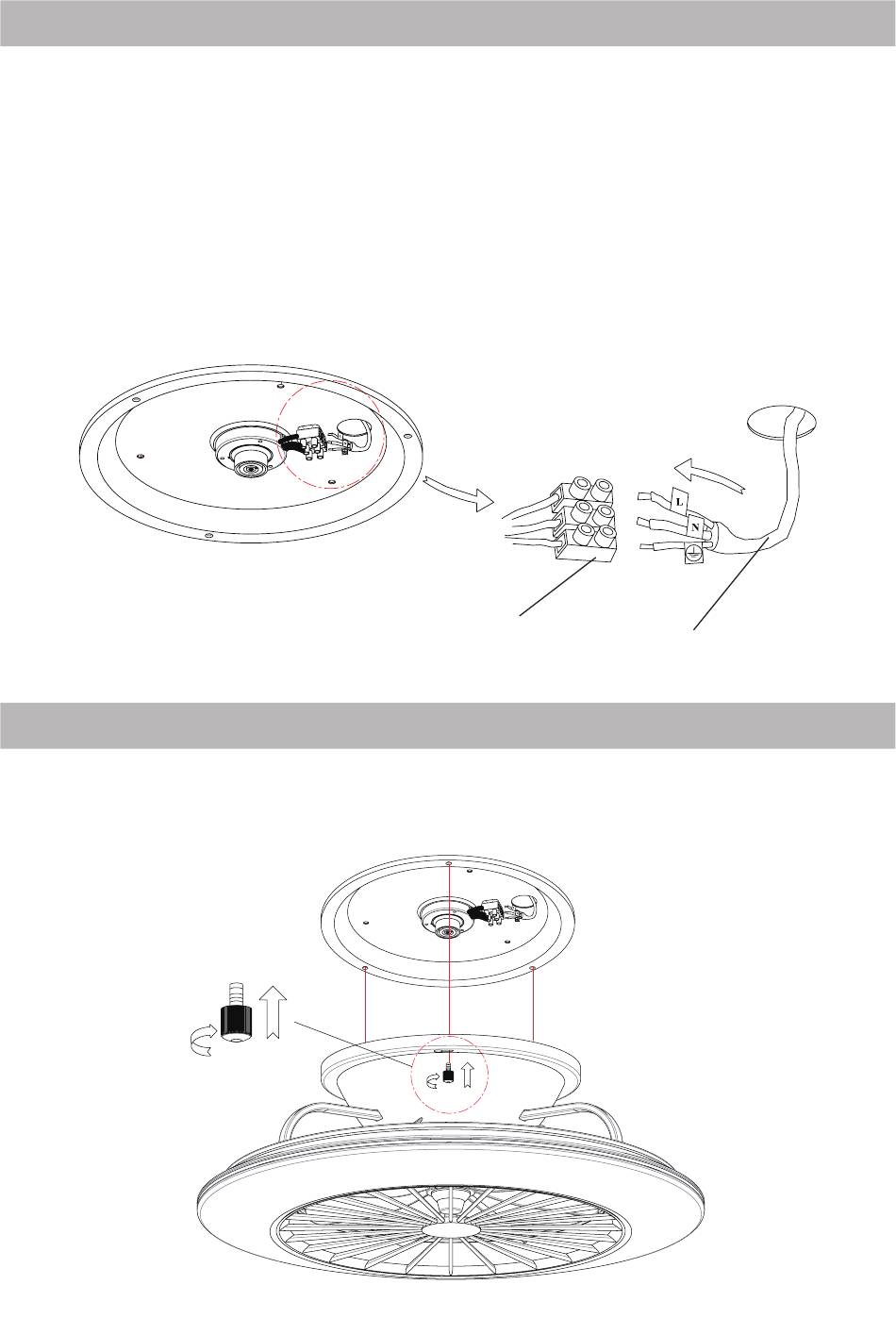

8. ELECTRICAL CONNECTIONS

WARNING : Before proceeding to the electrical connections, carefully read the safety instructions in
this manual. Before any electrical connections, switch off all power and restart only when the instal-
lation is completed. Electrical connections must be made in accordance with current regulations and
by a qualified electrician.
By using the connecting terminals provided on the support :
- Connect the phase of the ceiling to the phase of the support in the domino L (LINE : black or brown wire of
the support).
- Connect the neutral of the ceiling with the neutral of the support in the domino N (NEUTRAL : blue wire of
the support).
- Connect the ground wire of the ceiling to the ground wire of the support in the domino E (EARTH : yellow
and green wire of the support).

9. ASSEMBLY

Take the motor block and align the holes of the support with the notches on the motor block. Secure the motor
block using the 3 screws provided (turn the motor block if necessary so that the screws lock in the notches
before tightening them).
20
Terminals
Ceiling power supply
wires
