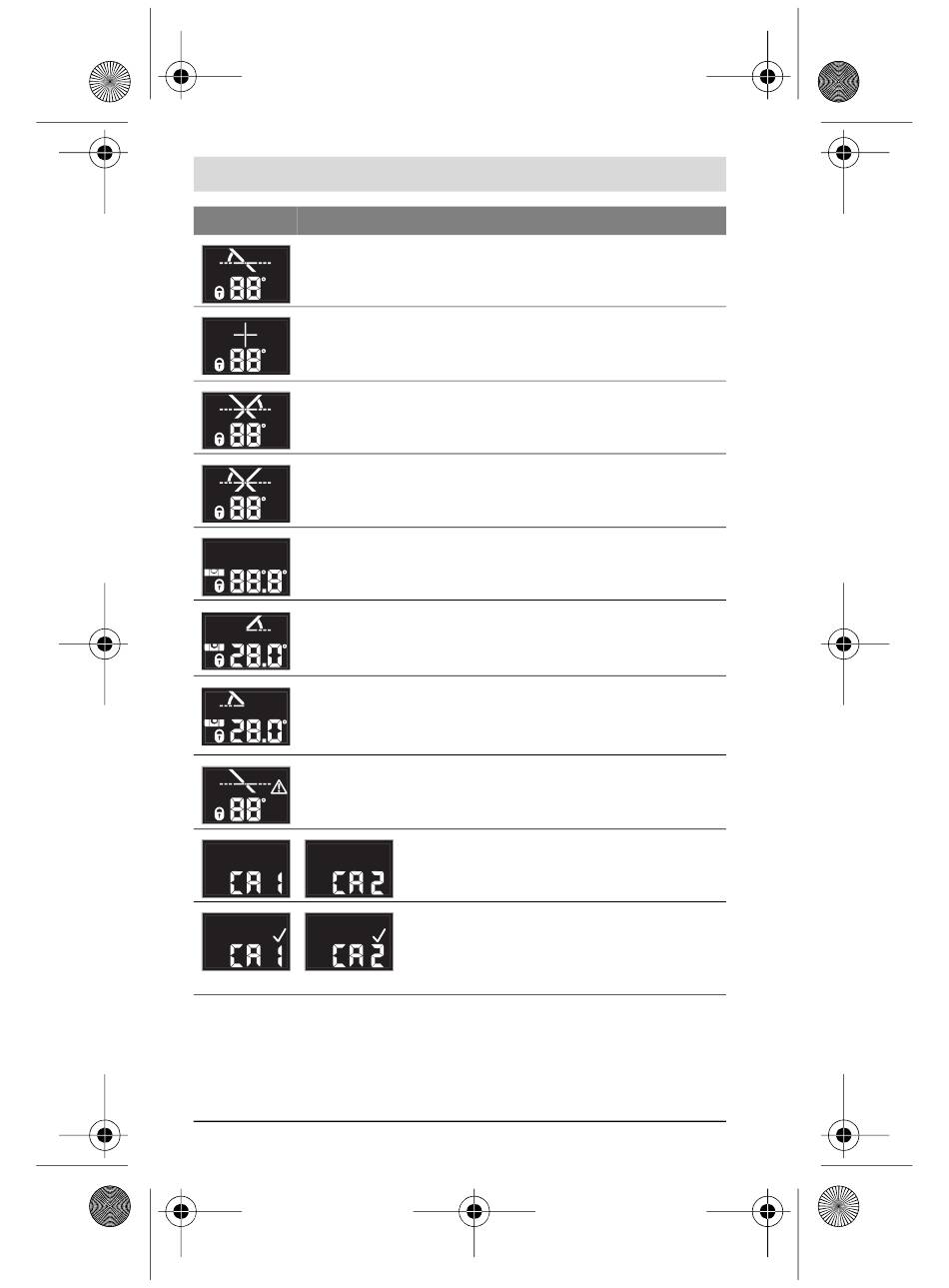

Indication Mode
Horizontal mode. The measuring tool is tilted to the
right.*
Cross-line mode (see figure D): The measuring tool gen-
erates two crossed laser lines that can be aligned as re-
quested, and must not run vertical to each other.
Cross-line mode. The measuring tool is tilted to the left.*
Cross-line mode. The measuring tool is tilted to the right.*
Digital spirit level. The measuring tool checks horizontal
or vertical like a spirit level. Laser lines are not projected.
Digital spirit level. The measuring tool is tilted to the left.
The smallest indicated angle is 0.1 °.
Digital spirit level. The measuring tool is tilted to the
right.
The smallest indicated angle is 0.1 °.
The tilt angle of ±10 ° forwards (in the direction of the la-
ser) or backwards (in the direction of the display) is ex-
ceeded (display flashes). The laser line goes out.
* Tilt angle h and laser lines are only indicated from an incline of > ±2 °.
1 618 C00 93G | (23.1.14)
The calibration is active (display flashes).
The calibration is completed.
