Product Dimensions
•
The depth from the front of the door (w/o door handles) to the
back of the refrigerator chassis is 28" (71.1 cm).
•
The depth of the cabinet less the door is 24 1/8" (61.3 cm).
•
The power cord is 60" (152.4 cm) long.
•
The height from the top of the refrigerator to the floor is
70 1/8" (178.1 cm), 71 1/8" (180.7 cm) with the leveling legs
in the fully extended position.
•
The refrigerator width from edge to edge is 35 5/8" (90.5 cm).
Tools and Parts
Make sure that you have the necessary tools and materials
available for a proper installation:
•
Flat-blade screwdriver set
•
Phillips head screwdriver set
•
7/16" and 1/2" open-end wrenches or two adjustable
wrenches
•
Nut driver set or socket set
•
Electric drill with 1/4" drill bit
•
1/4" (6 mm) copper tubing for the water line. Provide sufficient
length to allow for a minimum of a 24" (61.0 cm) diameter
service loop.
•
Compression nut and compression sleeve to connect to
the water supply valve. A compression nut and sleeve are
included with the refrigerator to connect the refrigerator side
of the line.
•
Copper tubing cutter
•
Level - 2' (0.6 m) and 4' (1.2 m) recommended
•
Appliance dolly able to support 350 lbs (159 kg) and
adequate manpower to handle the weight of the appliance
•
Plywood or cardboard to protect finished flooring
Location Requirements
Your Dacor refrigerator can be recessed in an opening between
cabinets or installed at the end of a cabinet run using a side panel
to enclose the refrigerator.
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
IMPORTANT:
•
Observe all governing codes and ordinances.
•
To ensure proper ventilation for your refrigerator, allow for
1/2" (1.3 cm) space on each side and at the top. Allow for a
1" (2.5 cm) space behind the refrigerator.
2
Installation Specifications
•
When installing your refrigerator next to a fixed wall, leave
2 1/2" (6.4 cm) minimum on the hinge side to allow for the
door to swing open.
•
This refrigerator is intended for use in a location where the
temperature ranges from a minimum of 55°F (13°C) to a
maximum of 110°F (43°C). The preferred room temperature
range for optimum performance, which reduces electricity
usage and provides superior cooling, is between 60°F (15°C)
and 90°F (32°C). It is recommended that you do not install
the refrigerator near a heat source, such as an oven or
radiator.
•
The floor must be able to support the refrigerator's weight
of more than 350 lbs (159 kg) and the contents of the
refrigerator.

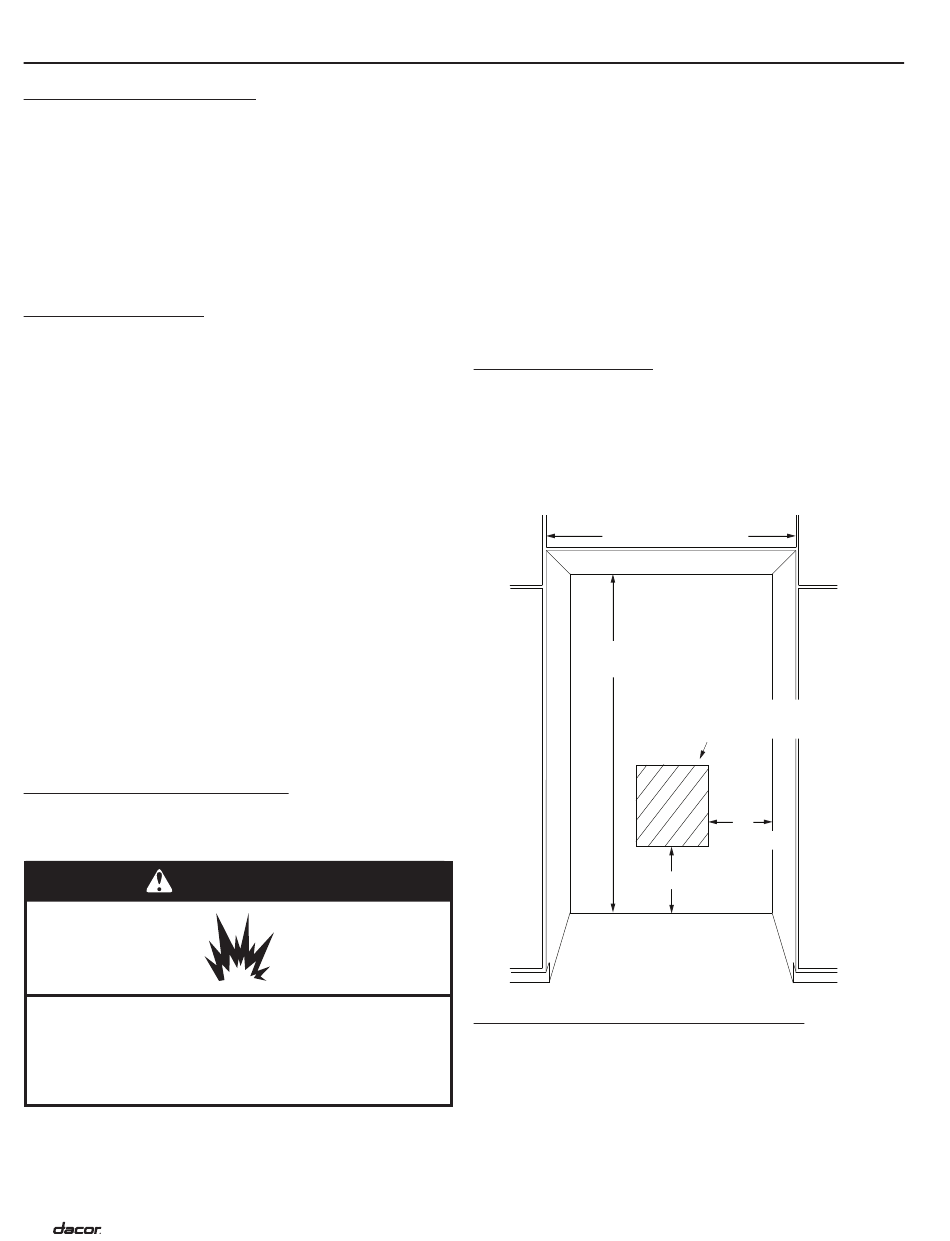

Cabinet Layout
•
Locate the refrigerator so that it may easily be pulled out from
the wall if service becomes necessary.
•
The plumbing for the water line can come through the floor
flush to or from the back wall. Install the water valve in a
location that allows it to be turned off without moving the
refrigerator out in the event the refrigerator or water line
requires service.
36 5/8" min. (93.0 cm)
70 5/8" min.
(179.4 cm)
12" (30.5 cm)
Water Supply Requirements
•
Plumbing shall be installed in accordance with the
International Plumbing Code and any local codes and
ordinances.
•
A cold water supply with water pressure of between 35 and
120 psi (241 and 827 kPa) is required to operate the water
dispenser and ice maker. If you have questions about your
water pressure, call a licensed, qualified plumber.
Suggested electrical location
approximate dimensions
12"
(30.5 cm)
