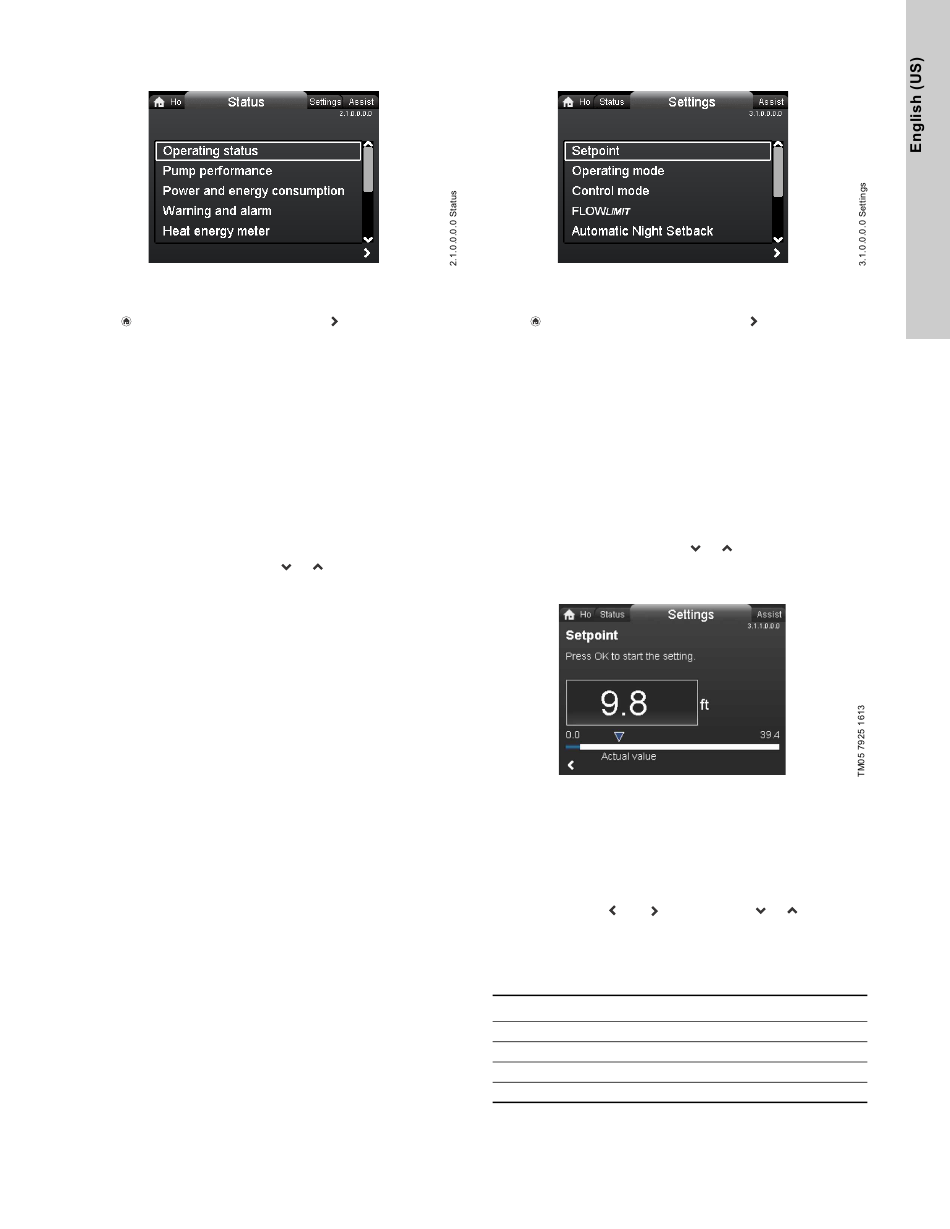

12. "Status" menu

Navigation
Home > Status
Press and go to the "Status" menu with
"Status" menu
This menu offers the following status information:
Operating status
•
Pump performance
•
Power and energy consumption
•
Warning and alarm
•
Heat energy meter
•
Work log
•
Fitted modules
•
Date and time
•
Pump identification
•
Multi-pump system.
•
Navigate between submenus with
.
or .

13. "Settings" menu

Navigation
Home > Settings
Press and go to the "Settings" menu with
"Settings" menu
This menu offers the following setting options:

Setpoint

•
Operating mode
•
Control mode
•
• FLOW
LIMIT
Automatic Night Setback
•
Relay outputs
•
Setpoint influence
•
Bus communication
•
General settings.
•
Navigate between submenus with
13.1 Setpoint
Navigation
Home > Settings > Setpoint
Setpoint
Set the setpoint so that it matches the system.
Setting:
1. Press [OK] to start the setting.
2. Select digit with and and adjust with
3. Press [OK] to save.
A too high setting may result in noise in the system whereas a too
low setting may result in insufficient heating or cooling in the
system.
Control mode
Proportional pressure
Constant pressure
Constant temperature
Constant curve
.
or .
or .
Measuring unit
m, ft
m, ft
°C, °F, K
%
