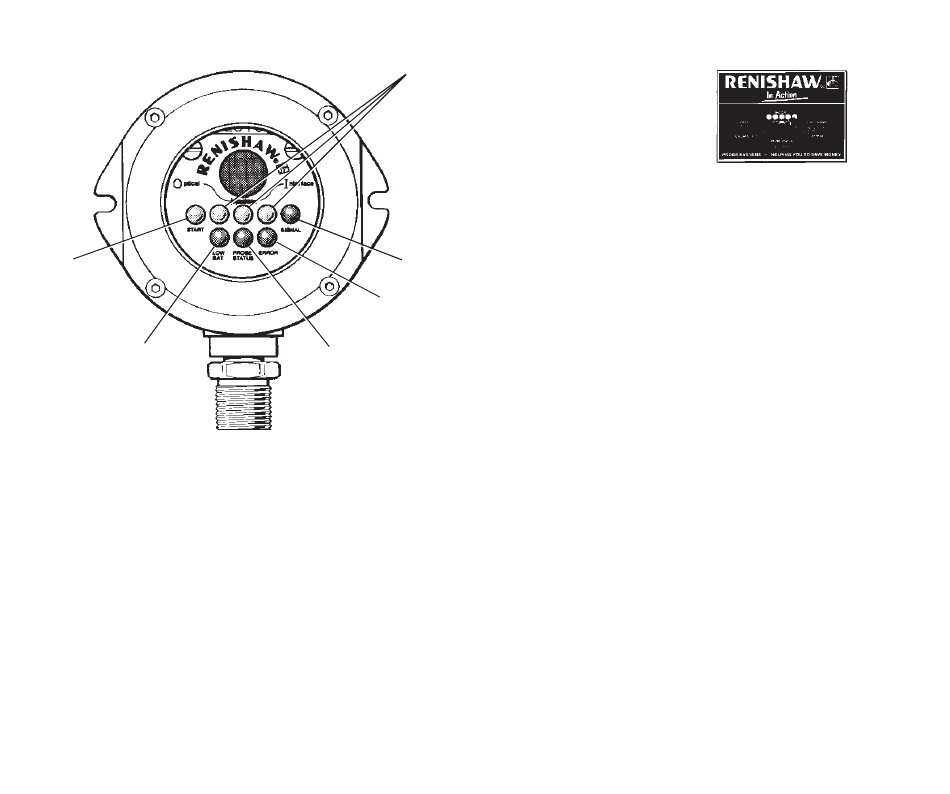

3. LED (clear x 3)
These LEDs transmit infrared control
signals to the probe.
4. LED (red) – LOW BAT
When the OMP battery voltage falls
below a set level, the low battery output
device changes state, and causes the
LOW BAT LED to commence flashing
on and off four times per second.
Replace the OMP battery as soon as is
practicable after the LED starts flashing.
3
KEEP WINDOW
CLEAN
To fully maintain
effective signal
transmission
2
6
5. LED (red, green) – PROBE STATUS
5
This bi–colour LED is lit when the OMI is powered.
The change of colour of this LED will coincide with
the probe status output devices changing state.
6. LED (red) – ERROR
Lit when an error condition exists, i.e. optical beam
obstructed, probe out of optical range, probe has
switched off or battery is exhausted. When an error
condition exists, the probe status output will be held
in a triggered state and the probe status LED will
be RED.
The error LED illuminating will coincide with the
error output device changing state.
MAGNETIC LABEL
To assist the machine operator,
a summary of OMI LED activity
is provided on a magnetic
label, which may be attached
to the machine tool.
Green – Probe is seated.
Red – Probe is triggered or an error has
occurred.
