Installation; Positioning; Mounting - GeneralAire Elite Steam Manuel D'utilisation

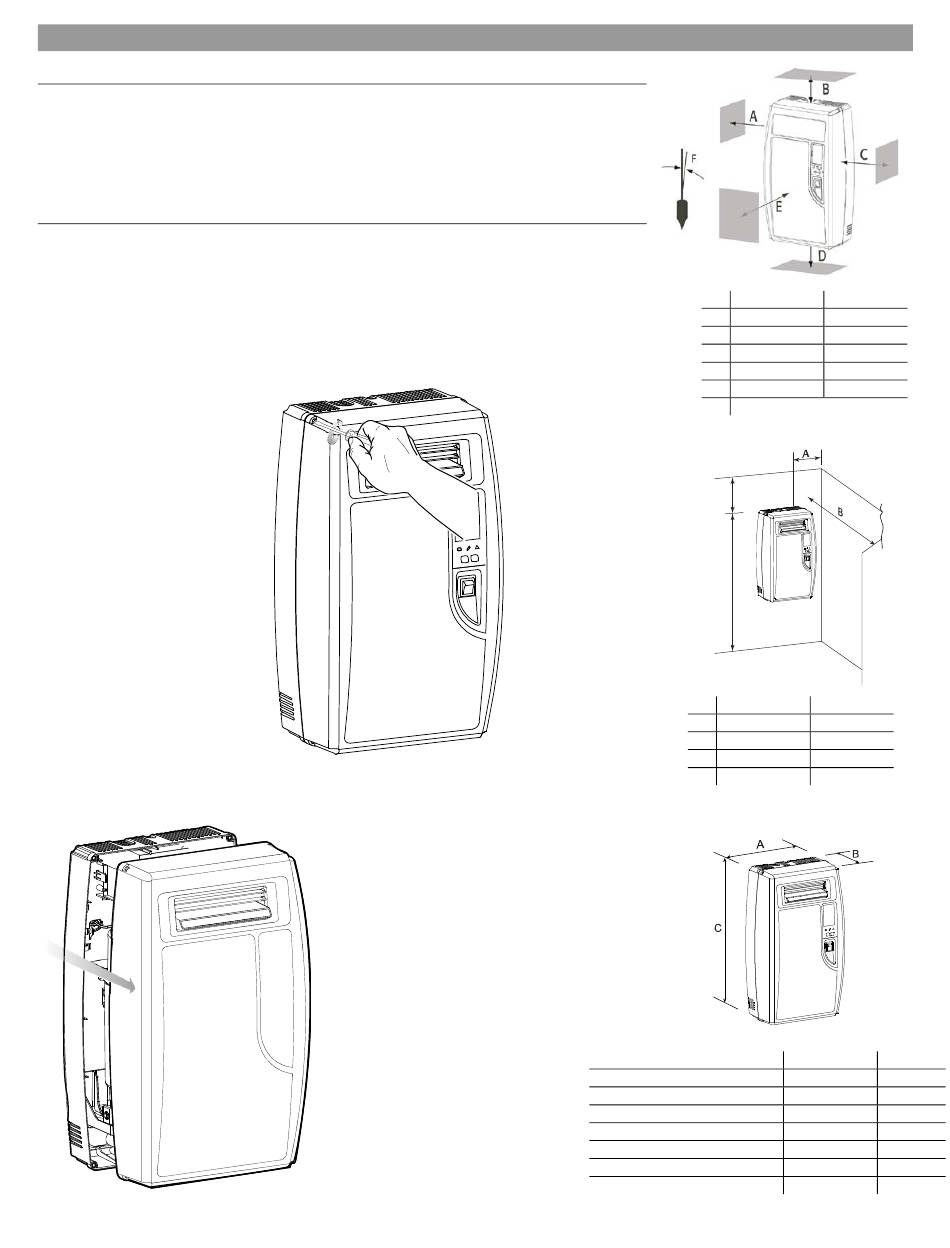

3.1

Positioning

The Elite Steam has been designed for wall mounting and, since it is an atmospheric
steam humidifier, should be placed close to the point where the steam will be used, to
minimize the steam hose length (and the amount of condensate). Certain clearances
must be maintained around the unit for safety and maintenance.

3.2 Mounting

3.2.1 Removing the front cover
The front cover is secured by four screws located at the four corners of the unit. Use a
Phillips head screwdriver to remove the four cover screws. Then simply pull the front cover
away from the back part of the unit. Return it in reverse order.
Be careful not to over-tighten the screws.
Fig. 3.d
Elite Steam +030222075 Rev. 4.0 – 2 Mar. 2015

3. INSTALLATION

Fig. 3.e
7
Duct Steam Injection
Millimeters
A (150 mm)
B (150 mm)
C (150mm)
D (150 mm)
E (600 mm)
F
Room Steam Discharge
D
C
Millimeters
A 150 mm
B 1800 mm
C 1800mm
D 600 mm
Unit Dimensions: Duct and Room Units
A
B
C
Weight empty
Weight packaged
Weight installed with water
Fig. 3.a
Inch
6"
6"
6"
6"
24"
max. 0.2°
Tab. 3.a
Fig. 3.b
Inch
6"
72"
72"
24"
Tab. 3.b
Fig. 3.c
Millimeters Inch
341 mm 13.5"
204 mm 8.1"
600 mm 23.7"
Kilograms Pounds
8kg 18 lbs
10kg 22 lbs
12kg 26 lbs
Tab. 3.c
