INSTALLATIE
4.1

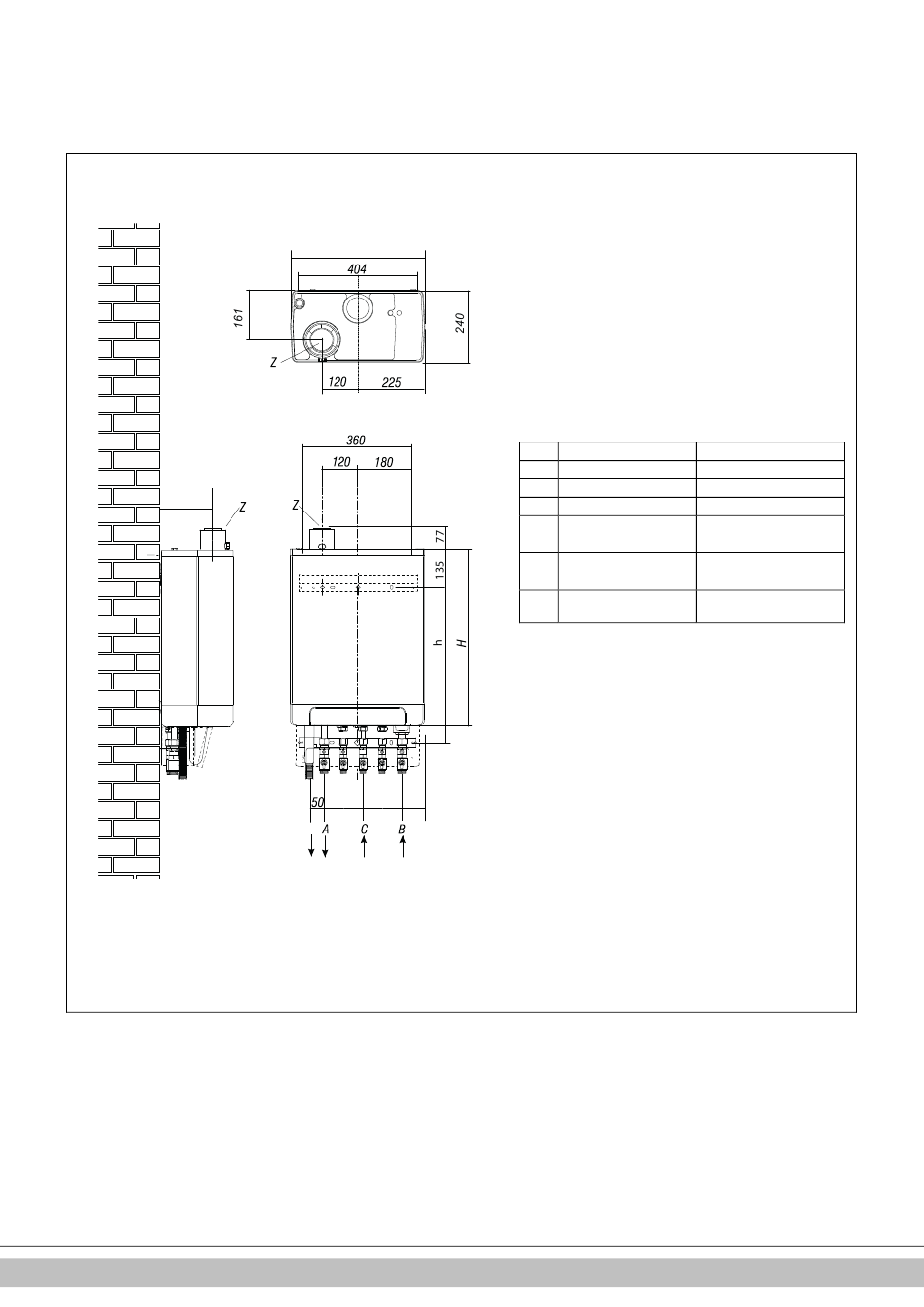

Inbouwmaten
Boiler rechtstreeks op de wand gemonteerd:
161
Daikin Europe NV
450
77
130
130
D
020601005
Toestel + montagebeugel
A =
Aanvoer CV
B =
Retour CV
C =
Gas
D =
Condensafvoer
h =
517mm
H =
590mm
Z =
Rookgasafvoer/luchttoev
oer
G ¾" (ext)
G ¾" (ext)
G ½" (int)
Ø dn25 (flexibel)
EHOBG12ABV1
EHOBG18ABV1
EHOBG12ABV1
EHOBG18ABV1
Ø60/100 (concentrisch)
