2-3. Battery

2-3-1. Battery Replacement

NOTICE: This UPS is equipped with internal batteries and user can replace the batteries
without shutting down the UPS or connected loads.(hot-swappable battery design)
Replacement is a safe procedure, isolated from electrical hazards.
CAUTION!! Consider all warnings, cautions, and notes before replacing batteries.
Note: Upon battery disconnection, equipment is not protected from power outages.

Remove front panel.

Remove the top cover of
battery box and replace
the inside batteries.

INFOSEC UPS SYSTEM – 15 rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
43
Hot Line Tel: +33 (0)2 40 76 15 82 – fax: +33(0)2 40 94 29 51 – hotline@infosec.fr – 04 17 AA 59 205 87

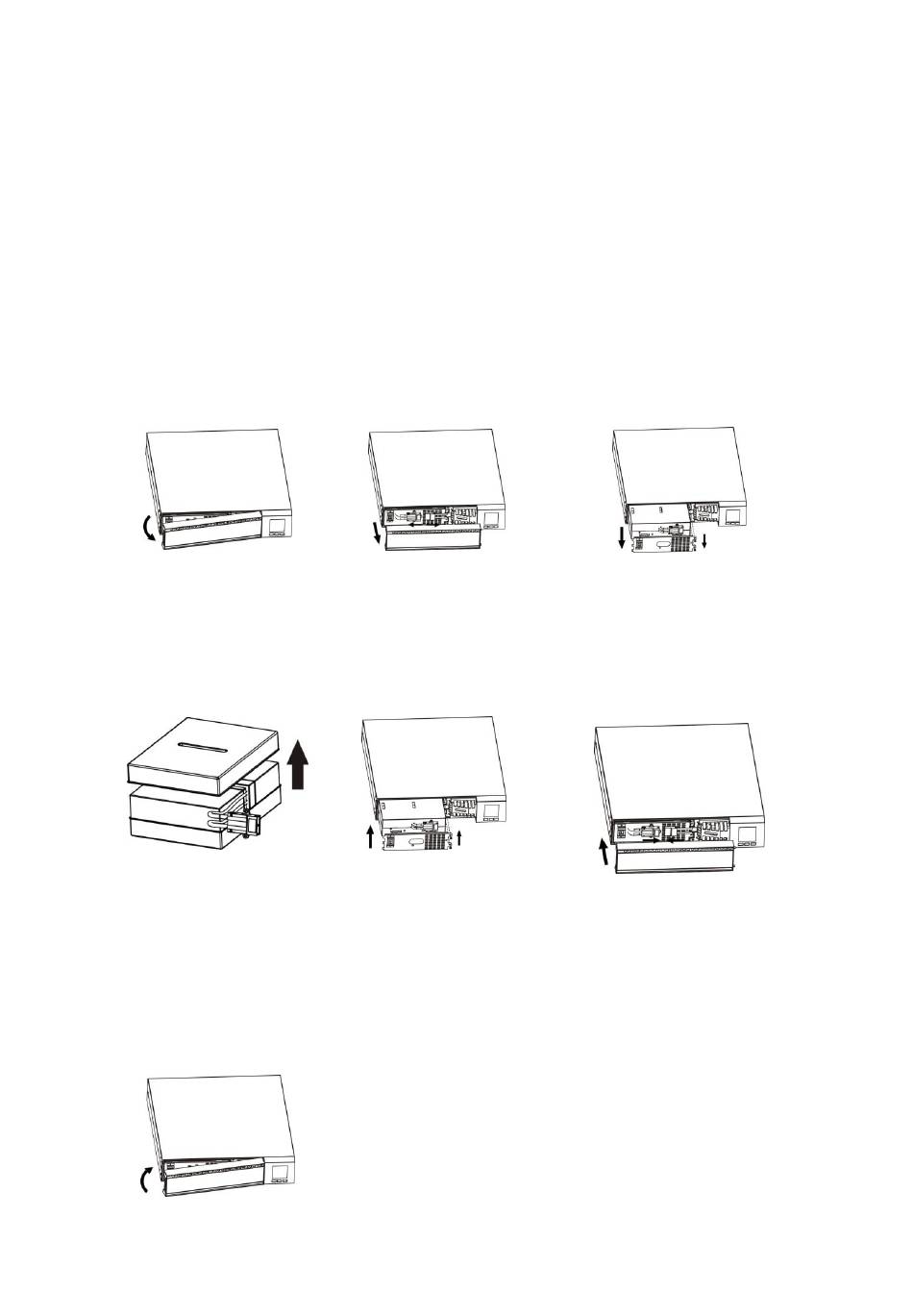

Step 1
Disconnect battery
Step 4
After replacing the
batteries, put the
battery box back to
original location and
screw it tightly.
Step 7
Put the front panel back to the unit.
Step 2

wires.
Step 5

Step 3

Pull out the battery box by
removing two screws on the
front panel.
Step 6

Re-connect the battery wires.
