5 - Gas Requirement
EN

IMPORTANT

NEVER REUSE
INSTALLING THIS RANGETOP.
To reduce the likelihood of gas leaks, apply teflon tape or
a thread compound approved for use with LP or Natural
gases to all threaded connections.
Apply a non-corrosive leak detection fluid to all joints and
fittings in the gas connection between the supply line shut-
off valve and the cooktop inlet.
Check for leaks!
Bubbles appearing around fittings and connections will
indicate a leak. If a leak appears, turn off supply line gas
shut-off valve, tighten connections, turn on the supply line
gas shutoff valve, and retest for leaks. Never test for gas
leaks with an open flame.
NEVER TIGHTEN TO MORE THAN 35 ft lbs OF
TORQUE
CAUTION
Do not attempt to attach the flexible connector directly to
an external pipe thread.
Connection requires flare union adapters.
For Massachusetts Installations:
1. Shut-off valve must be a "T" handle gas valve.
2. Flexible gas connector must not be longer than 36
inch.
3. Not approved for installation in a bedroom or a
bathroom unless unit is direct vent.
16
OLD CONNECTORS

Pressure Testing

The appliance must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
WHEN
pressures equal to or less than 1/2 PSIG (3.5 kPa).
This appliance, as well as its individual shut-off valve, must
be disconnected from the gas supply piping system during
any pressure testing of the system at test pressures in excess
of 1/2 PSIG (3.5 kPa).
When checking appliance regulator function, make certain
pressure of natural gas supply is between 6 and 14 inches
of water column or, if converted for LP gas, between 11 and
14 inches.
THE PRESSURE TESTING SHOULD BE PERFORMED BY
MEANS OF THE INJECTOR THREAD ZONE

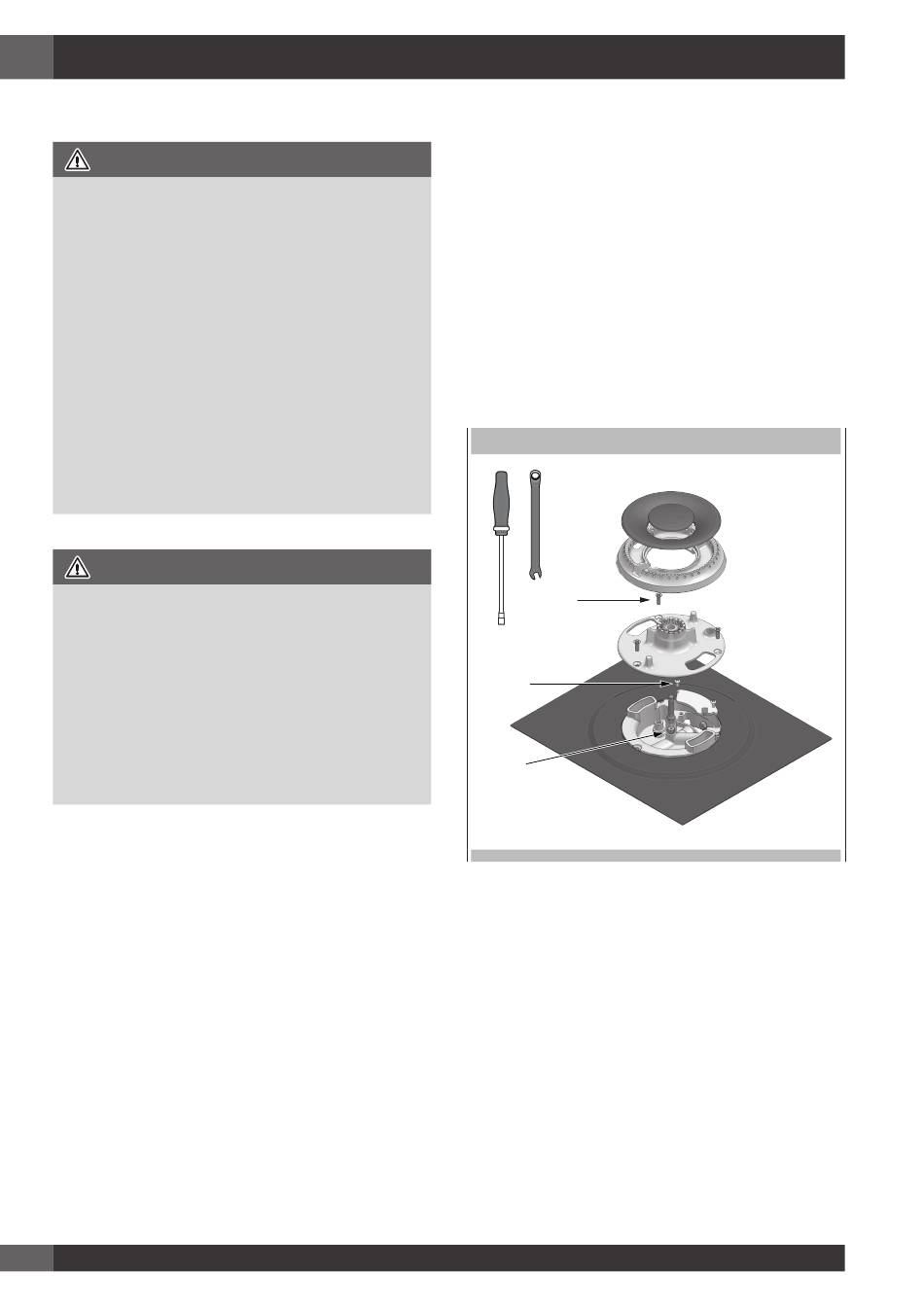

EXPLODED VIEW OF BURNER
2
A

Pressure Test Method

• Remove grate and burner cap (1).
• Remove aluminum gas spreader (2).
• Temporarily remove the injectors (A).
• Connect the pressure Test instrument into injector holder
thread zone (M6x0,75).
• Check if the cooktop has the correct pressure.
• Fix the injector removed for testing and replace the parts
in the right position.
1
