Check That You Have All the Parts
• Base cover .................. 1
• Screws
........... 4
(4 x 8)

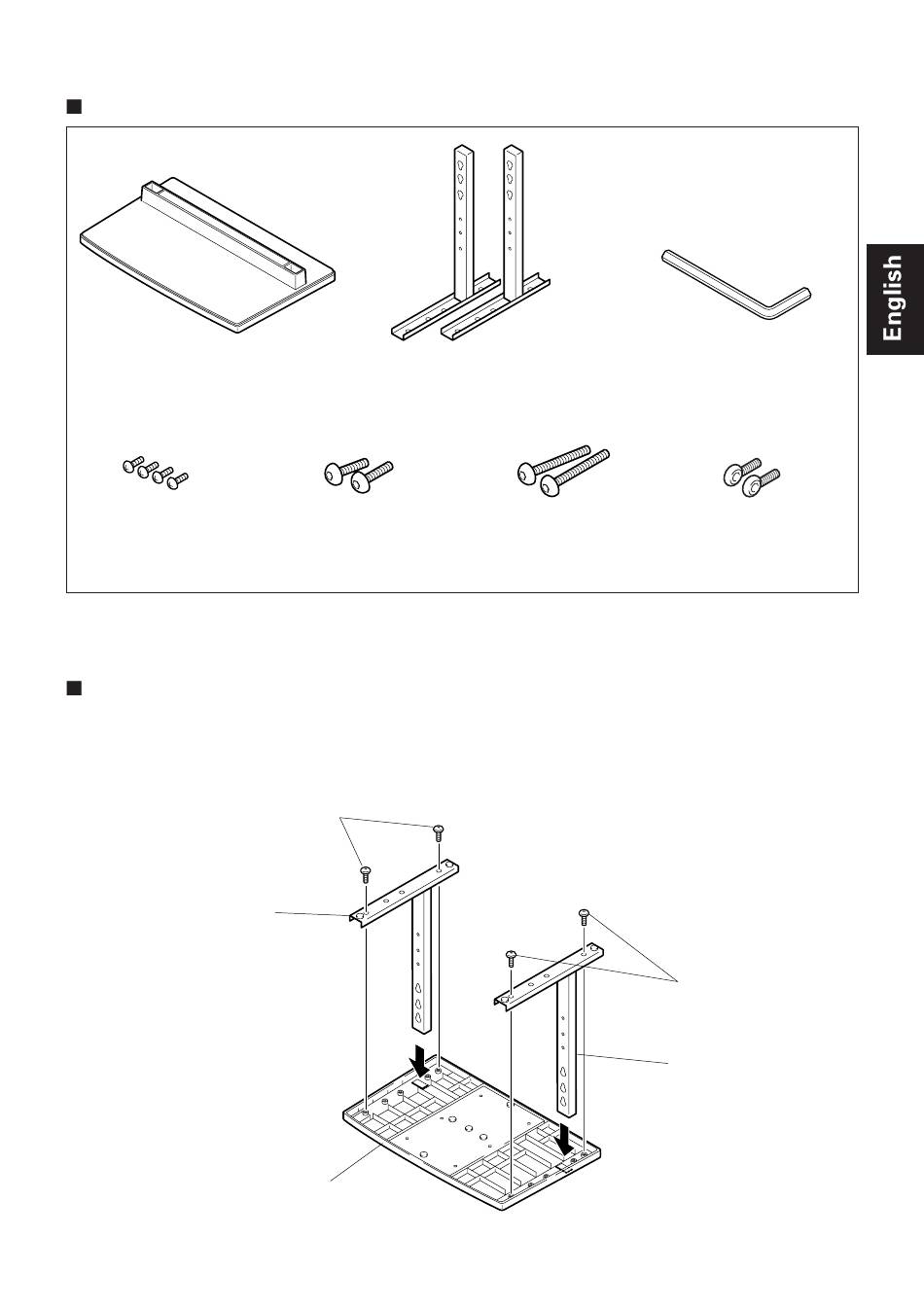

1. Stand assembling
Assembling Steps
1. Turn the base cover over so the underside is facing up.
2. Insert the stand pipes into the base cover.
3. Use the included screws to stabilize the stand pipes.
Stand pipe
• Stand pipes
(left and right, interchangable) .... 2
• Installation bolts 1
...................... 2
(M8 x 20)
Screws (4 x 8)
Base cover
• Installation bolts 2
........................ 2
(M8 x 40)
• Hexagonal wrench
................................ 1
• Stabilization bolts
................................ 2
Screws (4 x 8)
Stand pipe
