personal injury.
13. Check the wheel carefully for cracks or
damage before operation. Replace cracked or
damaged wheel immediately.
14. Use only flanges specified for this tool.
15. Be careful not to damage the spindle, flanges
(especially the installing surface) or bolt.
Damage to these parts could result in wheel
breakage.
16. Make sure the wheel is not contacting the
workpiece before the switch is turned on. Wait
until the wheel attains full speed before
cutting.
17. Stop operation immediately if you notice
anything abnormal.
18. Never attempt to cut with the tool held upside
down in a vise. This can lead to serious
accidents, because it is extremely dangerous.
19. Do not stop the wheel by lateral pressure on
the disc.
20. Some material contains chemicals which may
be toxic. Take caution to prevent dust
inhalation and skin contact. Follow material
supplier safety data.
21. The tool must be used only for dry cutting. DO
NOT use water.
SAVE THESE INSTRUCTIONS.
WARNING:
MISUSE or failure to follow the safety rules stated in
this instruction manual may cause serious personal
injury.
Symbols
The followings show the symbols used for tool.
･
volts
･
amperes
･
hertz
･
alternating current
･
no load speed
･
Class II Construction
･
revolutions or reciprocation per minute

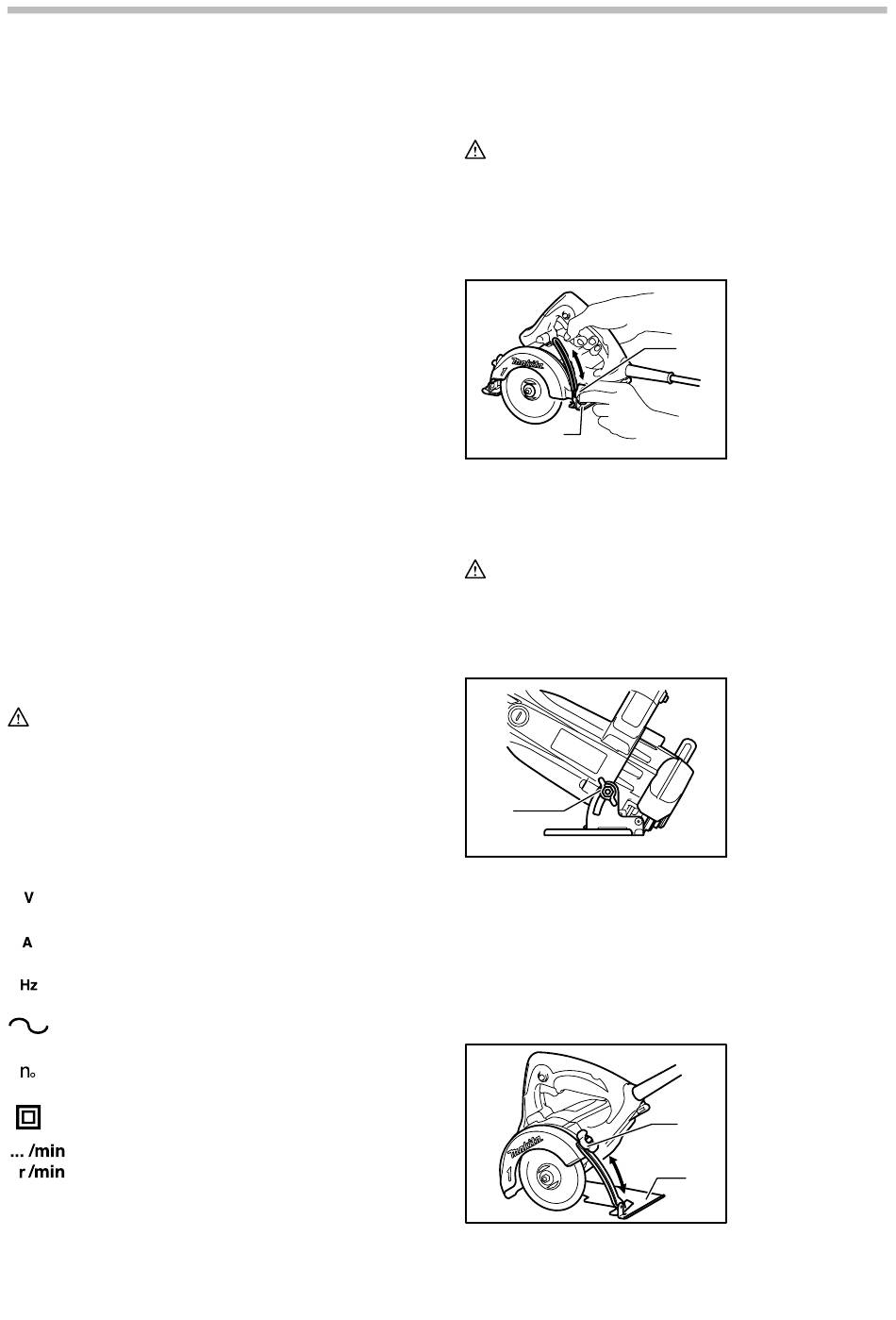

FUNCTIONAL DESCRIPTION

CAUTION:
Always be sure that the tool is switched off and
•
unplugged before adjusting or checking function on
the tool.
Adjusting the depth of cut
009555
Loosen the clamping nut on the depth guide and move
the base up or down. At the desired depth of cut, secure
the base by tightening the clamping nut.
CAUTION:
After adjusting the depth of cut, always tighten the
•
clamping nut securely.
Adjusting bevel angle
USD201-2
1
009567
Loosen the clamping nut on the bevel scale plate on the
front of the base. Set for the desired angle (0 - 45
degrees) by tilting accordingly, then tighten the clamping
nut with your hand securely.
Loosen the clamping nut on the depth guide and move
the base up or down. At the desired depth of cut, secure
the base by tightening the clamping nut.
009556
5
2
1
1
2
1. Base
2. Clamping nut
1. Clamping nut
1. Clamping nut
2. Base
