R 17
2 2

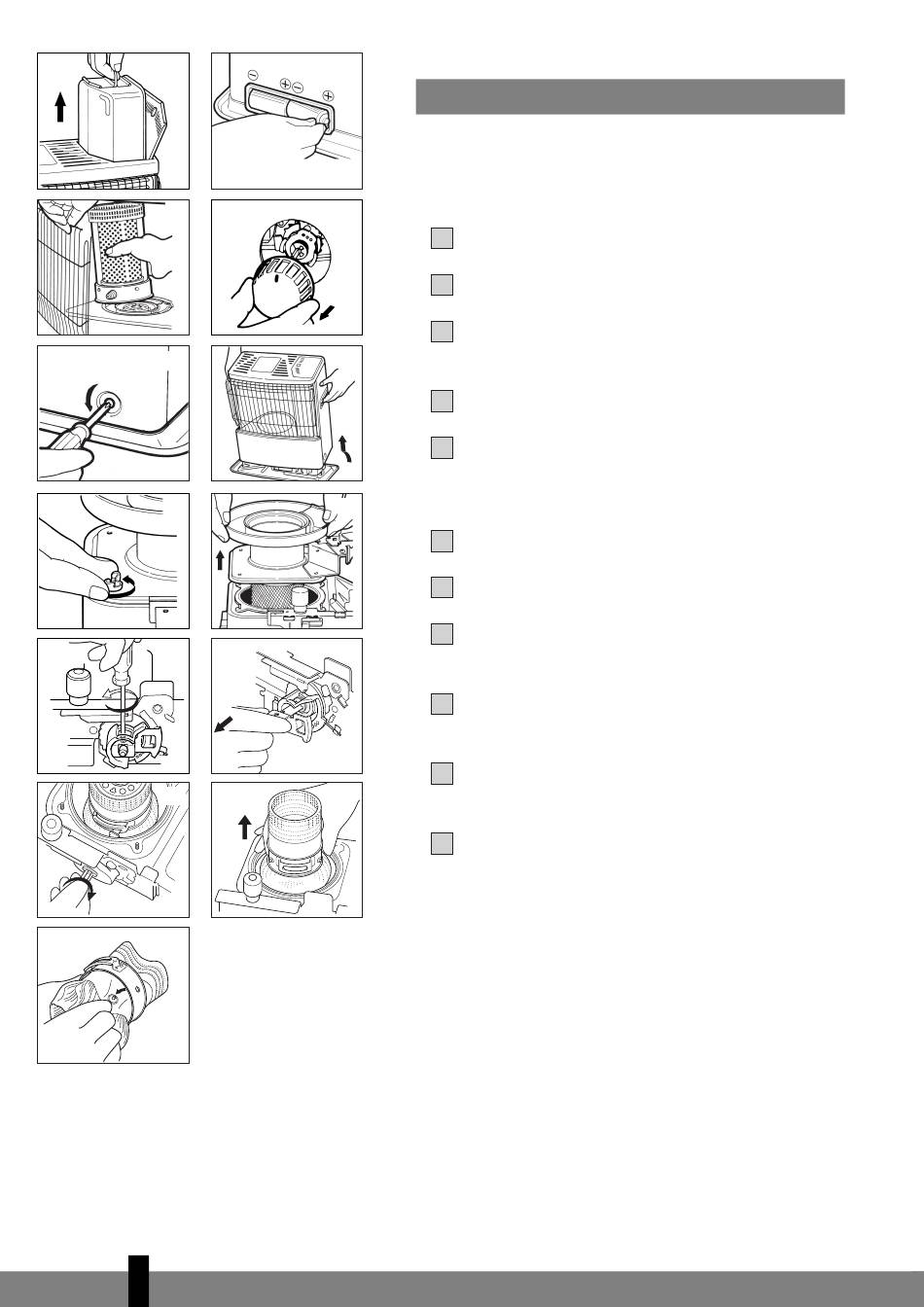

REPLACEMENT OF THE WICK
M
ENSURE THAT THE HEATER IS OFF AND COMPLETELY
COOL BEFORE STARTING TO REPLACE THE WICK.
4 4
Open the lid and remove the removable tank.
1
Remove the batteries from the battery holder.
2
Open the front grill. Remove the combustion chamber
3
from the heater. Close the grill.
5 5 b b
4 Pull the knurled wick adjustment knob off the heater.
5 Unscrew the three cabinet screws on the back and sides
of the heater. Pull the cabinet forward slightly, and then
remove it from the base plate.
7 7
Unscrew the four wing nuts from the wick holder.
6
Lift up the wick holder and the wick mechanism.
7
Remove the screw on the stem holding the bracket and
8
8 8 b b
remove the bracket, spring and wick height lock.
Turn right the stem to the end and remove the wick
9
sleeve (with wick).
10 Lift the wick sleeve up and remove it from the primary
air tube.
1 1 0 0
Squeeze the wick to loosen the three wick pins and
11
remove the wick from the wick sleeve. Ensure that you
are wearing gloves and that you have a container in
which to put the old wick.
