To replace the battery, remove it by pressing the release button (7) (Ref. to Fig. 1), then
insert the new battery, sliding it into the guides until it locks.
The display shows the operational parameters of the tool; to customise them proceed
as described in § 2.7.
Select the appropriate die set for the connector.
When introducing or changing dies, the battery must fi rst be removed from the tool.
Operate the tool to advance the ram (11) 15-20 mm (0.6 - 0.8 in.) so to easily press release
pin (14) (Ref. to Fig. 2) then remove the battery.
Keep release pin (14) depressed and insert one die into the seat on the ram until it is locked by
retaining pin (15).
Keep release pin (12) depressed and insert one die into the upper seat of the tool head until it
is locked by retaining pin (13) then insert the battery.
Insert the conductor into the connector (Ref. to Fig. 3).
Position the connector between the dies and ensure the correct location of the crimp
(Ref. to Fig. 4).

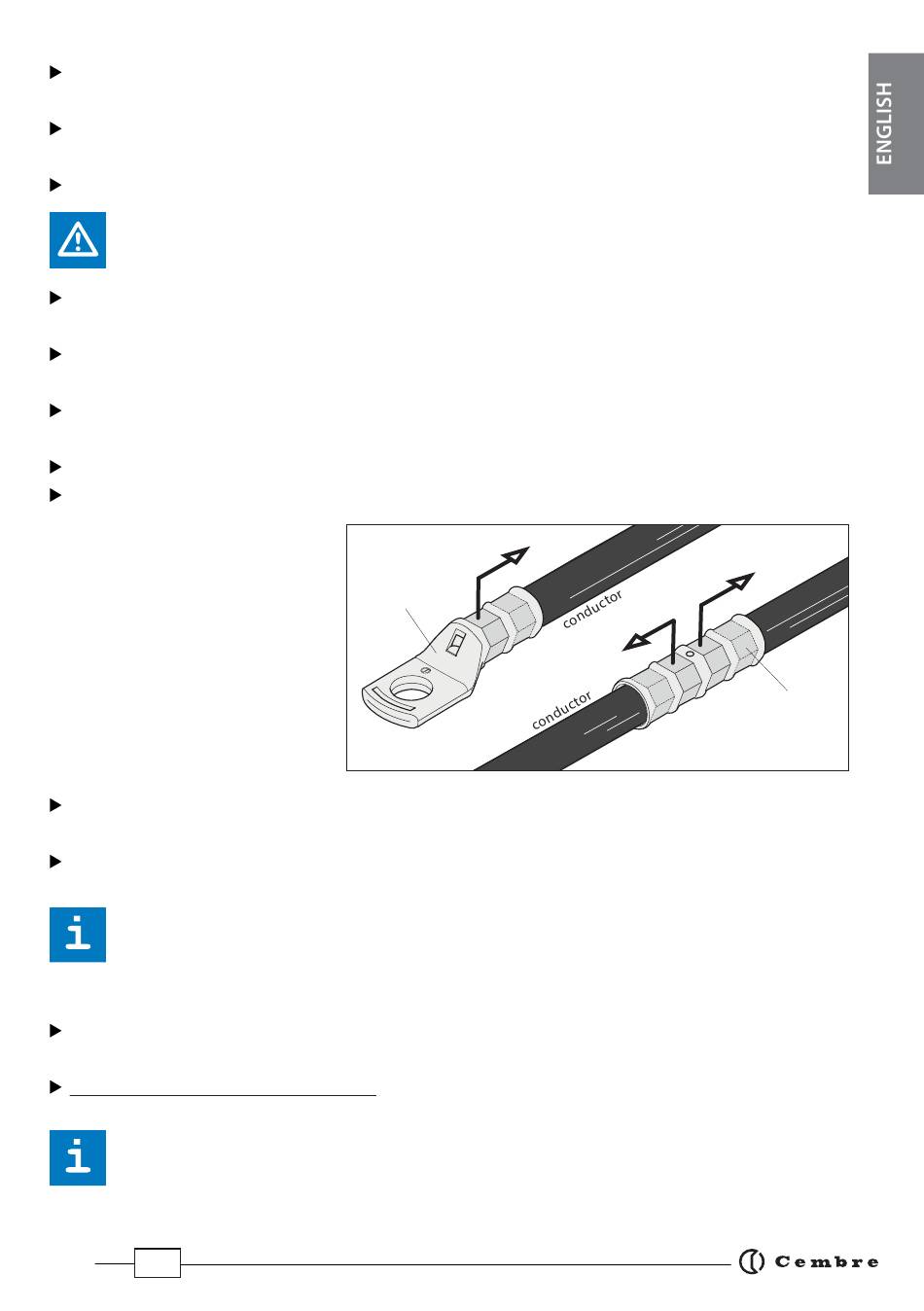

NOTE: when more compression
is required, proceed according
to the sequence and direction
indicated in the fi gure, uniform-
ly spacing the compressions.
2.2) Die advancement
Press operating button (4) (Ref. to Fig. 4) to activate the motor-pump and advance the
lower die.
To halt the advancement, release operating button (4) and the motor will cut out.
Make sure the dies are exactly positioned on the desired crimp point otherwise
re-open dies following instructions as per § 2.4 and reposition the connector.
2.3) Compression
By keeping operating button (4) pressed, the motor continues to operate: the ram will
gradually move forward until the two dies touch.
The motor will stop automatically when the set pressure has been reached.
To perform proper compression, press and hold the operating button (4) until the
motor stops automatically.
