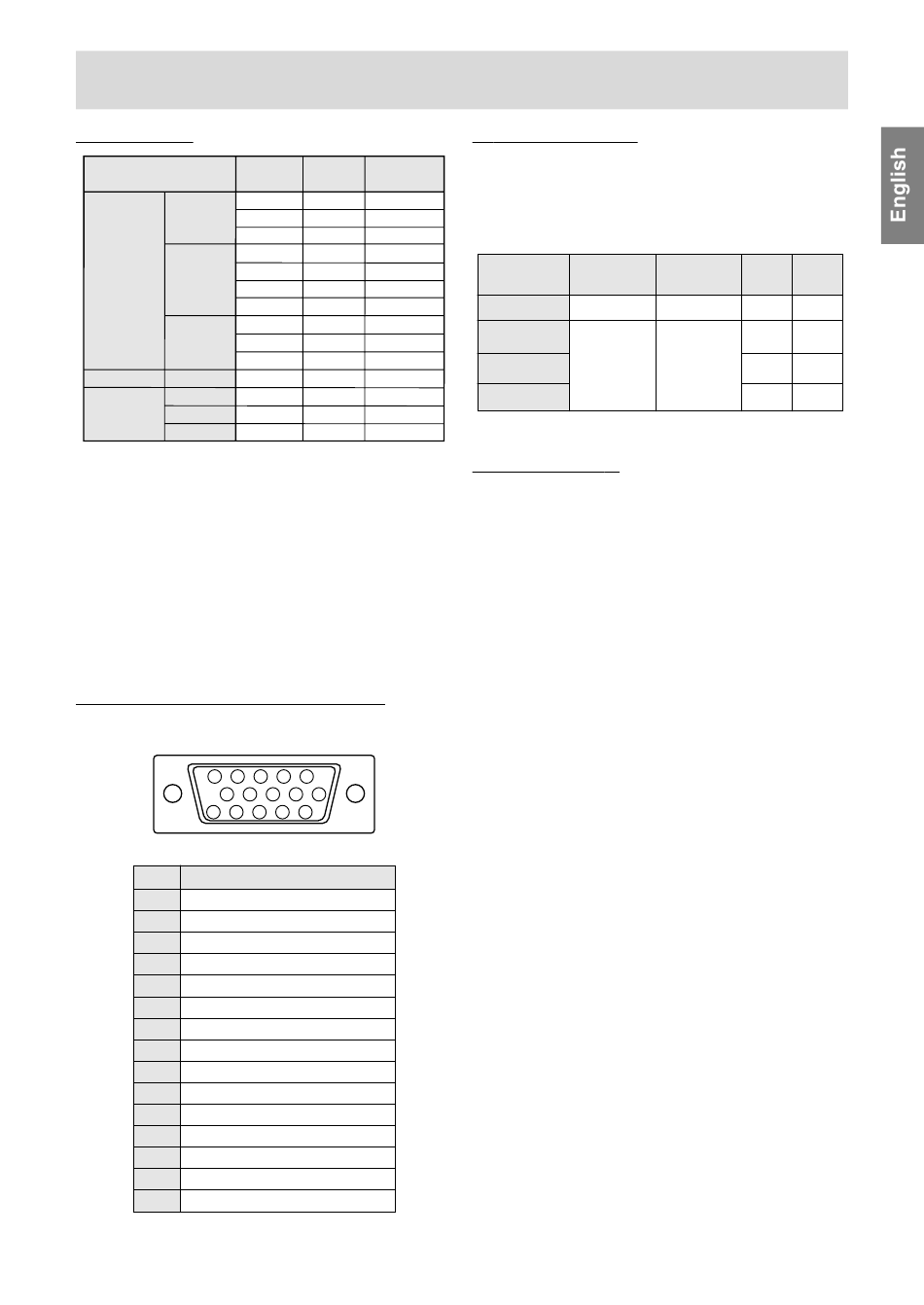

Signal timings
Display mode Hsync
640x480 31.5kHz
VESA
37.9kHz
37.5kHz
800x600 35.1kHz
37.9kHz
48.1kHz
46.9kHz
1024x768 48.4kHz
56.5kHz
60.0kHz
720x400 31.5kHz
US text
640x480 35.0kHz
Power
832x624 49.7kHz
Macintosh
series 1024x768 60.2kHz
- Recommended resolution is 1024 x 768.
- All are compliant only with non-interlaced.
- Frequencies for Power Macintosh are reference
values.
- If the monitor is receiving timing signals that are
not compatible, [OUT OF TIMING] will appear.
Follow your computer
'
the timing so that it is compatible with the
monitor.
- If the monitor is not receiving any signal (synch
signal), [NO SIGNAL] will appear.
The analog RGB input connector pin
(Mini D-sub connector with 15 pins)
5 4
10 9
15 14
No. Function
1 Red video signal input
2 Green video signal input
3 Blue video signal input
4 GND
5 GND
6 For red video signal GND
7 For green video signal GND
8 For blue video signal GND
9 +5V
10 GND
11 N.C.
12 DDC data
13 For Hsync signal input
14 For Vsync signal input
15 DDC clock
Specifications
Dot
Vsync
frequency
60Hz 25.175MHz
72Hz 31.5MHz
75Hz 31.5MHz
56Hz 36.0MHz
60Hz 40.0MHz
72Hz 50.0MHz
75Hz 49.5MHz
60Hz 65.0MHz
70Hz 75.0MHz
75Hz 78.75MHz
70Hz 28.3MHz
66.7Hz 30.2MHz
74.6Hz 57.3MHz
75Hz 80.0MHz
s instruction manual to set
3 2 1
8 7 6
13 12 11

Power management

The monitor is based on VESA DPMS (Display
Power Management Signaling).
To activate the monitor's Power Management
function, both the video card and the computer
must conform to the VESA DPMS standard.
DPMS mode Screen
ON Display on
STANDBY
SUSPEND Display off
OFF
DDC (Plug & Play)
This monitor supports the VESA DDC (Display
Data Channel) standard.
DDC is a signal standard for carrying out Plug &
Play functions on the monitor or PC. It transfers
information such as degree of resolution between
the monitor and PC. You can use this function if
your PC is DDC compliant and if it is set so that it
can detect the Plug & Play monitor.
There are many varieties of DDC due to the
differences between systems. This monitor works
with DDC1 and DDC2B.
23
Power H-sync V-sync
consumption
36 W Yes Yes
No Yes
2 W Yes No
No No
