Faber GLASSY IS 36 Instructions D'installation page 10

NOTE: The chimney structure can reduce down to a 27 " minimum height. To reduce the height,
the middle section of the support structure needs to be removed.
Out of the box, the minimum chimney length is 32 ".
5
Insure the the installation process outlined in the U&C is followed and there is sufficient stability with the

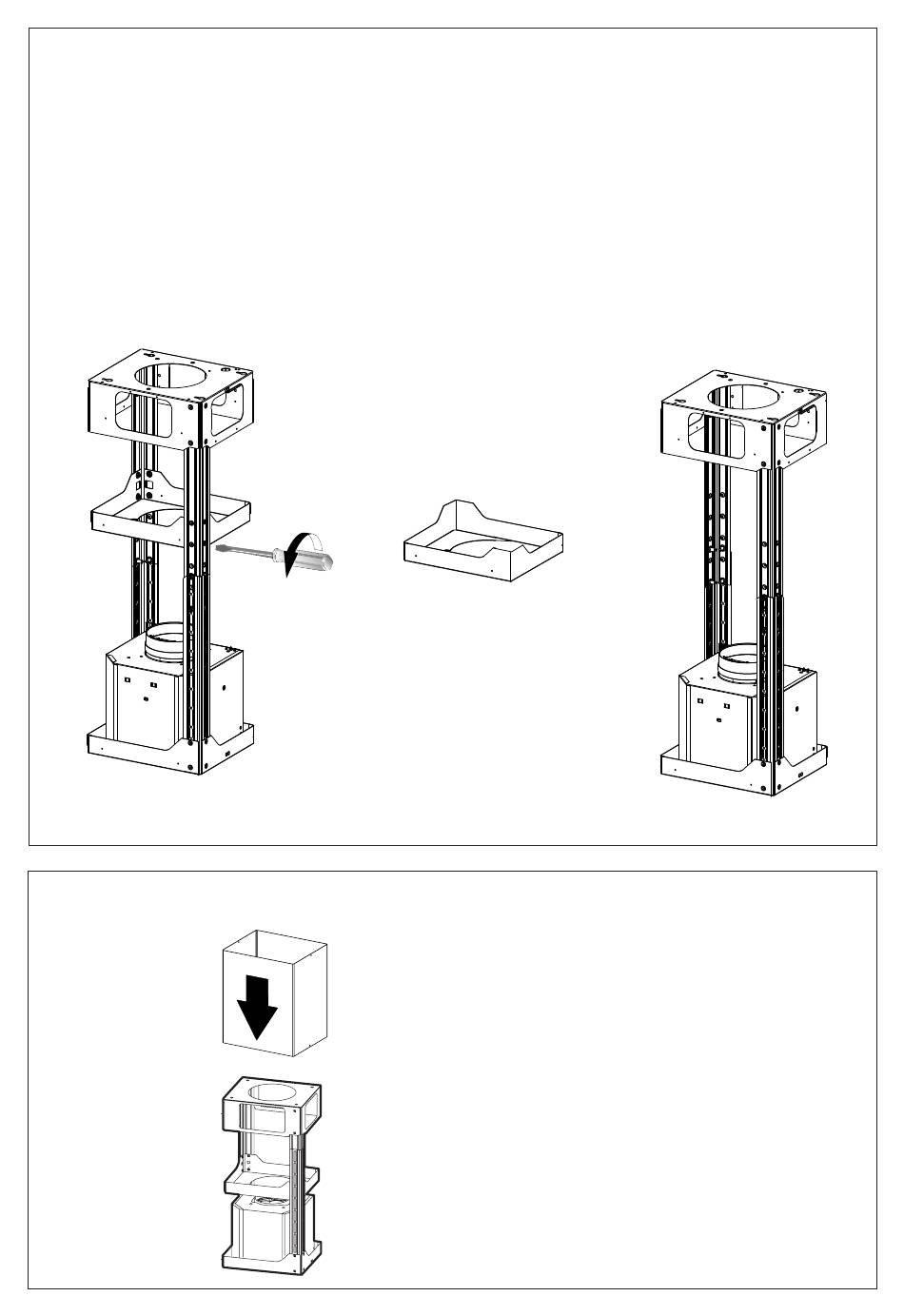

REMOVING THE MIDDLE TRESTLE COMPONENT
middle section removed.
NOTE: The chimney structure can reduce down to a 27 " minimum height. To reduce the height,
the middle section of the support structure needs to be removed.
Out of the box, the minimum chimney length is 32 ".
Insure the the installation process outlined in the U&C is followed and there is sufficient stability with the
middle section removed.
6
21
22
7.1a
12g
7.1
7.1b
12c
2.1
Upper Flue Must Be In Place Before Proceeding
23
11
After the regulation for height adjustment, insert
the upper chimney stack from above, and leave it
12h
running free on the frame.
9.1
9
25
10
