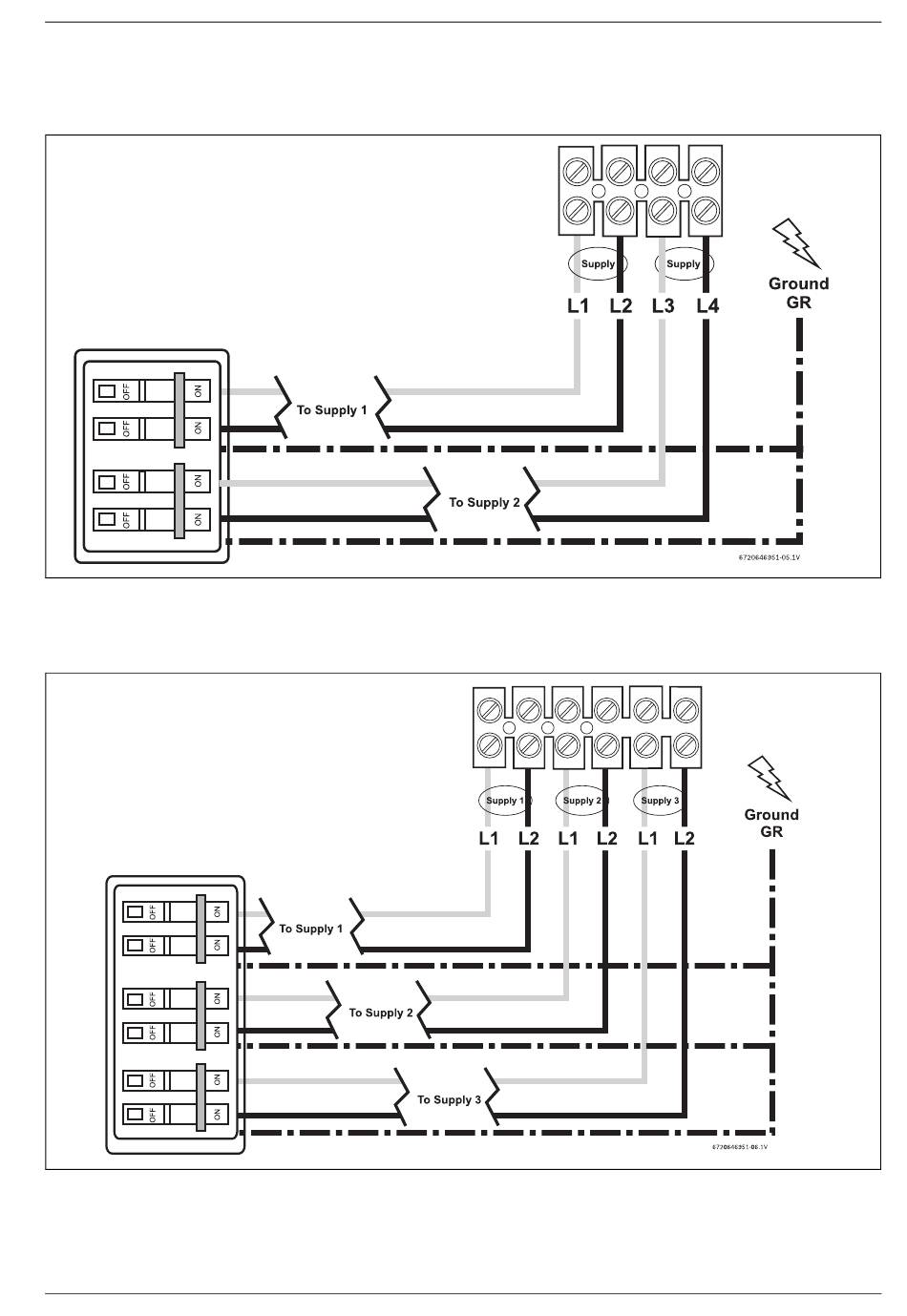

The AE115 requires two independent 240V AC circuits protected by two separate and independent double pole
breakers (as shown) rated at 40A each.
Fig. 7
AE115 terminal block connection (U.S.A. only)
The AE125 requires three independent 240V AC circuits protected by three separate and independent double pole
breakers (as shown) rated at 40A each.
Fig. 8
AE125 terminal block connection (U.S.A. only)
6 720 800 414 (2011/09)
Installation
15
