Horizontal Ducting Conversion

These steps below convert 6" round vertical ducting to horizontal ducting. If you plan on having
vertical ducting, please skip these steps.
Pisa Use, Care, and Installation Guide
Installation Instructions

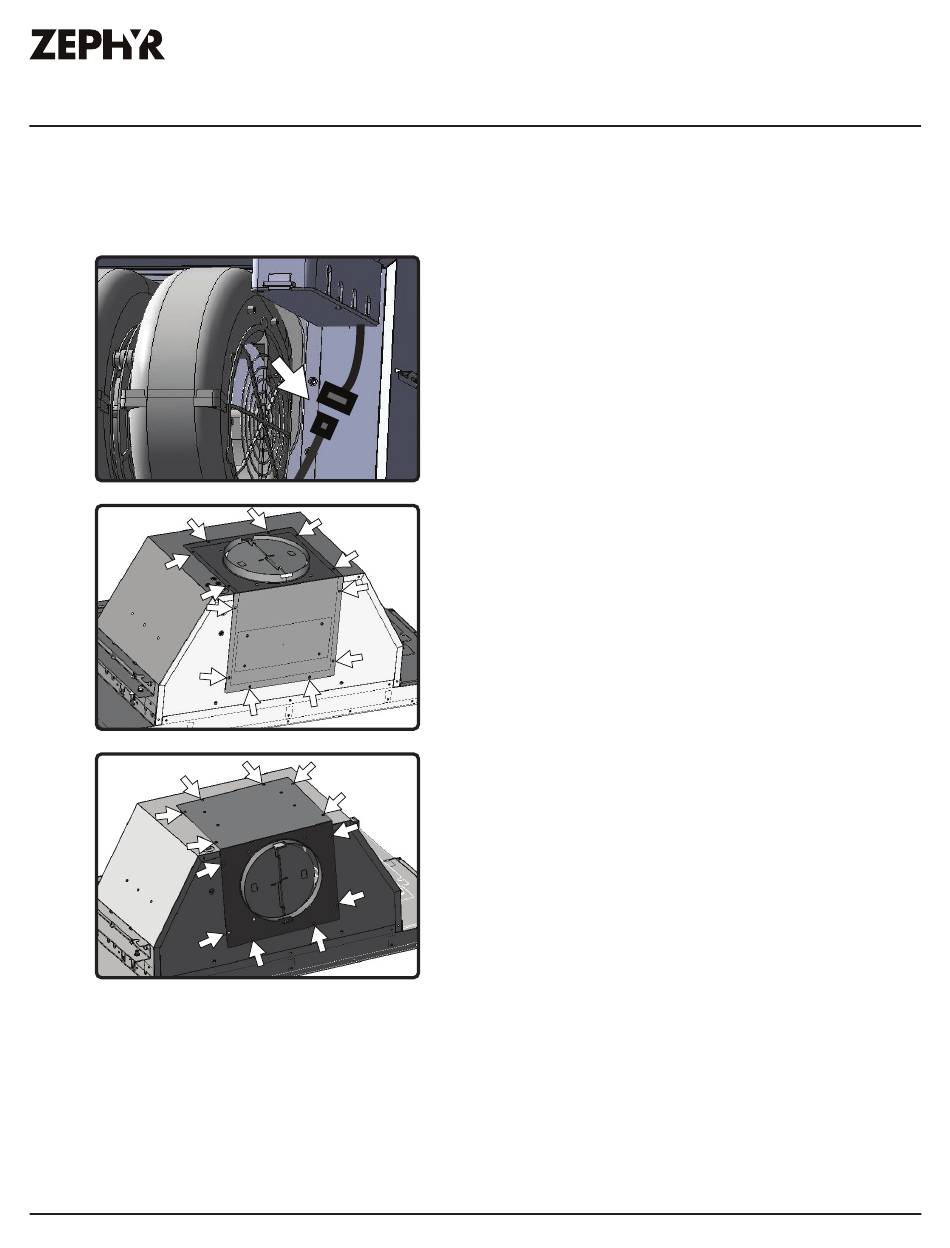

1. Remove aluminum mesh filter. From
inside the hood, disconnect blower plug
located toward the right side interior of
hood body.
2. Remove (6) screws from top of hood and
(6) screws from back of hood attaching
blower plate to hood body.
3. Remove blower and blower plate from
hood body and reposition blower to
hood body so blower collar protrudes
from back of hood body. Re-install
blower plate to hood body using the (12)
screws previously removed from step 2.
Re-connect blower plug.
15
