Assembly

Inserting and removing the battery pack
To insert or remove the battery pack in/from the eBike,
please read and follow the battery pack operating instruc-
tions.
Inserting and removing the on-board computer
4
3 On-board computer
4 Holder for on-board computer
15 Lock latch for on-board computer
16 Locking screw for on-board computer

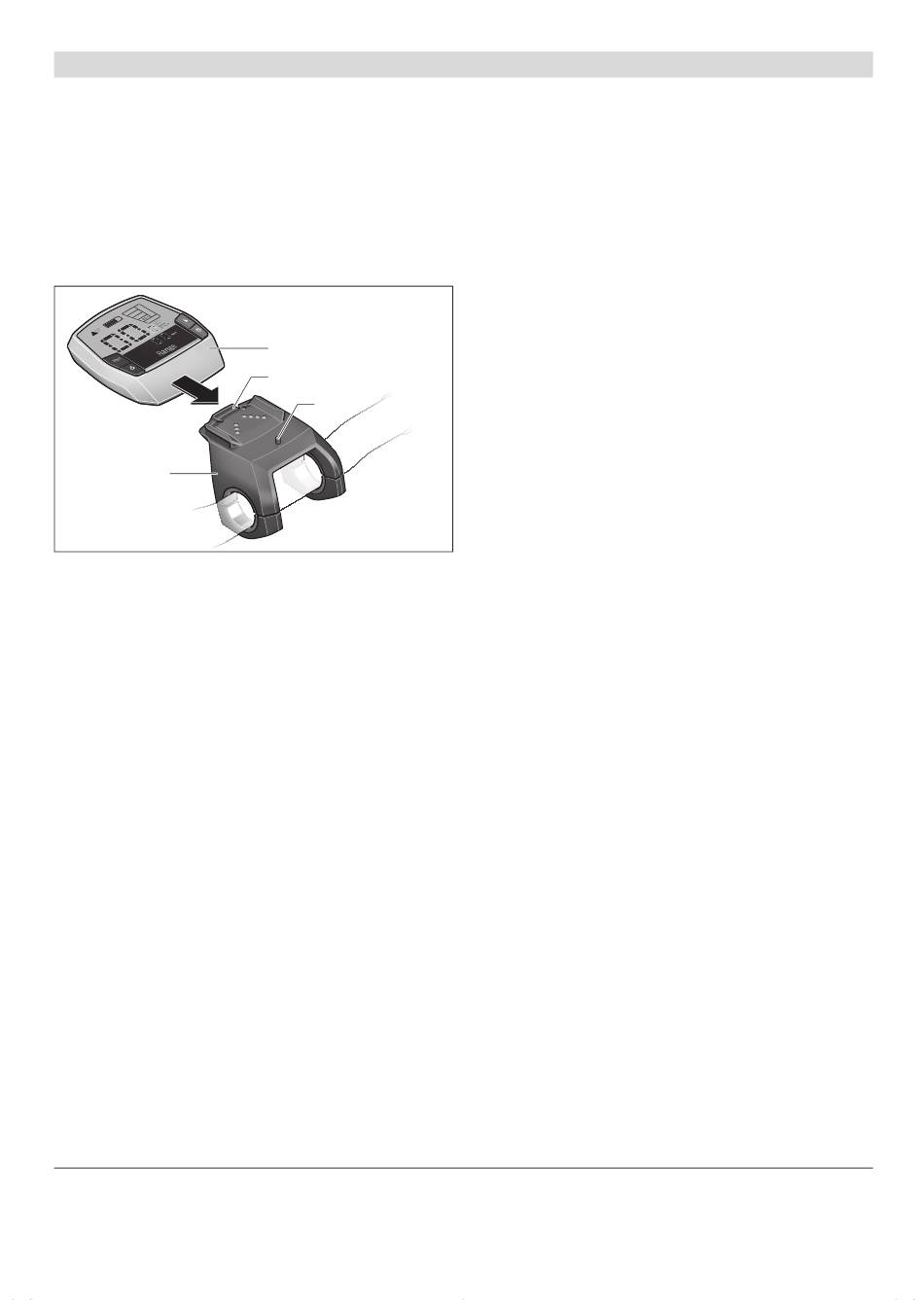

To insert the on-board computer 3, slide it from the front
into the holder 4.
To remove the on-board computer 3, press the lock latch
15 and slide the on-board computer toward the front out of
the holder 4.
 Remove the on-board computer when you park the
eBike.
It is possible to secure the display unit against removal in
the holder. To do so, remove the holder 4 from the handle-
bar. Put the display unit in the holder. Screw the locking
screw 16 (thread M3, 8 mm long) from below into the
thread provided in the holder. Attach the holder back onto
the handlebar.
Note: The locking screw is not designed to prevent theft.
1 270 U20 XBI | (25.4.17)
3
15
16

Operation

Requirements
The eBike system can only be activated when the following
requirements are met:
– A sufficiently charged battery pack is inserted (see the
operating instructions for the battery pack).
– The on-board computer is properly inserted into the
holder.
– The on-board computer is properly connected.
Initial Operation
Switching the eBike System On/Off
Options for switching on the eBike system:
– If the on-board computer is already switched on when
inserted into the holder, then the eBike system will be
switched on automatically.
– When the on-board computer and the eBike battery
pack are inserted, briefly press the On/Off button 5 of
the on-board computer once.
– With the on-board computer inserted, push the On/Off
button on the eBike battery (bicycle manufacturer solu-
tions are possible whereby there is no access to the
battery On/Off button; see the battery operating in-
structions).
Once it is switched on, the eBike system is in the "OFF"
mode. Select the desired assistance level and take off.
The drive is activated as soon as you put pressure on the
pedals. The assistance level depends upon the on-board
computer settings.
As soon as you stop pedaling when in normal operation, or
as soon as you have reached a speed of 20 mph, the assis-
tance from the eBike drive unit is switched off. The motor
assistance is automatically re-activated as soon you start
pedaling again and the speed is below 20 mph.
