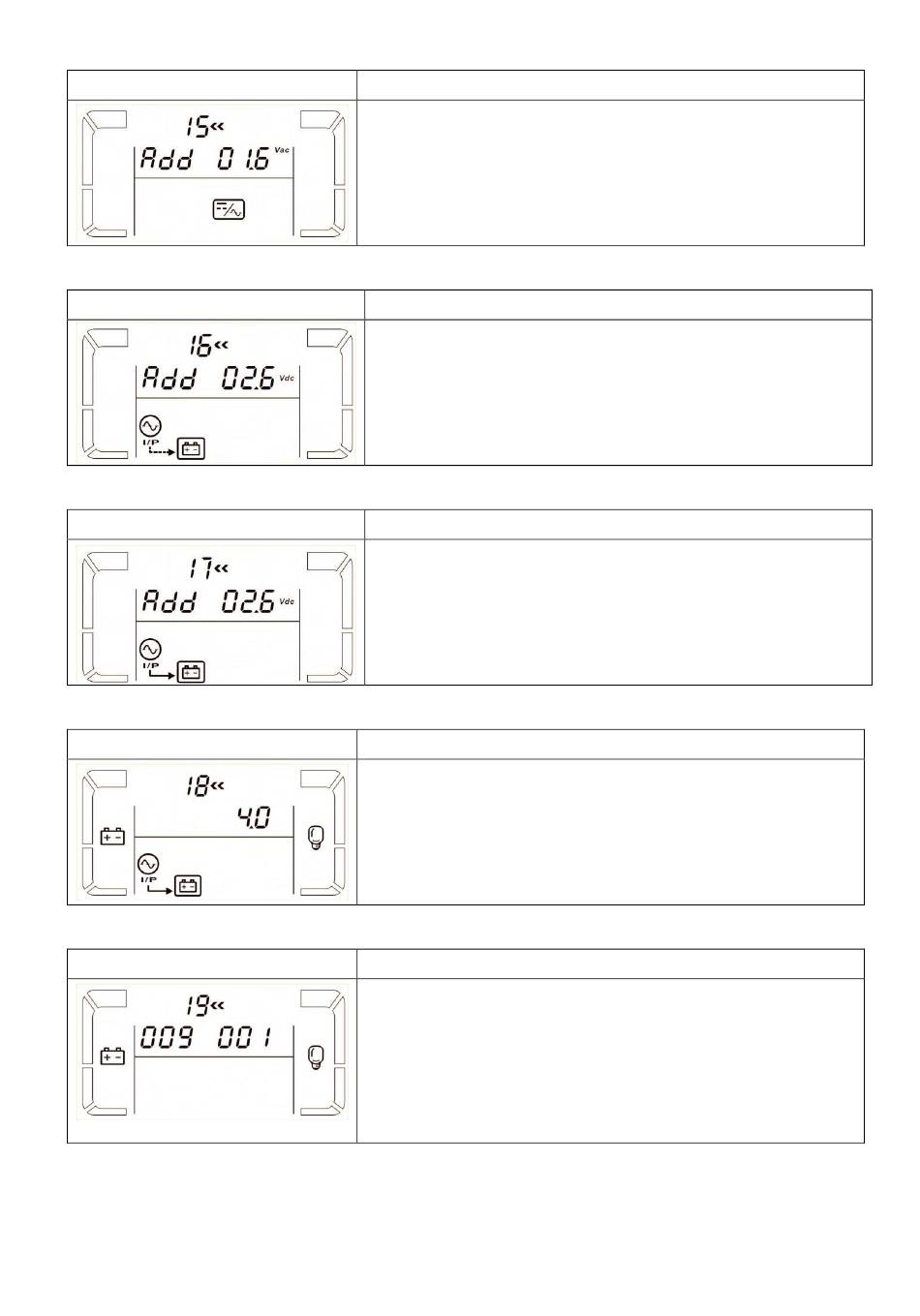

15: Inverter voltage calibration
⚫
Interface
16: Floating charger voltage adjustment
⚫
Interface
17: Constant charger voltage adjustment
⚫
Interface
18: Maximum charger current setting
⚫
Interface
19: Battery capacity and groups setting
⚫
Interface
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
45
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 10 19 AA 59 204 31
Setting
Parameter 2: you may choose Add or Sub to calibrate inverter
voltage
Parameter 3: The voltage setting range is from 0V to 6.4V. The
default value is 0V.
Setting
Parameter 2: you may choose Add or Sub to adjust floating
charger voltage.
Parameter 3: the voltage range is from 0V to 8V, the default
value is 0V.
Setting
Parameter 2: you may choose Add or Sub to adjust constant
charger voltage.
Parameter 3: the voltage range is from 0V to 4V, the default
value is 0V.
Setting
Parameter 3:
The maximum charging current could be adjusted.
Default value is 1A.
The available options are 1A, 2A, 4A and 6A.
6A is only available for the UPS with 16 pieces of batteries.
Setting
Parameter 2:
Set the battery capacity such as 7AH, 9AH, 10AH, 12AH, 17AH,
26AH, 40AH, 65AH, 100AH and so on.
The default value is 9AH.
Parameter 3:
Set battery group range from 1 to 6.
The default value is 1 group.
These parameters are for the battery backup time calculation.
