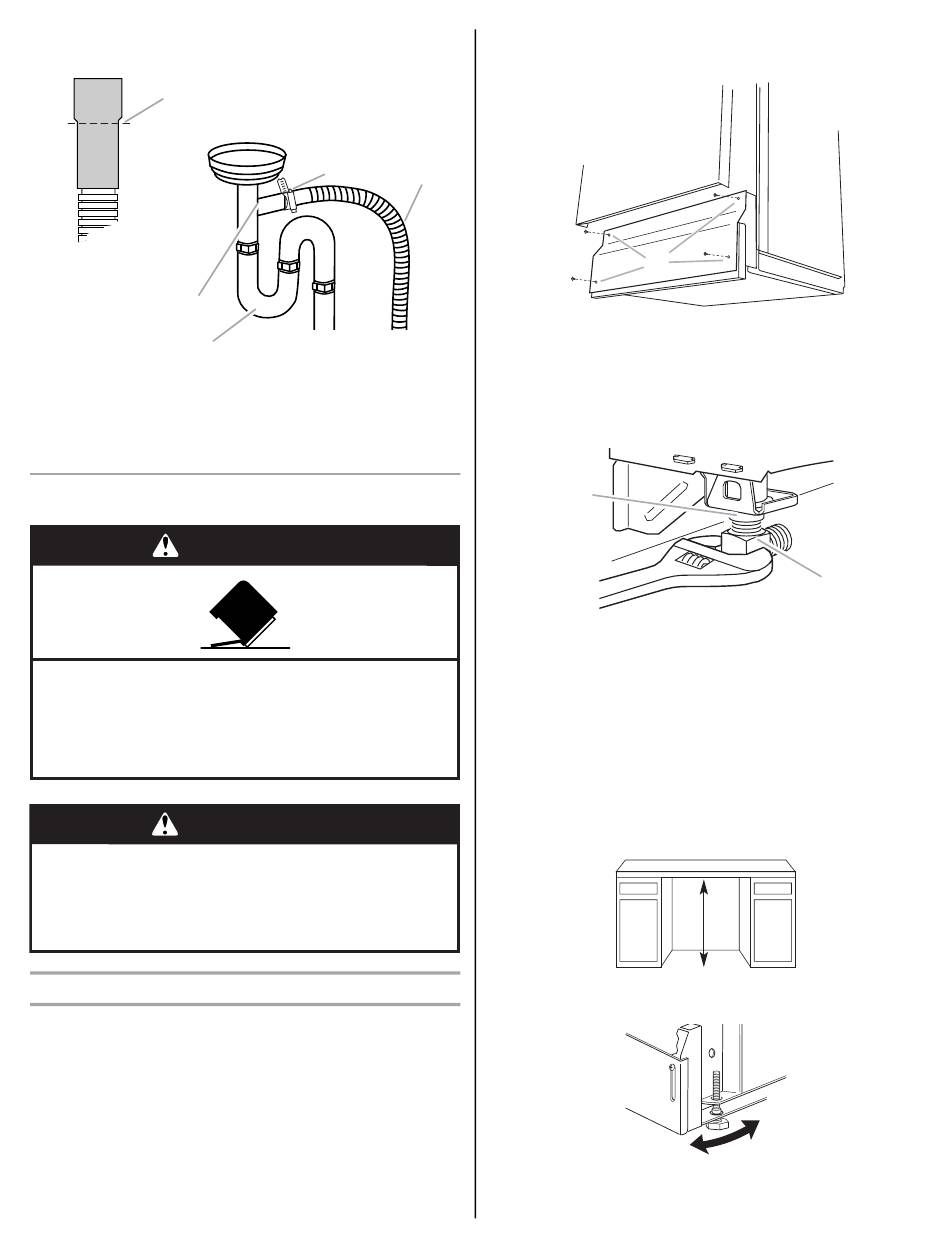

Install Dishwasher - Whirlpool GU3100XTVB Instructions D'installation

NOTE: It is recommended that the drain hose be looped up
and securely fastened to the underside of the counter.
A
E
D
A. Drain hose—cut here, if needed
B. Screw-type clamp
C. Drain hose

Install Dishwasher

WARNING
Tip Over Hazard
Do not use dishwasher until completely installed.
Do not push down on open door.
Doing so can result in serious injury or cuts.
WARNING
Excessive Weight Hazard
Use two or more people to move and install
dishwasher.
Failure to do so can result in back or other injury.
Prepare Dishwasher for Installation
1. Using 2 or more people, place the dishwasher on its back on a
piece of cardboard.
B
C
D. Drain trap
E. Waste tee
2. Using a ¹⁄₄" hex socket, nut driver or Phillips screwdriver,
remove the 4 screws attaching the toekick panel and lower
panel to the dishwasher.
A
3. Remove both panels and set aside on a protected surface.
4. Apply thread seal tape to 90º elbow fitting and connect fitting
to water inlet valve.
5. Tighten elbow until snug.
NOTE: Elbow should face to the rear of the dishwasher.
A
A. Water inlet valve
B. Elbow
6. Remove terminal box cover.
■
Direct Wire—Install a U.L. listed/CSA certified clamp
connector to the terminal box. If using conduit, use a U.L.
listed/CSA certified conduit connector.
■ Power Supply Cord—Install a power supply cord kit that is
U.L. listed and marked for use with dishwashers (Part
Number 4317824).
7. Measure the shortest opening height between the underside
of the countertop and the floor where the dishwasher will be
installed.
8. Extend leveling legs out from the dishwasher base, ¹⁄₄" less
than the shortest opening height.
A. Leveling leg
A. Screws
B
A
11
